Water valve piping arrangement, For two-way valve, For three-way valve – Mammoth 800 to 5500 CFM: Dedicated Outdoor Air System with Enthalpy Wheels (VHC) User Manual

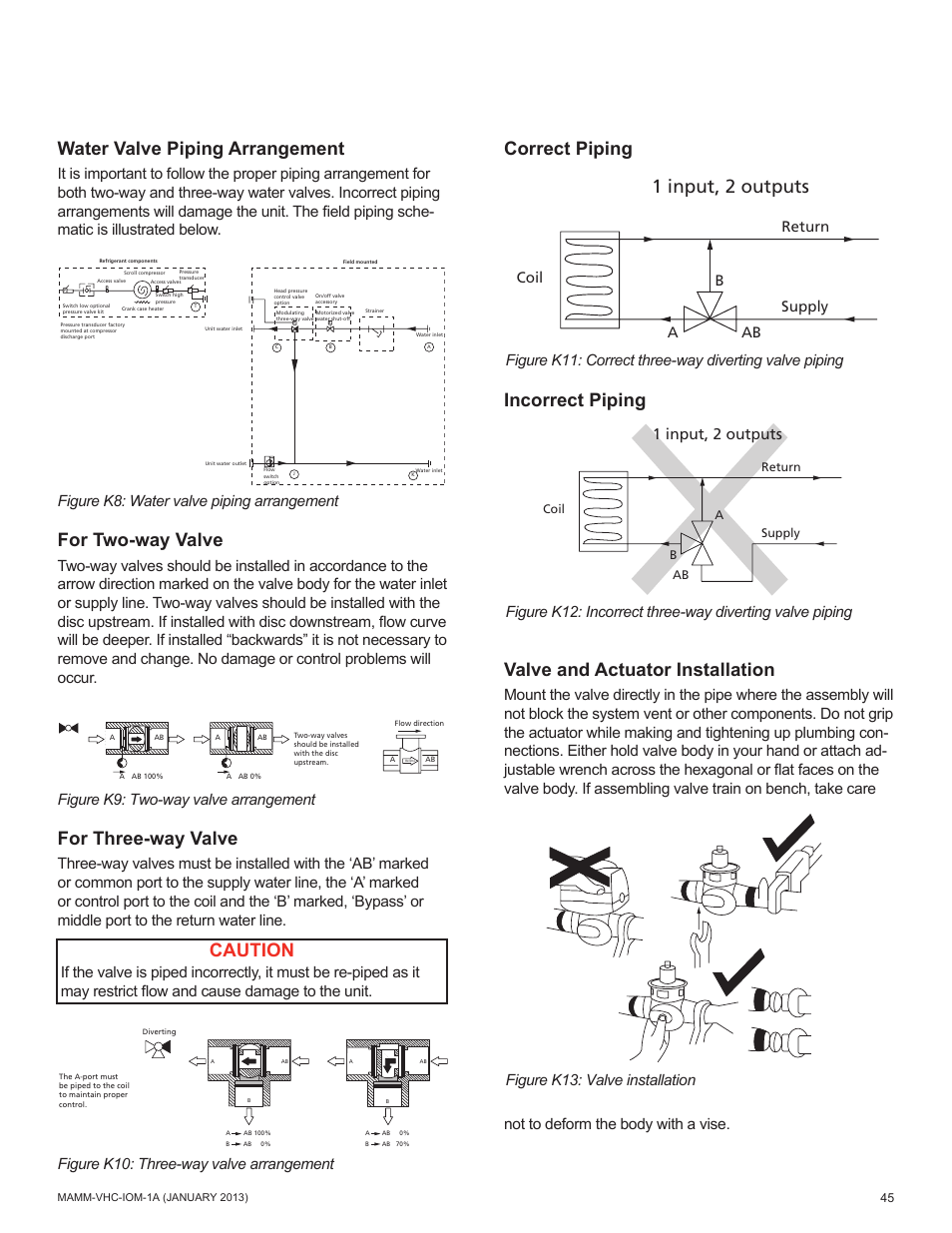

Page 45: 1 input, 2 outputs, Caution, Figure k8: water valve piping arrangement, Figure k9: two-way valve arrangement, Figure k10: three-way valve arrangement
Water valve piping arrangement, For two-way valve, For three-way valve | 1 input, 2 outputs, Caution, Figure k8: water valve piping arrangement, Figure k9: two-way valve arrangement, Figure k10: three-way valve arrangement | Mammoth 800 to 5500 CFM: Dedicated Outdoor Air System with Enthalpy Wheels (VHC) User Manual | Page 45 / 48
