PS-3710A/PS-3711A Series Hardware Manual
1-6

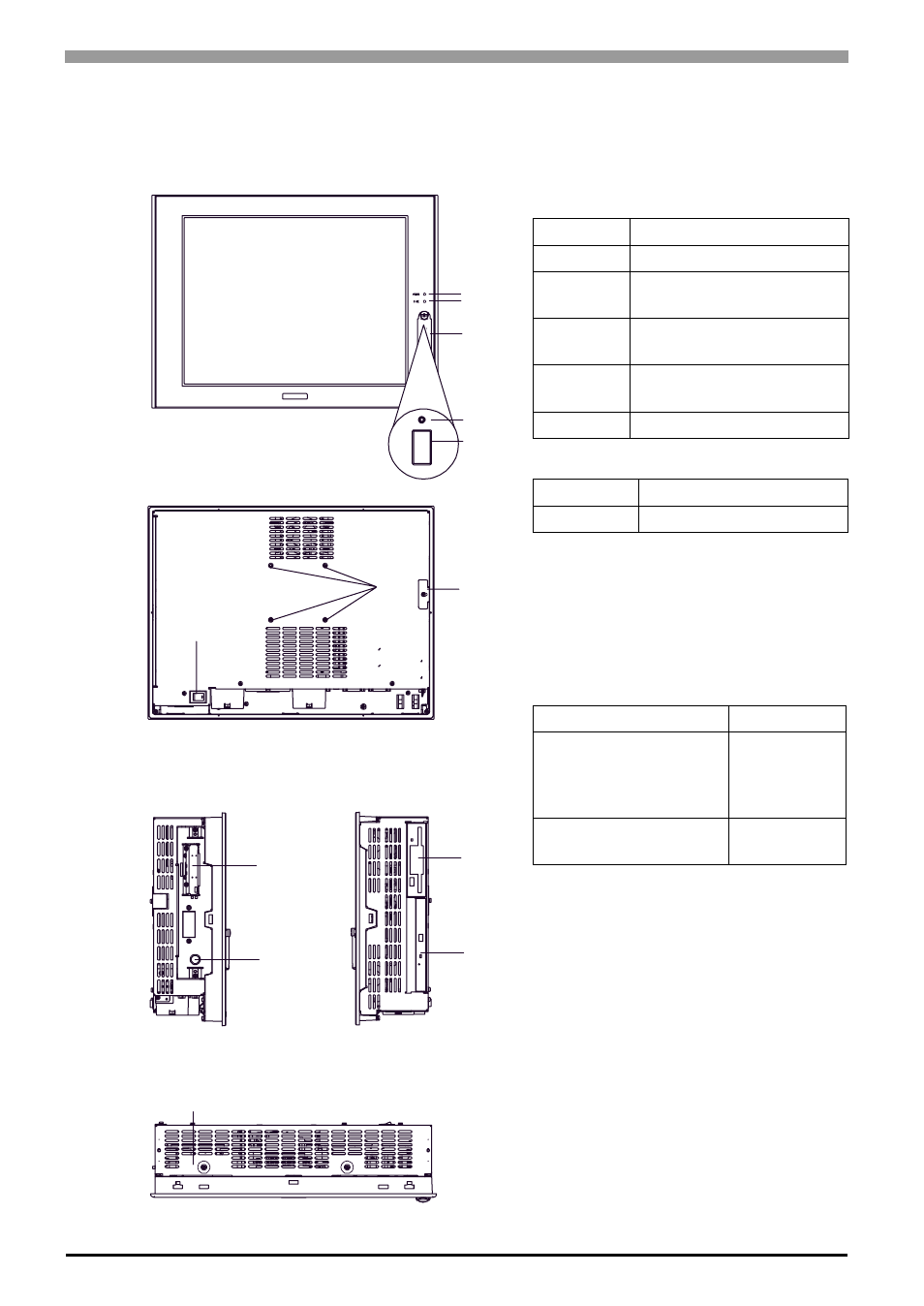

1.3 Part Names and Functions
1.3.1 PS-3710A Series
A: Power LED / RAS Status Lamp (POWER)
B: IDE Access Lamp
C: Front Cover
D: Hardware Reset Switch (RESET)
Used to restart PS-A.
E: USB Interface (USB)
1 port. USB 2.0 compatible.
Uses a “TYPE-A” connector.
F: Arm Insertion Hole Location
VESA 75mm
G: Power Switch
AC Power Supply type only (PS3710A-T41)
H: Expansion Board Support
I: FDD Drive
J: DVD-ROM Drive
K: PCMCIA Interface (PCMCIA)
2 ports. PCMCIA Type II, Type III can be available.
Corresponding to CARD BUS (Excluding VIDEO
ZOOM, SOUND functions)
L: PS/2 Keyboard Interface (KEYBOARD)
A mini DIN 6 pin (socket) is used.
M: Rear Cover
LED PS-A Status
Green (lit) Normal Operation (power is on)
Green
(blinking)
Soft OFF state
Orange (lit)
System Monitor Error
Touch Panel Self Test Error
Orange/Red
(blinking)
Backlight burnout is detected
Not lit Power is OFF
LED PS-A Status
Green (lit) Currently using IDE I/F
Power supply voltage 5V DC ±5%
Output current
Each port:
500mA(max.),
5 ports total:
500mA(max.)
Maximum
communication distance
5m
Front
Rear
A
B
C
F
E
D
I
H
G
J
Right side Left Side
K
L
M
Top
