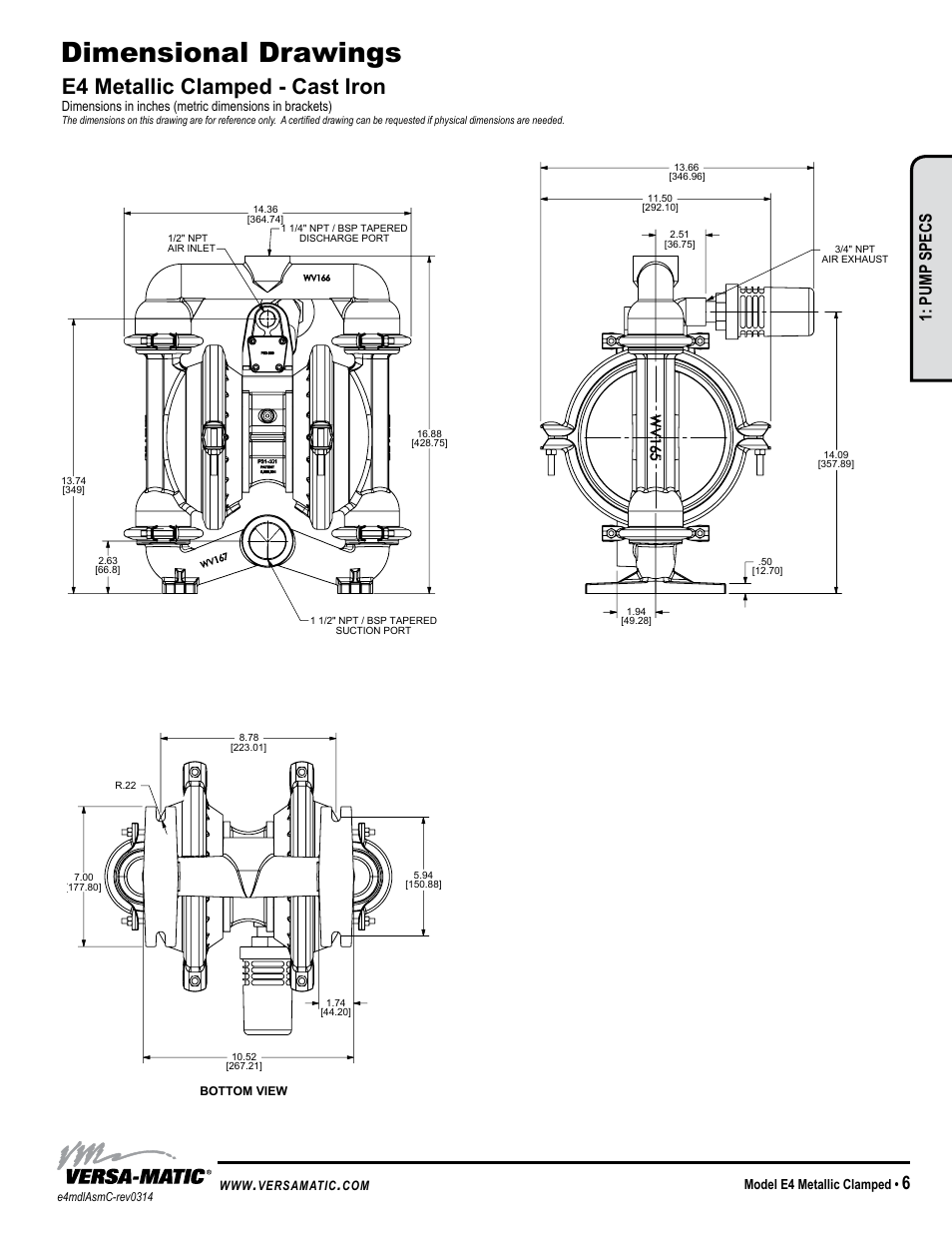

Dimensional drawings, E4 metallic clamped - cast iron, Pump specs – Versa-Matic 1 1/2 Elima-Matic Clamped Metallic (E4) User Manual
Page 9: Warren rupp inc, Model e4 metallic clamped, Versamatic
