Tip Selection and Exchange
The PP007-xx probe is supplied with two tip styles. The spring tip, which is
installed when the probe is shipped, combines a sharp point with on-axis
compliance. This provides reliable connection under a wide range of physical
interconnect situtations. A rigid tip is also supplied. While lacking the on-axis
compliance feature of the spring tip, the rigid tip has a larger diameter and is
more robust when exposed to physical stress at the tip. The user should select
the proper tip for their application needs.
To change the tip or replace it when damaged, carefully grip the outer most
portion of tip and pull straight out, along the axis of the probe, using needle
nose pliers. Do not attempt to grip the plastic insulator with pliers when
removing the tip, as this will squeeze the tip, which will make it difficult or
impossible to remove. Do not grip the outer gold plated tube which the tip
slides into. With the tip removed, align the replacement tip with the hole and
begin the insertion with the pliers. The tip may be fully seated by placing the
probe against a hard surface and gently applying pressure.

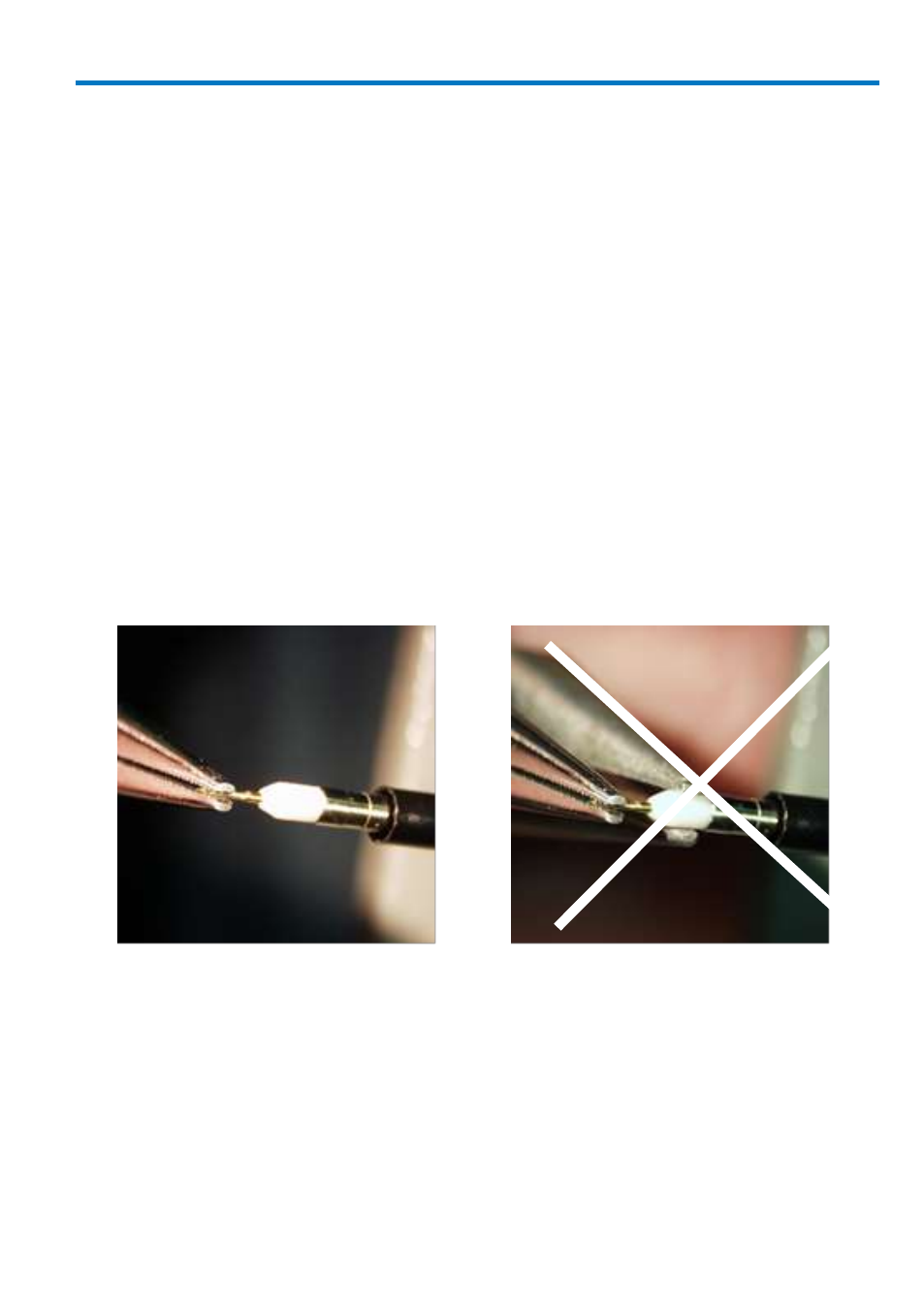

To remove tip, grip the spring-loaded
portion of the tip beyond the outer
sleeve and pull straight out.
Do not apply pliers to the plastic insulator.
