Reese 56010 OUTBOARD CUSTOM QUICK INSTALL KIT - Manual

© 2012, 2013 Cequent Performance Products, Inc.
Rev. A 56010N 6/24/13
Vehicle Forward
Installation Instructions
REESE ® CUSTOM QUICK INSTALL MOUNTING KIT
FOR 30153 REESE ® RAILS ONLY
2013 Dodge Ram 3500
Part Number:
56010
WARNING:
Under no circumstances do we recommend exceeding the towing vehicle manufacturers recommended vehicle towing capacity.
READ ALL INSTRUCTIONS BEFORE STARTING THE INSTALLATION
REESE ® Custom Quick Install mounting brackets only include the hardware to attach the custom brackets to the frame.
All Fasteners
Typical Both Sides
All of the
fasteners listed
to the left are
supplied with
this kit, all
other
mentioned
fasteners are
supplied with
part number
30153.
1
Equipment Required:
Fastener Kit: 56010F
Wrenches / Sockets: 3/4”, 15/16” & 10mm
Drill Bits: 1/8”, 9/16” & 1 1/4” Hole saw
Other Tools: Center Punch, Measuring Tape
& Reciprocating Saw (for 6’ bed)
1

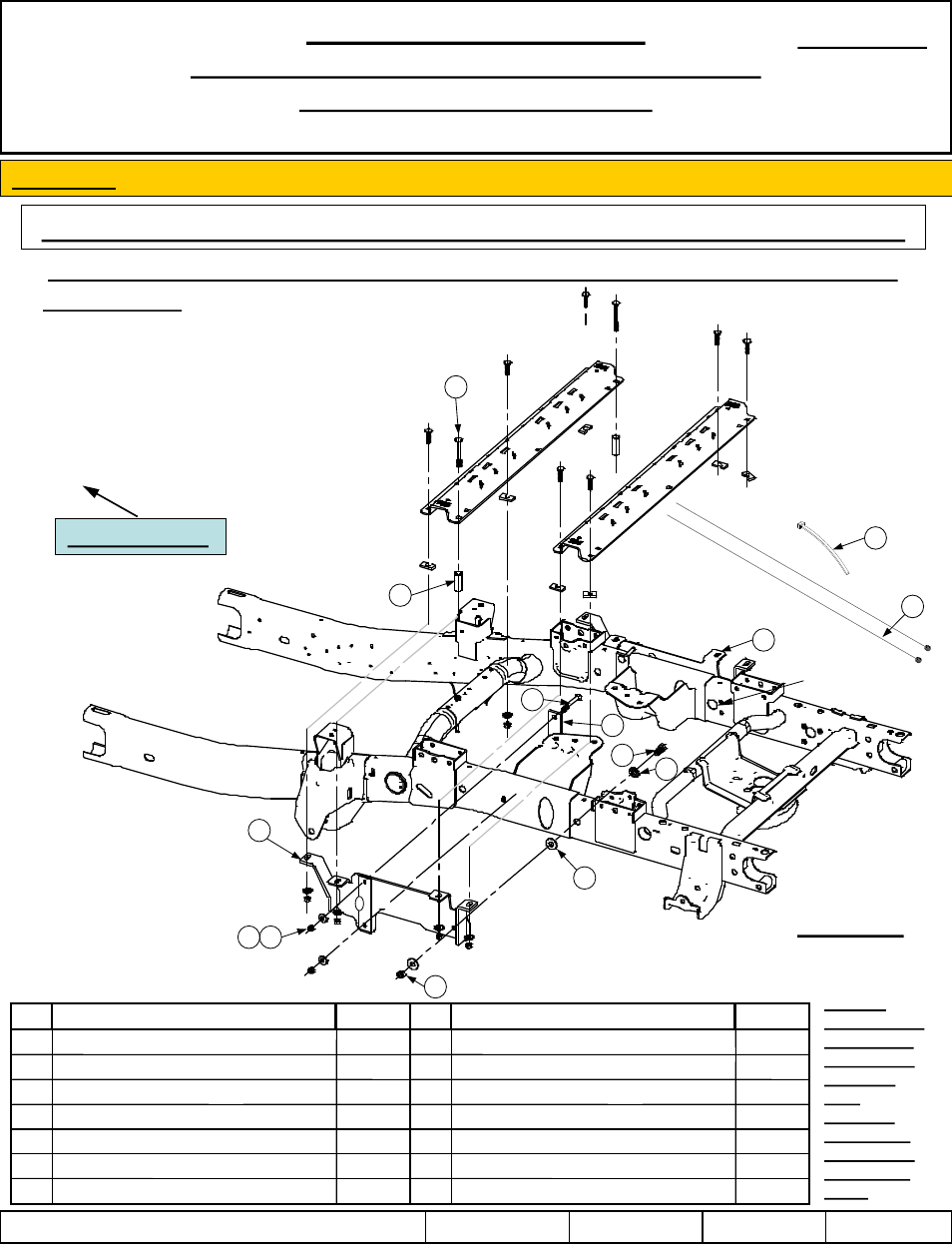

Figure 1
2
3
4 6
5
11
9
7
10
13
8
12
14
ACCESS HOLE
ITEM DESCRIPTION QUANTITY ITEM DESCRIPTION QUANTITY
1 STRAP 2 8 CABLE TIE 8.500" 1
2 DRIVER SIDE BRACKET 1 9 BUSHING 2.723" 2
3 PASSENGER SIDE BRACKET 1 10 BOLT, CARRIAGE 1/2"-13 X 5.500" GRADE 8 4
4 WASHER CONICAL 1/2" 4 11 WASHER, FLAT 5/8" 4
5 BOLT, CARRIAGE 1/2"-13 X 4.500" GRADE 8 2 12 WASHER CONICAL 5/8" 2
6 NUT, HEX 1/2"-13 GRADE 8 4 13 NUT, HEX 5/8"-11 GRADE 8 2
7 BOLT, 5/8"-11 X 1.75 GRADE 8 2 14 WIRE, PULL (5/8"-11) 2
