Power Amplifier (& Powered Subwoofer) Connections
115 V
+ -
OUTPUT
2-16 Ω
INPUT
47K Ω
CH
1
CAUTION:
DISCONNECT SUPPLY
CORD BEFORE
SERVICING.
ATTENTION:
DEBRANCHER AVANT
LE DEPANNAGE.
CAUTION! DO NOT SHORT OUTPUTS!
+ -
OUTPUT
2-16 Ω
INPUT
47K Ω
CH
2
+ -
OUTPUT
2-16 Ω
INPUT
47K Ω
CH
3
+ -
OUTPUT
2-16 Ω
INPUT
47K Ω
CH
4
+ -
OUTPUT
2-16 Ω
INPUT
47K Ω
CH
8
+ -
OUTPUT
2-16 Ω
INPUT
47K Ω
CH
7
+ -
OUTPUT
2-16 Ω
INPUT
47K Ω
CH
6
+ -
OUTPUT
2-16 Ω
INPUT
47K Ω
CH
5
1500W POWER
115 V~/60 Hz • 230 V~/50 Hz
REPLACE
WITH SAME
VALUE FUSE
10A S.B.~115V
5A S.B.~230V
VOLTAGE
SWITCH
230 V~
115 V~
PTM-8150
E IGHT C HANNEL P OWER A MPLIFIER
CAUTION
RISK OF ELECTRIC SHOCK DO NOT OPEN
ATTENTION!
RISQUE DE CHOC ELECTRIQUE. NE PAS OUVRIR
MADE IN U.S.A.
WARNING!
RISK OF HAZARDOUS
ENERGY!
MAKE PROPER SPEAKER
CONNECTIONS.
AVERTISSEMENT! ENERGIE
ELECTRIQUE DANGEREUSE! FAIRE
DES CONNEXIONS PROPRES POUR
L'HAUTPARLEUR. VOIR LA NOTICE
DE FONCTIONNEMENT.
S
R
8 6 7 5
EIC Male to
EIC Female
Power Cord
C L LS
RS
S
BL
S
BR
1
1
2
2
3
4
3
5
6
4
7
8
5
1
2
6
REC
OSD
7 8
L
R
L
R
L
R
L
R
AUDIO INPUTS
VIDEO INPUTS VIDEO OUT
1
2
3
4
DIGITAL AUDIO
INPUTS
AC INPUT
115V~60Hz/230V~50Hz
AC OUTPUT
10A~ Max Switched
ADA Bus¤
1 2 3 4
DATA PORT
Serial Data
12VDC OUT
100mA Max Per
DC 1
1- 2+ DC 2
1- 2+
WARNING!
Risk Of Hazardous Energy! Make Proper Connections. AVERTISSEMENT! Energie Electrique Dangereuse! Faire Des Connexions Propres
Pour L’Hautparleur. Voir La Notice De Fonctionnement. CAUTION: Disconnect Supply Cord Before Servicing.
ATTENTION: Debrancher Avant Le Depannage.
Use Same
Value Fuse
115V~1AS.B.
230V~.5AS.B.
Voltage
Selector &
Safety Fuse
On This
Side
115 V
115V 230V
1 2 3
OPTICAL INPUTS
MAIN 2 3 4 1
S-VIDEO INPUTS
8 CHANNEL DB-25 INPUT
REC
SBL LS
RS
L
R
C
SUB SBR
MAIN
4 G ND O UT I N 12V DC
L
R
RECORD
OUT
COMPONENT VIDEO
Y P B P R
Y P B/B-Y P R/R-Y Y P B/B-Y P R/R-Y
O UTPUT
1
2
3
1 13 25 14 PIN
POINTS
C INEMA R EFERENCE M ACH II
H OME T HEATER C ONTROLLER
CAUTION
RISK OF ELECTRIC SHOCK DO NOT OPEN
ATTENTION! RISQUE DE CHOC ELECTRIQUE. NE PAS OUVRIR MADE IN U.S.A.
ADA NET“
"Dolby", "Pro Logic", & the double-D Symbol are trademarks of Dolby Laboratories. All rights reserved.
Manufactured under license from Digital Theater Systems, Inc. US Pat. No. 5,451,942, 5,956,764, 5,974,380, 5,978,762 and other worldwide
patents issued and pending. "DTS", "DTS-ES Extended Surround", and "Neo 6" are trademarks of Digital Theater Systems, Inc. ' 1996,
2000 Digital Theater Systems, Inc. All rights reserved.
Manufactured under license from Lucasfilm Ltd. U.S. patent numbers 5,043,970; 5,189,703; and/or 5,222,059. European patent number
0323830. Other U.S. and foreign patents pending. Lucasfilm and THX are trademarks or registered trademarks of Lucasfilm Ltd. Surround
EX is a jointly developed technology of THX and Dolby Laboratories, Inc., and is a trademark of Dolby. Used under authorization.
2 3 4 1 PROCESSED VGA ONLY COMPOSITE & S-VIDEO
ARE UP-CONVERTED &
LINE-DOUBLED
115V~60Hz/230V~50Hz
VGASWITCHER
AC VOLTAGE
115V~2/10 A.S.B.
230V~1/10 A.S.B. VGA¥RGBHV¥HDTV INPUTS VGA¥RGB¥HDTV OUTPUT
+10dB
PIN +/- CHAN PIN +/- CHAN 1 / 14 LT 7 / 20 SBL 2 / 15 CT 8 / 21 SBR 3 / 16 RT 9 /10/22 SHLD 4 / 17 SB 11 / 23 R.T.A 5 / 18 SL 12 / 24 R.T.B 6 / 19 SR 13 / 25 R.T.C
0dB MULTI-PIN LFE SUM
115 V
Plug into
Cinema Reference
Plug into
PTM-8150 or
another power
amplifier.
4
2 3
1
Sub Output To
Power Amplifier
For Passive Subs
Or Sub Output To
Powered Subwoofer
Audio Connections

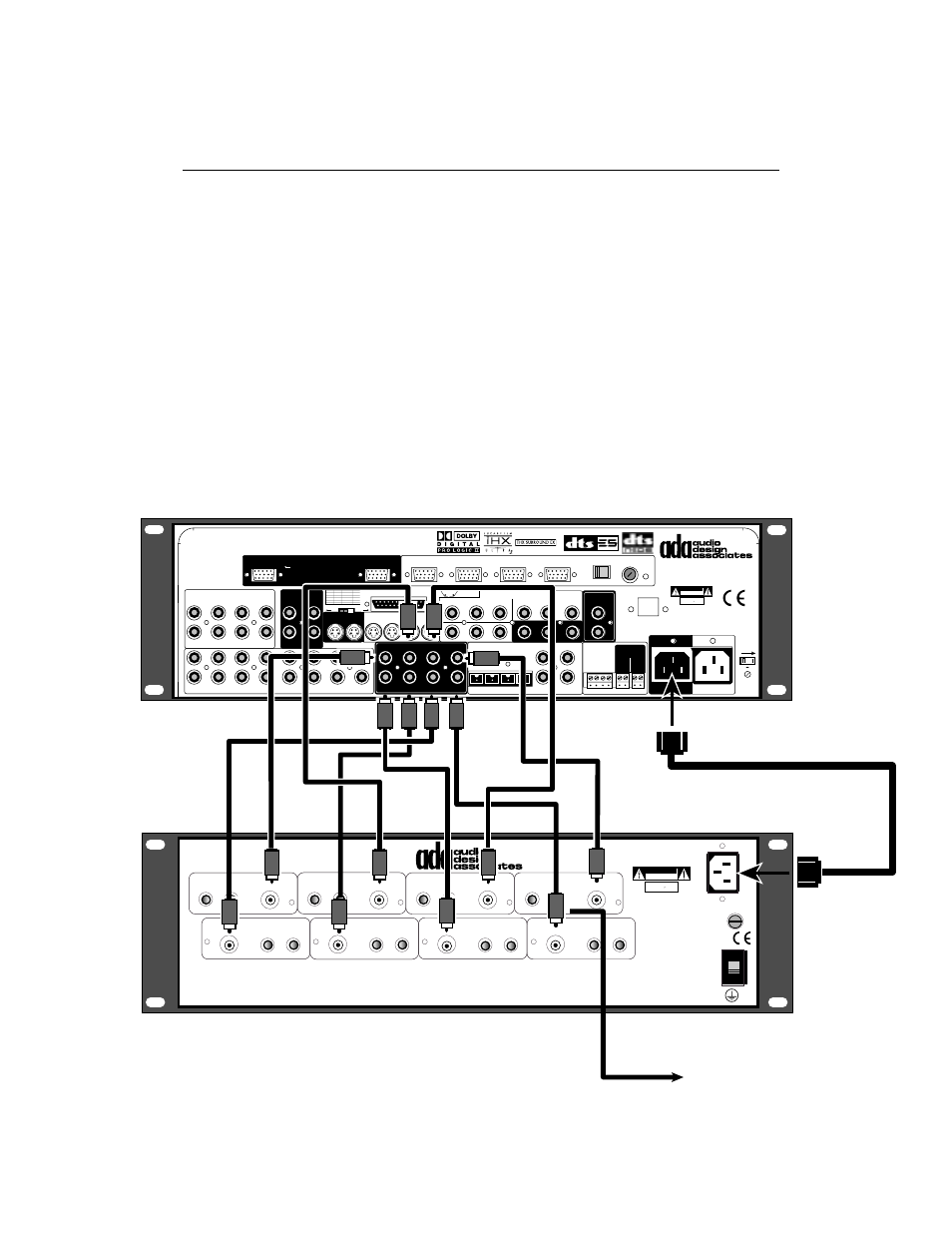

The Cinema Reference Mach II’s Audio Outputs are clearly marked in a white field on the back of the
unit. ADA strongly suggests not using directional interconnects that lift the grounds. This diagram
includes ADA’s PTM-8150 Eight Channel Power Amplifier. While you may decide to vary the input
arrangement if you are using a PTM-8150, the following input arrangement will cause the amplifier’s
front panel LED display to spread outward from Channel 4, the center channel speaker. If you are
using a self-powered subwoofer, you will connect the Cinema Reference’s SUB Output directly to the
subwoofer. If you are using a self powered subwoofer with the PTM-8150, you may opt to “Y” split the
SUB output so as to illuminate channel eight of the PTM-8150.
Amplifier AC Connections
The Cinema Reference Mach II incorporates a switched AC outlet which is rated at 10 Amps. This is
powerful enough for ADA’s PTM-8150 or PTM-6150 Power Amplifiers. Several other power amplifiers
could also be plugged directly into this switched AC outlet. However, if the power amplifier is going to
draw more than 10 Amps (such as ADA’s MPA-501 Five Channel THX High-Power Amplifier), you will
want to avoid using this switched AC outlet. To connect the power amplifier to the Cinema Reference
Mach II, you will need to use an EIC Male to EIC Female AC Cord. These AC cords are also used for
computers and computer monitors and are available in stores that support computer and AC products.
