Page 27
1
1
2
2
3
4
3
5
6
4
7
8
5
1
2
6
REC
OSD
7 8
L
R
L
R
L
R
L
R
AUDIO INPUTS
VIDEO INPUTS VIDEO OUT
1
2
3
4
DIGITAL AUDIO
INPUTS
AC INPUT
115V~60Hz/230V~50Hz
AC OUTPUT
10A~ Max Switched
ADA Bus¤
1 2 3 4
DATA PORT
Serial Data
12VDC OUT
100mA Max Per
DC 1
1- 2+ DC 2
1- 2+
WARNING! Risk Of Hazardous Energy! Make Proper Connections. AVERTISSEMENT! Energie Electrique Dangereuse! Faire Des Connexions Propres Pour L’Hautparleur. Voir La Notice De Fonctionnement. CAUTION: Disconnect Supply Cord Before Servicing. ATTENTION: Debrancher Avant Le Depannage.
Use Same Value Fuse 115V~1AS.B.
230V~.5AS.B.
Voltage Selector & Safety Fuse On This Side
115 V
115V 230V
1 2 3
OPTICAL INPUTS
MAIN 2 3 4 1
S-VIDEO INPUTS
8 CHANNEL DB-25 INPUT
REC
SBL LS
RS
L
R
C
SUB SBR
MAIN
4 G ND O UT I N 12V DC
L
R
RECORD
OUT
COMPONENT VIDEO
Y P B P R
Y P B/B-Y P R/R-Y Y P B/B-Y P R/R-Y
O UTPUT
1
2
3
1 13 25 14 PIN POINTS
C INEMA R EFERENCE M ACH II
H OME T HEATER C ONTROLLER
CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN
ATTENTION! RISQUE DE CHOC ELECTRIQUE. NE PAS OUVRIR MADE IN U.S.A.
ADA NET“
"Dolby", "Pro Logic", & the double-D Symbol are trademarks of Dolby Laboratories. All rights reserved.
Manufactured under license from Digital Theater Systems, Inc. US Pat. No. 5,451,942, 5,956,764, 5,974,380, 5,978,762 and other worldwide
patents issued and pending. "DTS", "DTS-ES Extended Surround", and "Neo 6" are trademarks of Digital Theater Systems, Inc. ' 1996,
2000 Digital Theater Systems, Inc. All rights reserved.
Manufactured under license from Lucasfilm Ltd. U.S. patent numbers 5,043,970; 5,189,703; and/or 5,222,059. European patent number
0323830. Other U.S. and foreign patents pending. Lucasfilm and THX are trademarks or registered trademarks of Lucasfilm Ltd. Surround
EX is a jointly developed technology of THX and Dolby Laboratories, Inc., and is a trademark of Dolby. Used under authorization.
2 3 4 1 PROCESSED VGA ONLY COMPOSITE & S-VIDEO
ARE UP-CONVERTED &
LINE-DOUBLED 115V~60Hz/230V~50Hz
VGASWITCHER
AC VOLTAGE 115V~2/10 A.S.B.
230V~1/10 A.S.B. VGA¥RGBHV¥HDTV INPUTS VGA¥RGB¥HDTV OUTPUT
+10dB
PIN +/- CHAN PIN +/- CHAN 1 / 14 LT 7 / 20 SBL 2 / 15 CT 8 / 21 SBR 3 / 16 RT 9 /10/22 SHLD 4 / 17 SB 11 / 23 R.T.A 5 / 18 SL 12 / 24 R.T.B 6 / 19 SR 13 / 25 R.T.C
0dB MULTI-PIN LFE SUM
115 V
115 V
VOLTAGE SELECTOR
110/220 VAC SWITCHED
50-60 Hz, 15 WATT
(110V) 2/10A S.B.
(220V) 1/10A S.B.
CAUTION
RISK OF ELECTRIC SHOCK DO NOT OPEN
ATTENTION!
RISQUE DE CHOC ELECTRIQUE. NE PAS OUVRIR MADE IN U.S.A.
FUSE WARNING: Risk of Fire! Replace Fuse With Same Type & Rating.
WARNING! RISK OF HAZARDOUS ENERGY! MAKE PROPER CONNECTIONS. AVERTISSEMENT! ENERGIE ELECTRIQUE DANGEREUSE! FAIRE DES CONNEXIONS
PROPRES POUR L'HAUTPARLEUR. VOIR LA NOTICE DE FONCTIONNEMENT. CAUTION: DISCONNECT SUPPLY CORD BEFORE SERVICING. ATTENTION: DEBRANCHER AVANT LE DEPANNAGE.
RFD-1
DIGITAL AC-3 RF DEMODULATOR
OFF
ON
DC INPUT MUTE
"DOLBY", "AC-3", AND THE DOUBLE-D SYMBOL ARE TRADEMARKS OF DOLBY LABORATORIES LICENSING CORP.
DIGITAL
AC-3 OUT OUTPUT
RF
AC-3 IN INPUT
LASER DISC PLAYER
(With AC-3 RF Output But No Internal RF Demodulator)
Opitcal Digital
Audio Out
Video
Out
Dolby Digital
AC-3 RF Output
S-Video
Output
S-Video Cable
(If Input is available)
TOS-Link Optical Digital Interconnect
8
1 2
4
Video Cable
To RFD-1
To Preamplifier

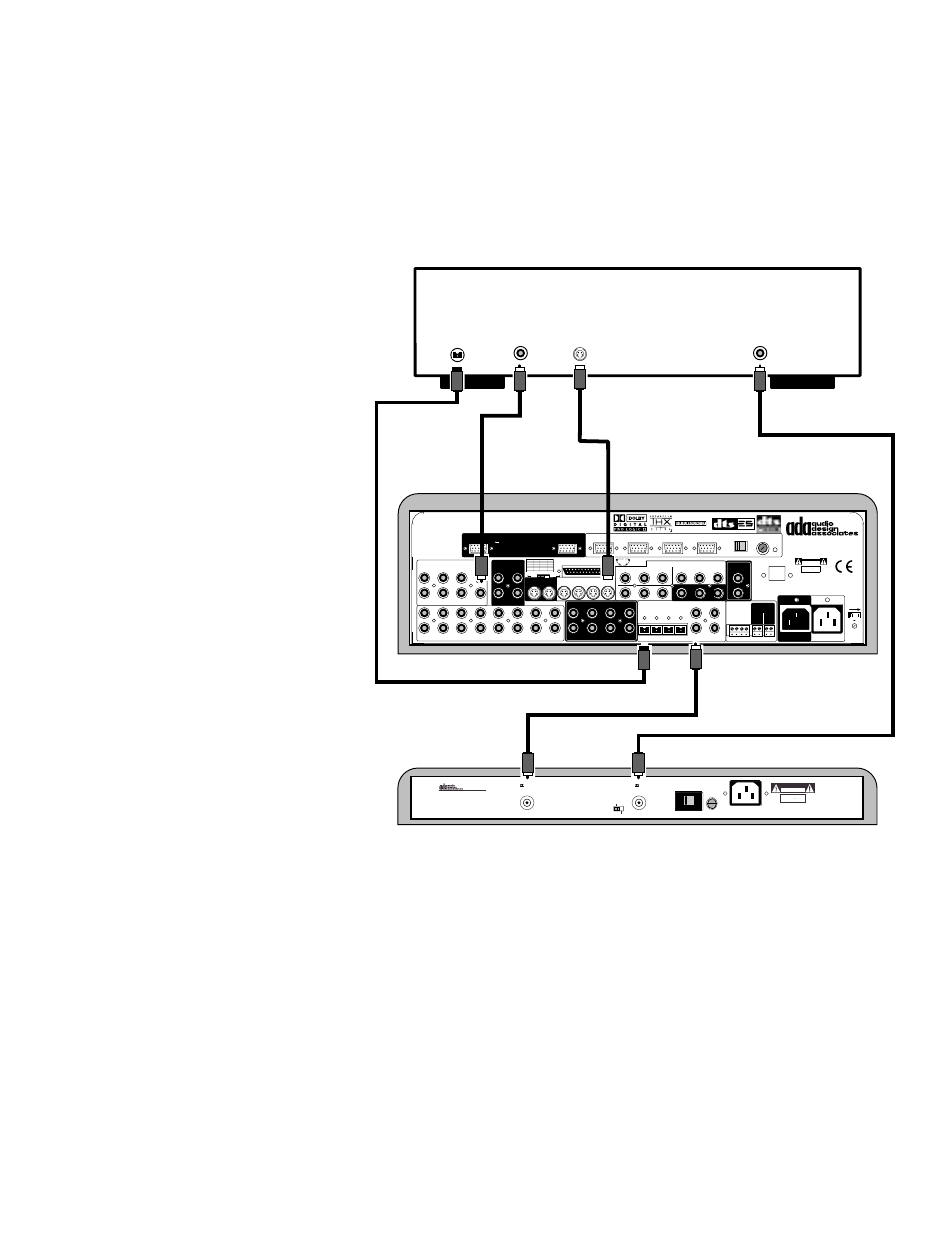

ADA RFD-1 AC-3 RF Demodulator
Laserdisc Player with only an AC-3 RF Output
The Cinema Reference Mach II features an input label for connection to an AC-3 RF demodulator,
needed for laserdisc players that have a Dolby Digital AC-3 RF output. Some players manufactured
after 1994 feature this output while others may have been modified with an additional AC-3 RF Output
(MSB Technologies provided this modification). These players require an external AC-3 RF demodu-
lator (ADA’s RFD-1) for playback of Dolby Digital (a.k.a. AC-3) laserdiscs using Dolby Digital decod-
ing. Here, the laserdisc’s AC-3 RF output is passed into the RFD-1 and then to an open digital coaxial
input on the Cinema Reference Mach II. You need to use one of the four digital coax inputs for
connection to the RFD-1.
The Out of the Box configura-
tion for the LASER AC3 input
label is the Digital 2 coaxial
jack. Please note, you will also
need to make the secondary
optical TOS-Link digital audio
connection (for non-AC3
laserdiscs) and video connec-
tions to the Cinema Reference
Mach II. As such, when play-
ing regular stereo or DTS
laserdiscs, you will need to
select the LASERDISC input
label. When playing Dolby
Digital (AC-3) laserdiscs, you
will need to select the LASER
AC3 input label.
Laserdisc History
As a point of information, the
laserdisc, introduced in the
late 1970’s, today contains
four audio channels. Two
channels contain PCM digital
audio for playback of standard
laserdiscs (CDs also contain
two channels of PCM digital
audio). The other two chan-
nels on a laserdisc date back to the late 1970’s, prior to the implementation of PCM digital audio
(1983). Here, an audio signal is modulated onto a mono FM radio frequency. There is a mono FM
channel for left and another for right. Those who viewed laser discs prior to the mid-1980’s, listened to
the analog channels as the digital channels did not yet exist.
In 1994, when Dolby Laboratories introduced AC-3 (now called Dolby Digital) for the home theater
market, they decided that it would be best to include the AC-3 multi-channel digital bit stream on every
laserdisc pressed (rather than release a special-order laserdisc). Because all players since the mid-
80’s read the digital PCM channels (rendering the mono-FM channels obsolete), Dolby decided to use
one of these two antiquated mono-FM channels to embed (or modulate) the AC-3 bit stream. Thus, in
order to decode the AC-3 bit stream from a laserdisc, one must first demodulate the mono-FM channel
to extract the bit stream. In essence, the RFD-1 is a radio-frequency tuner (demodulator), hence the
terminology-RFD. As the mono-FM signal passes through the RFD-1, the AC-3 bit stream is demodu-
lated, emerging from the RFD-1 as a Dolby Digital signal, the exact same output as that of a DVD
player.
