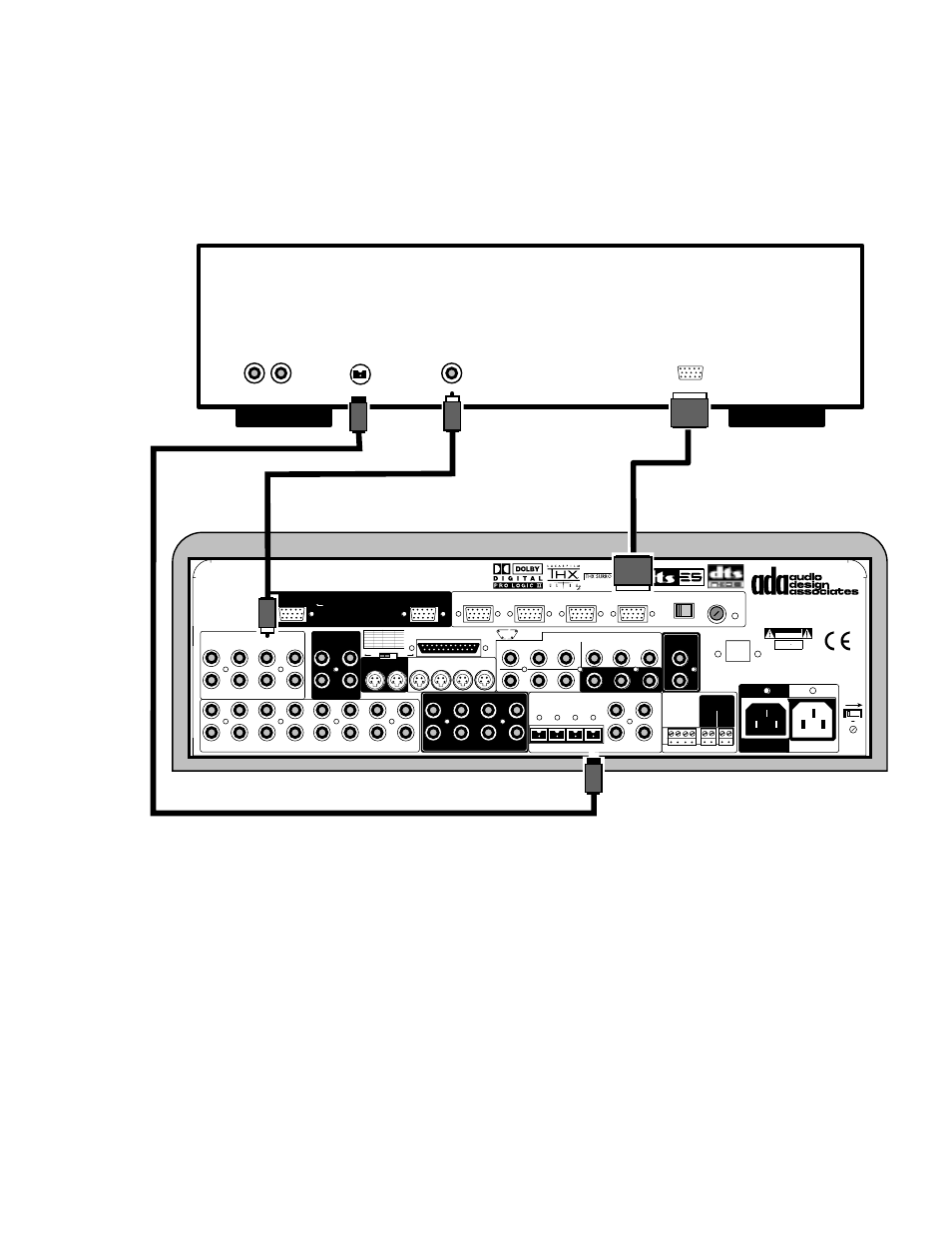

Digital or HDTV Cable/TV Tuner Connection
The Out of the Box input configuration for Cable/TV tuners provides for analog audio connections
along with composite video. If you are using a HDTV tuner instead of a cable TV tuner, you will need
to alternate the audio input configuration for the CABLE/TV 5 input label. This input label is also setup
Out of the Box for a VGA/HDTV input on VGA input #4. To permit the Cinema Reference Mach II to
play digital audio, you will need to connect a TOS-Link interconnect between your tuning device and
the Cinema Reference’s #4 optical input.
To reassign the audio input, follow these steps.
1 Turn the input knob until display’s second line reads CABLE/TV 5 and then press the Input
knob.
2 Turn the Mode knob clockwise until the display’s second line reads SETUP MENU and press
the Mode knob.
3 Turn the Mode knob clockwise until the display’s second line reads AUDIO INPUTS and press
the Mode knob.
4 Turn the Mode knob counterclockwise until the display’s second line reads OPTICAL 4.
At this time, you have reassigned the CABLE/TV 5 input label from tracking the Analog 5 input to the
Optical 4 input.
Please note that when using a TOS-Link interconnect, ADA strongly suggests using the very
best interconnect available to prevent audio dropouts.
