Troubleshooting
Technical Specifications

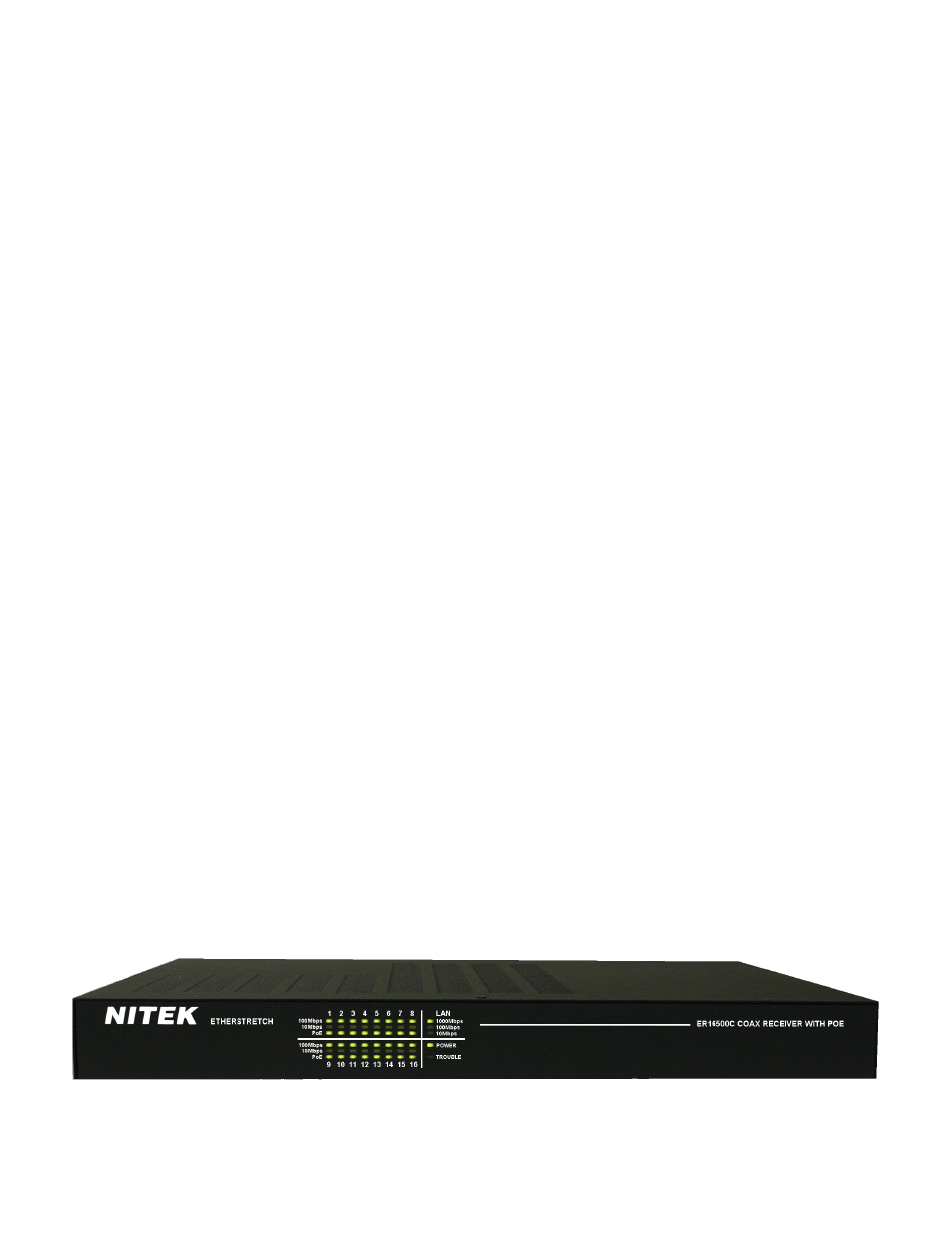

Receiver Unit
Network Output (LAN) Port 2x RJ45 Connectors @ 1 Gigabit each
Link Port
16 BNC Coax Jacks
Ethernet
16x 100BASE-TX Full Duplex per BNC Coax Jacks
Device Dimensions
1 RU x 12.0"D
Operating Temperature
0° to 52° C / 32° to 125° F
Humidity
Up to 95% non-condensing
Power Requirements
IEC380 power connector - 115/230VAC 50/60Hz
Total Power Output
640Watts
PoE Capabilities
IEEE 802.3af & IEEE 802.3at complaint per Coax BNC Jack
Mounting
Standard rack mounting design
LED Connectivity Indicators
Link Status, Power, PoE Out, 10Mb or 100mb
Max Operating Distance
500m/1,600ft
Shipping Weight
12 lbs
PROBLEM POSSIBLE CAUSE
No video/data
Check camera and ER16500/ET1500 device connections.
Check Coaxial cable condition and BNC connector terminations.
Check that the camera is powered.
Check that supplied camera power meets manufacturer’s
specifications.
Check cable that cable distances do not exceed PoE capabilities.
Check that Coax and UTP cable lengths does not exceed the
operating distances of the ER16500 & ET1500.
Check link & device status LED.
Video/data loss
Check network switch terminations & link status.
Check network routing table.
Confer with site Network Administrator
For Tech Support Call 1-(800)528-4343
