Rtm injector trigger rt-4000 – Magnum Venus Plastech RT-4000 RTM INJECTOR TRIGGER User Manual
Page 24
RT-4000 Remote Trigger Manual
Rev. 12/2012
Page | 24

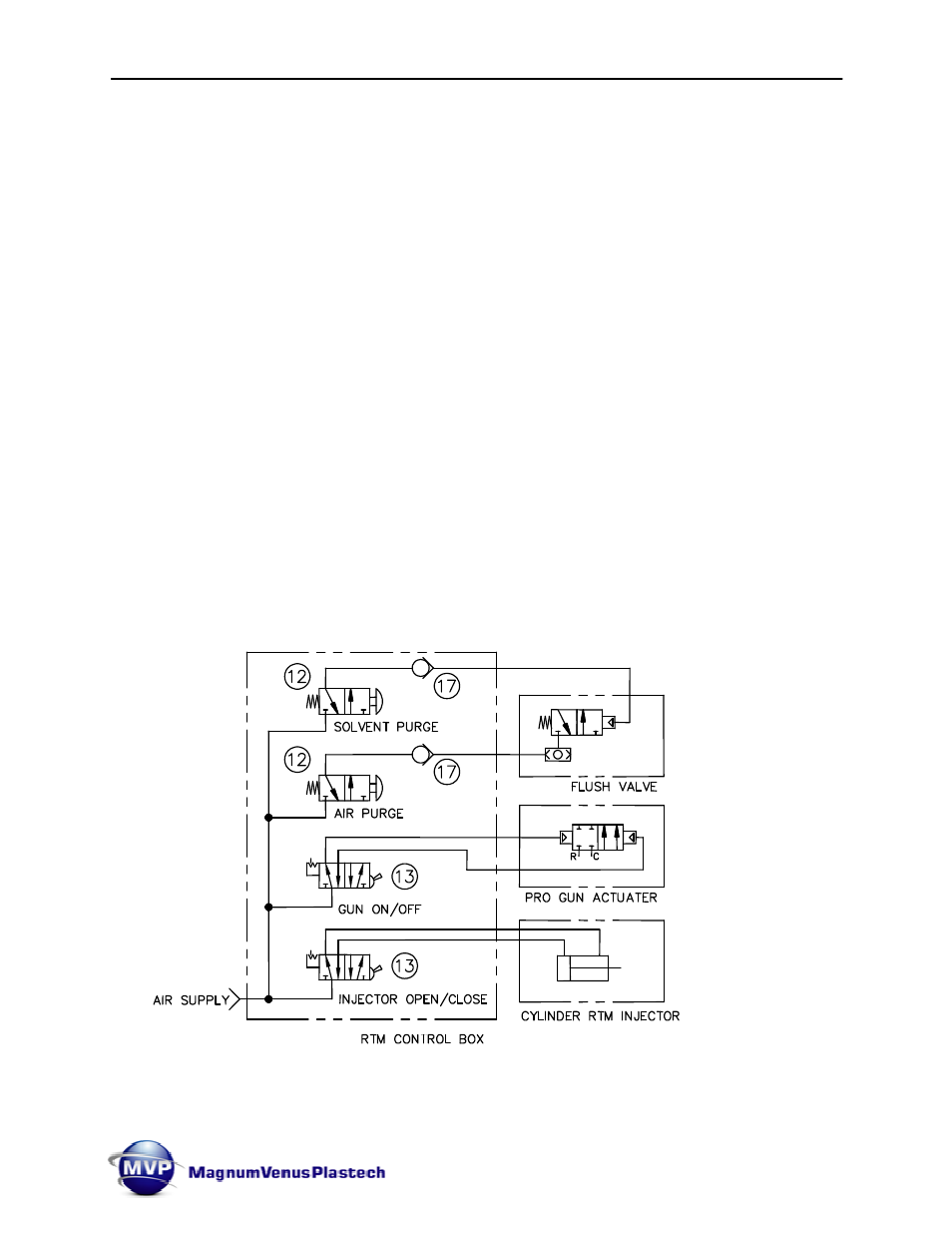

RTM INJECTOR TRIGGER
RT-4000
ITEM
PART NO.
QTY.
DISCRIPTION
1
58525-1
1
ENCLOSURE
2
58525-3
1
CONTROL BOX PANEL
3
58524-1
1
DECAL – CONTROL BOX
4
07642
1
MULTI PLUG
5
07643
1
MULTI SOCKET
6
07644
7
TERMINAL PLUG
7
07645
7
TERMINAL SOCKET
8
95085-5
1
PLUG DECAL
9
F-PH-632-06
4
MACHINE SCREW
10
00158
4
HEX NUT
11
00300
4
THIN NUT
12
09169
2
PUSH BUTTON VALVE
13
09852
2
TOGGLE VALVE
14
7701-6-7
13
TUBE CONNECTOR
15
08807
3
ADJUSTABE TEE
16
TRU-1021
7
ADJUSTABE ELBOW
17
01659
2
125 PSI CHECK VALVE
18
09073-8
8
URETHANE TUBING
