10
1- COMMON
2- N.O.(N.C./NPN)
3- COMMON
4- N.O.(N.C./NPN)
5- A INPUT
6- B INPUT
7- 12VDC OUT/+DC IN
8- -DC (GROUND)
9- RESET INPUT
10- NOT USED
11- A.C. INPUT
12- A.C. INPUT
RELA
YS
A
B
13- V+
14- I SINK
ANALOG OUTPUT
ON
CAL.
0-20mA
COUNT
SET
OFF
RUN
4-20mA
RATE
RUN 1 2 3 4
ON
SWITCH
b TOT RELAY B FOR TOTALIZER - When this is selected, the user has a choice of having Preset B follow the B
(
tot B ) or C ( tot c ) display.
tot b RELAY B FOR B TOTALIZER - If selected, the B output is activated by B total and user can select auto
recycle with duration of 00.1 to 99.9 sec or latched till reset if 00.0 is programmed.
tot c RELAY B FOR C TOTALIZER - If selected, the B output is activated when C total is equal or greater then
preset B and drops out when C total goes below preset B by selected 0 - 99.9 hysteresis.
b RATE RELAY B FOR RATE - When this is selected, output B will activate when the Rate of either display B or
display C (user selectable) equals or exceeds preset B. The relay will drop out when the selected rate
falls below preset B by selected 0 - 99.9 hysteresis..
rate b RELAY B FOR B RATE - If selected, the B output is activated when B rate is equal or greater than preset B
and drops out when B rate goes below preset B by selected 0 - 99.9 hysteresis.
1 2 3 4

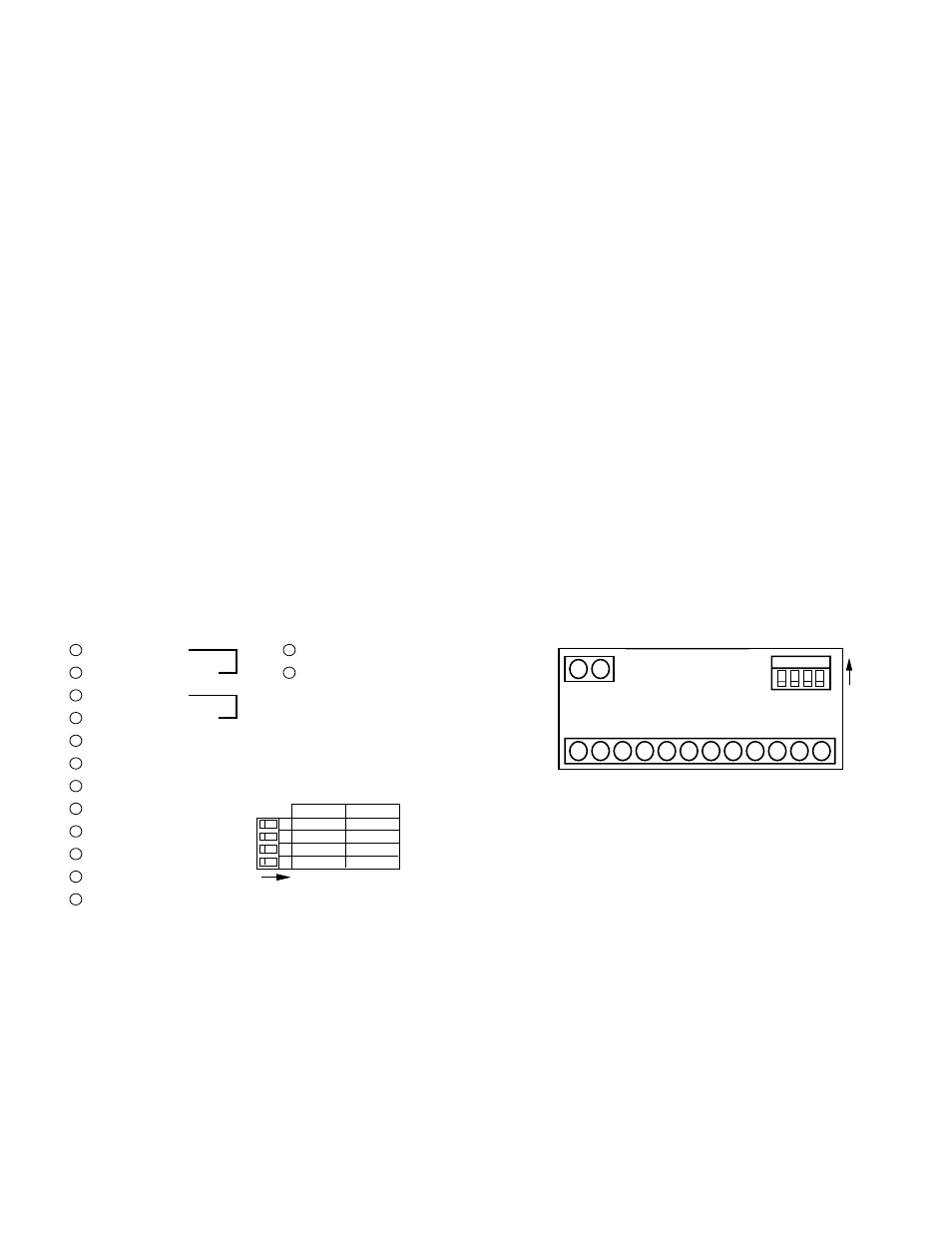

REAR VIEW
1 2 3 4 5 6 7 8 9 10 11 12
13 14
Analog Out Setup Switches Serial Port
ON
TERMINATION: REAR VIEW
