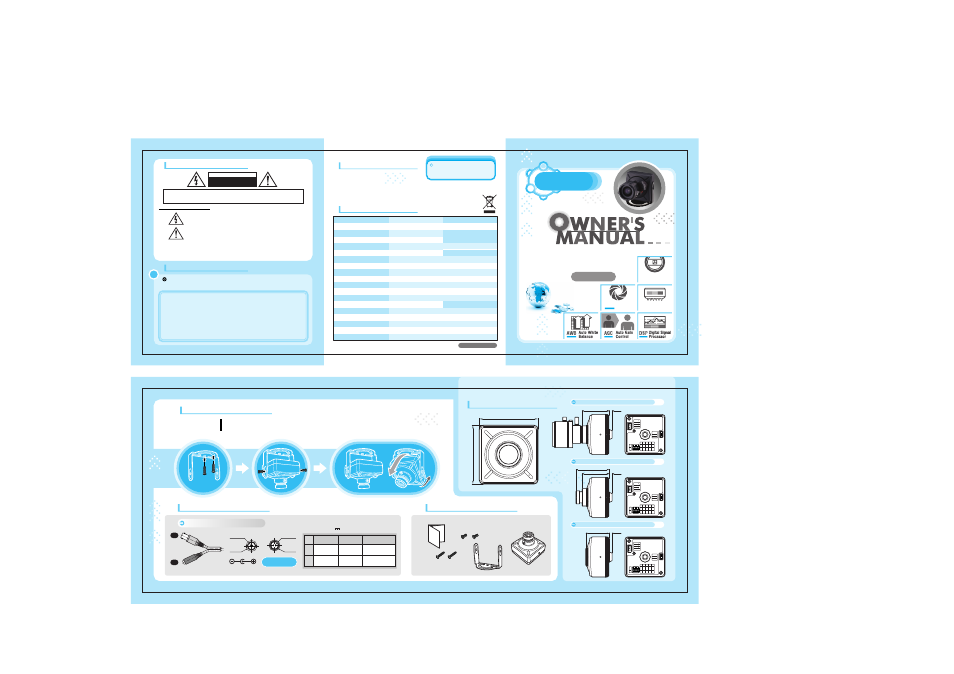

CNB MP1310VD User Manual

38x38, Ccd camera color miniature

background image

!

USER INFORMATION:

PRECAUTION:

CAUTION! TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE

COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

When this camera is installed near wireless communication devices

that emits strong electromagnetic field, irregularity such as noise

on the monitor may appear.

THE GRAPHIC SYMBOLS WITH SUPPLEMENTAL MARKING ARE ON THE BOTTOM

OF THE SYSTEM.
"WARNING-TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THE UNIT

TO RAIN OR MOISTURE"

The lightning flash with arrowhead symbol, within an equilateral

triangle, is intended to alert the user to the presence of un-insulated

"dangerous voltage" within the product's enclosure that may be of

sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to

alert the user to the presence of important operating and maintenance-

(servicing) instructions in the literature accompanying the appliance.

Explanation of two Symbols

This manual explains the installation and operating method for the

color dome camera. Before installation, make sure you are familiar

with this product's special features and proper operating technique.

INSTALLATION:

Dimensions(mm):

This equipment has been tested and found to comply with limits for a

Class A digital device, pursuant to part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against

harmful interference when the equipment is operated in a commercial

environment.

This equipment generates, uses, and can radiate radio frequency

energy and, if not installed and used in accordance with the instruction

manual, may cause harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause

harmful interference in which case the user will be required to correct

the interference at their own expense.

Own er's

Man ual

COMPOSITION:

Wall Mounting

Screw

Wall

Bracket

Bracket Screw

Miniature

Camera

CONNECTION:

No.

#1

#2

Function

Video Output

Power Input

Remark

1.0 Vp-p

DC12V(10V~15V),

3W(Max)

Terminal Color

Yellow

Red

• The wire is polarized.

• Use DC 12V power source.

DC 12V Power Source

Recommendable

Power Supply

(DC 12V/ Over 0.3A Power Adapter)

#1

#2

Video

(Yellow)

Power

(Red)

Video Output

GND

Power(+)

GND

Fixed Lens

Pin Hole Lens

Vari-focal Lens

43

.0

43.0

BLC

ON ALC
BLC

OFF ELC

NO

L

H

1

2

AGC

OFF
AGC

ON

3

FL

ON
FL

OFF

4

V-OUT

GND

DC 12V

DAMP

DRIVE

GND

DAMP

H

L

P/N:3310-0018C

DC LEVEL

27.8

3.4

BLC

ON ALC
BLC

OFF ELC

NO

L

H

1

2

AGC

OFF
AGC

ON

3

FL

ON
FL

OFF

4

V-OUT

GND

DC 12V

DAMP

DRIVE

GND

DAMP

H

L

P/N:3310-0018C

DC LEVEL

27.8

35.3

3.4

BLC

ON ALC
BLC

OFF ELC

NO

L

H

1

2

AGC

OFF
AGC

ON

3

FL

ON
FL

OFF

4

V-OUT

GND

DC 12V

DAMP

DRIVE

GND

DAMP

H

L

P/N:3310-0018C

DC LEVEL

24.8

3.4

Signal System
Scanning System
Scanning Frequency (H)
Scanning Frequency (V)
Image Sensor
Total/Effective Pixels No.
S/N Ratio
Resolution
Video Output Level
Lens
Focus
Sync. System
Sensitivity
Electronic Shutter
White Balance
AGC / BLC
Flickerless
Input/Output Connector
Power Consumption

NTSC : 525 Lines PAL : 625 Lines

2 : 1 Interlace

15.734kHz 15.625kHz

59.94Hz 50Hz

1/3 inch SONY IT CCD

410K / 380K 470K / 440K

More than 48dB

550 TV Lines / 480 TV Lines / 380 TV Lines

1.0 Vp-p (75 Ohms, composite)

Vari-focal Lens / Fixed Lens / Pin Hole Lens

Manual
Internal

0.3 Lux (High) / 0.1 Lux (Normal)

1/60~100,000 Sec. 1/50~100,000 Sec.

Auto

On / Off Selectable
On / Off Selectable

Power (Red Jack), Video (Yellow Jack)

DC 12V (DC 9V~15V) / 3W (Max)

Design and specifications

are subject to change

without notice.

P/N:3810-0020C

ver.0604E

38 x 38 Board

SPECIFICATIONS:

camera

color

CCD Camera

Color Miniature

Color

Digital DSP

1/3" SONY CCD

CCD COLOR

LENS

.Vari-focal

.Fixed

.Pin Hole

38x38
