Section 3
Installation
3.1 Unpack the sampler
CAUTION: Lifting Hazard (86 kg) (190 lbs). The Refrigerated
and All Weather samplers weigh more than 86 kg (190 lbs). Do
not attempt to unpack, carry or move samplers without
sufficient equipment and people to do so safely. Lift with the
legs, not with the back. Users with histories of cardiovascular
or back problems should not attempt to unpack or lift a
sampler.
Verify packing slip with items received. Optional components are
often placed inside the cabinet for shipping.

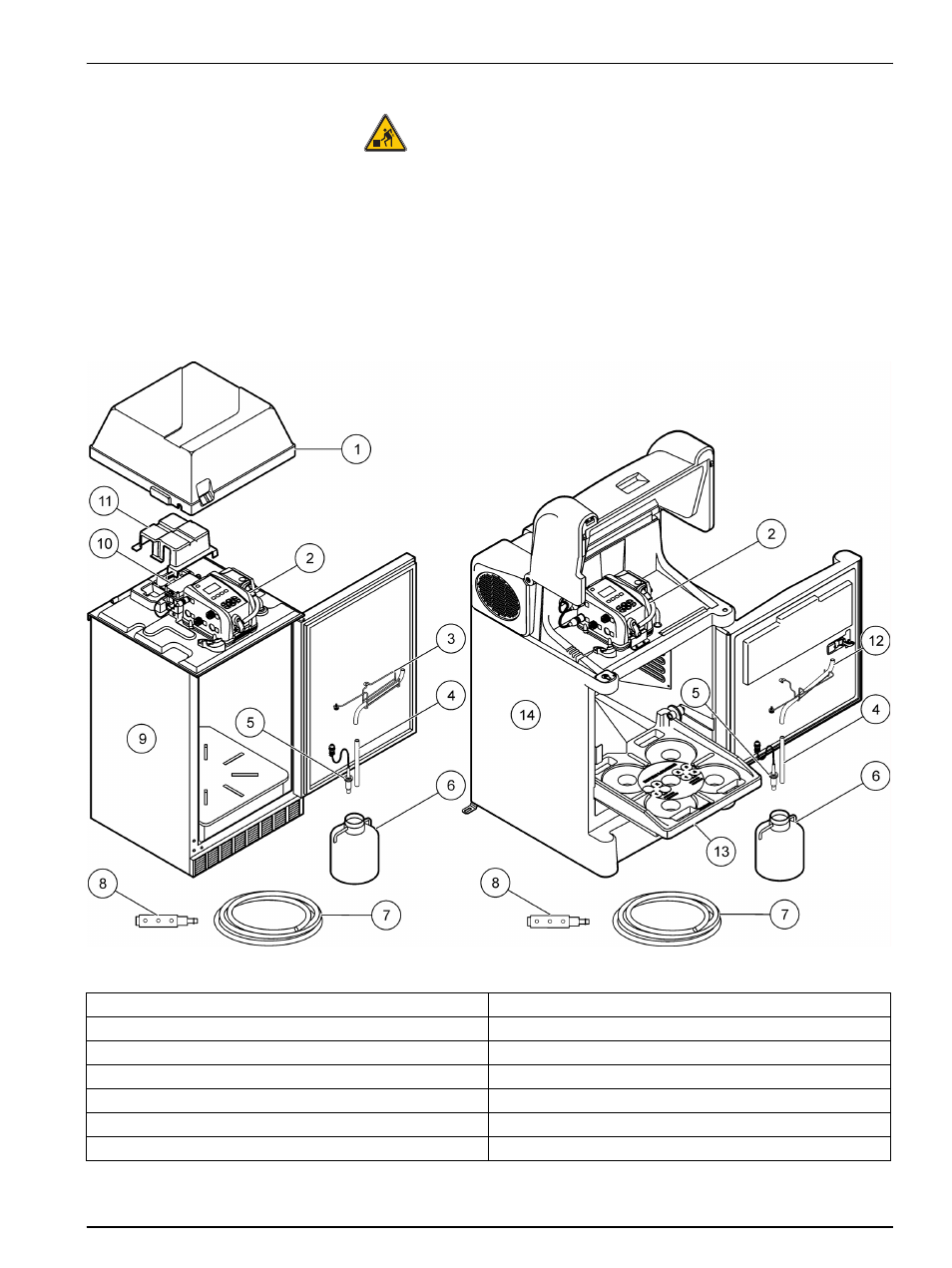

Figure 6 Sampler with single bottle
1
Optional cover (8963)
8
Strainer
2
Controller
9
Refrigerated sampler
3
Tubing support (8986)
10 Power source
4
Tubing extension
1
(3527)
11 Power supply retainer
5
Full container shut-off (8847)
12 Tubing support (8838)
6
Sample bottle
13 Pull out tray
7
Intake tubing, vinyl or teflon-lined
14 All weather refrigerated sampler
1
Not used with 21 liter (5.5 gal) bottle
