4” SQFW
Square Lensed Wallwash
Triple-Tube lamp
PH
OTO
M
ET
RY
All dimensions are inches (centimeters) unless otherwise noted.
ORDERING NOTES
1. Not available with matte-diffuse finishes.
2. Available with WR and BR trim colors and SQMT metal trim option.
3. Multi-volt electronic ballast capable of operating on any line voltage from
120V through 277V, 50 or 60HZ.
4. For additional ballast types, refer to Technical Bulletins .
5. Available in 120V or 277V only.
6. For dimensional changes, refer to TECH-140 .
7. Not available with MVOLT. Must specify voltage.
8. Meets codes that require in-fixture disconnect.
9. Order ships as 3 components: housing, trim and microflange gypsum board.
10. Not available with stepped reflector or MFLG option.
11. For emergency generator/inverter applications order non-nLight enabled fixture
and NSP5 D ER KIT as an accessory. Refer to NSP5 D ER KIT .
12. Not available with white reflector.
13. Not available with black reflector.

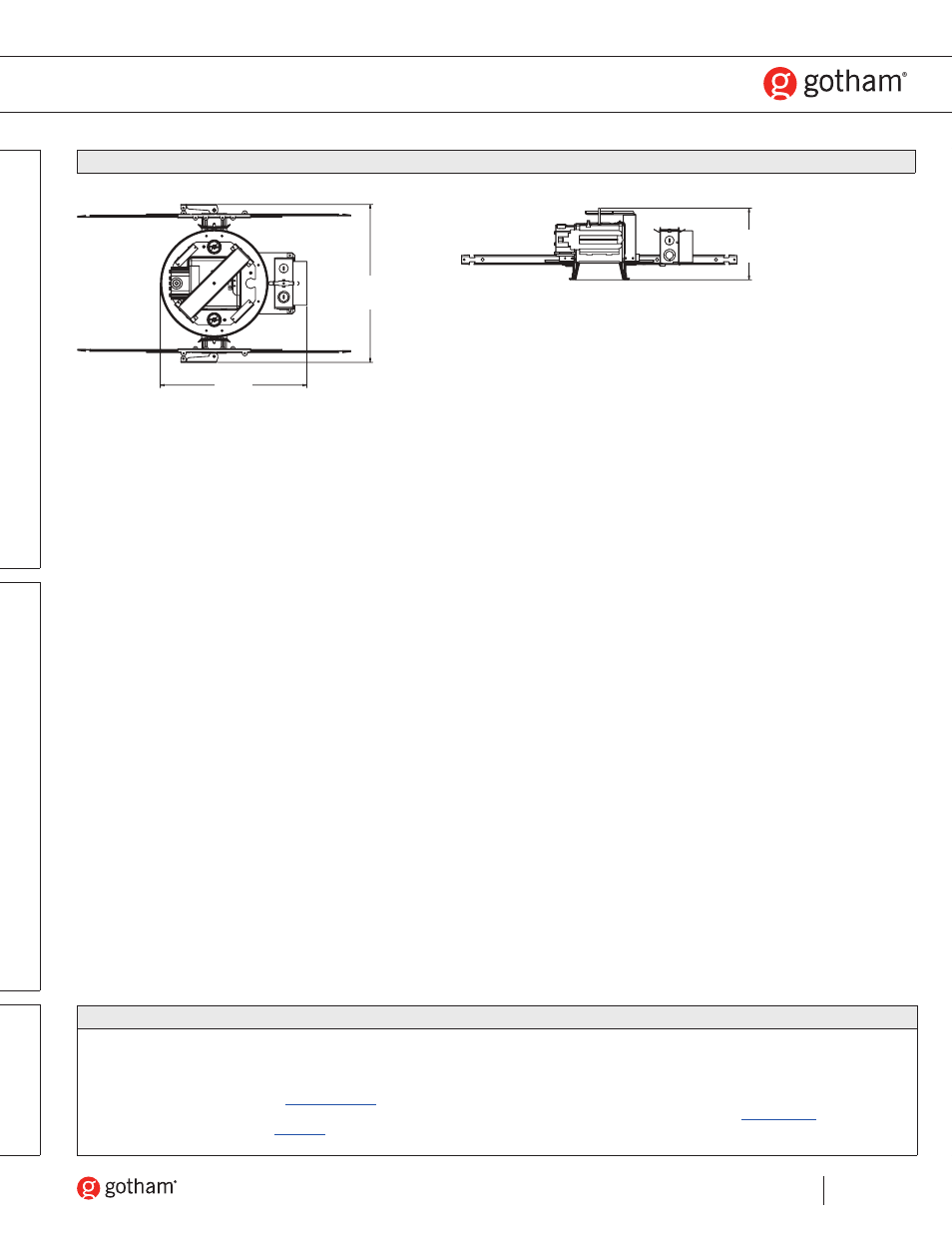

14-1/16
(35.7)
15-3/16
(38.6) Aperture: 4-1/2 (11.4)
Ceiling Opening: 5-1/8 (13.0)
Overlap Trim:
5-3/4 (14.6)
6-13/16
(17.3)
