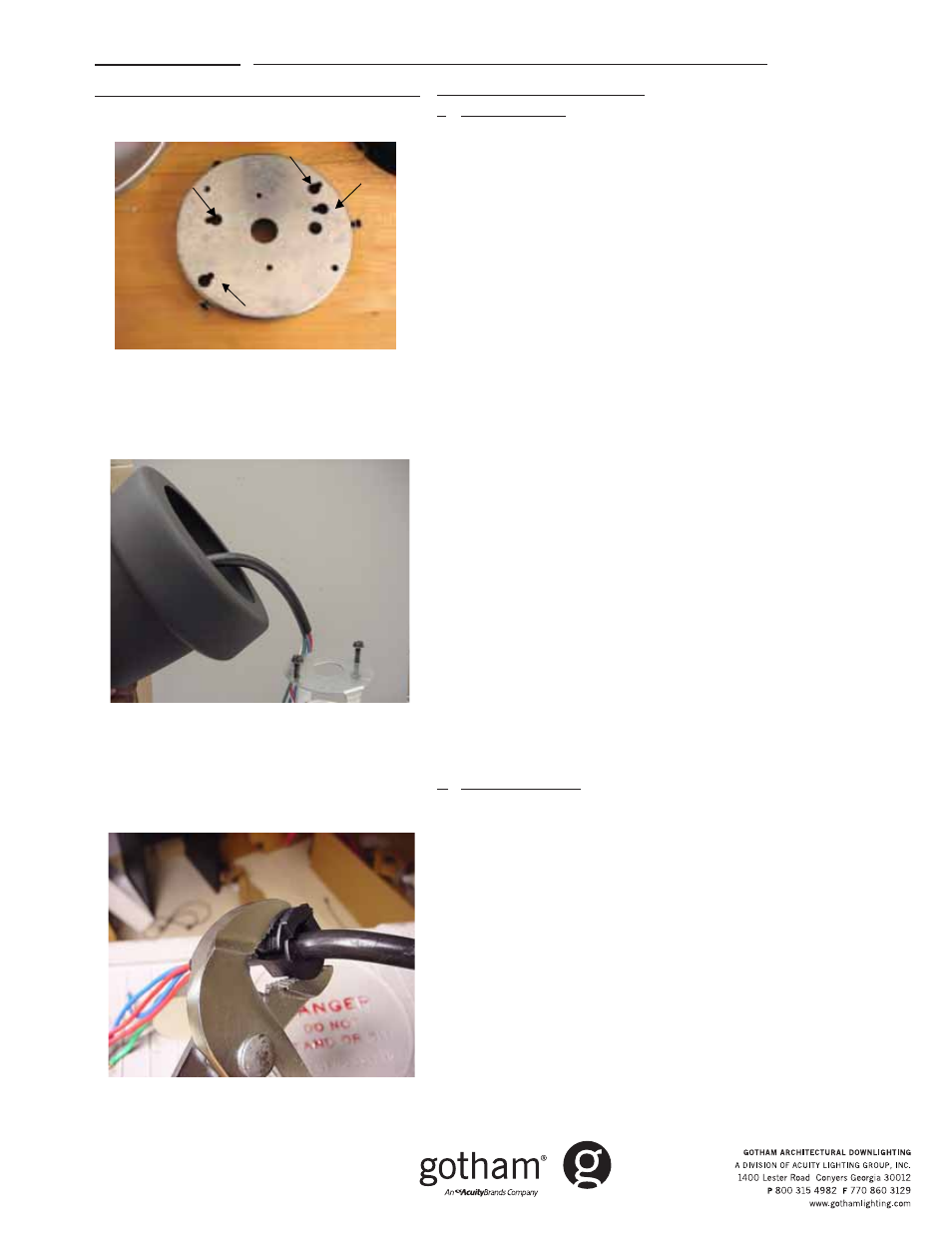

Figure 1C

Cord Mount -4 inch Elevations

I. Ground Prep

Temporarily remove top cap and any round decorative piece to expose
mounting holes and screws.

Removing socket assembly from box, attach socket cup to trim (per trim

instructions).
3.

Route socket wires through housing PRIOR to installing reflector.

Press reflector into housing until clips engage and flange is flush with

bottom of housing.
5.

Bundle wires above reflector inside housing (do NOT pass wires through

top hole).
6.

Replace the top cap and round decorative piece, leaving screws loose

for later steps.
7.

Measure desired hanging length from ceiling to top of fixture, then

subtract the thickness of the canopy and add 6inches. **DESIRED
CEILING SUSPENSION LENGTH - CANOPY THICKNESS + 6 INCHES =
CORD LENGTH** Cut cord to calculated length.
8.

Strip off 4 inches of cord jacket to expose inner conductors. Strip ½ inch

from each conductor to expose copper.
9.

Secure the provided strain relief bushing with a minimum of 2 inches

above the stripped edge of the cord. Use pliers or vice-grips to crimp
around the cord jacket – flat side facing up. IF ADJUSTMENT IS
REQUIRED, USE EITHER A FLATHEAD SCREW DRIVER TO PRY-OFF
BUSHING AND RECRIMP, OR CUT BUSHING OFF AND USE THE EXTRA
ONE PROVIDED. Figure 2B.
10. Remove the fixture cap to expose support bracket and to route cord

through top center hole.

11. VERIFY CORD IS ROUTED THROUGH CAP AND ROUND DECORATIVE

PIECE IS ON FIXTURE! Align cord-attached bushing to bracket hole and
press firmly into support bracket until all three snaps engage. Flat ledge
of bushing should sit flush with bracket surface.

12. Gather both cord and socket leads and strain-relieve a minimum of 2

inches of cord conductors with socket conductors, using the provided
attached wire tie. Make connections with wire-nuts.

13. From canopy ASM, separate J-box mounting pan from top of canopy by

loosening the 3 side screws, twisting and removing.

II. Ceiling Installation
14. Hang mounting pan by routing J-box wires through back of pan, and

using either 3.5 or 4.5 inch key holes, secure to J-box Figure 1C.

15. With canopy and fixture suspended on cord, make power connections

using wire nuts.

16. Tuck in all wires, close assembly to mounting pan and twist to engage

screws into L-slots.

17. Tighten screws. INSTALLATION COMPLETE.
