HPEPP

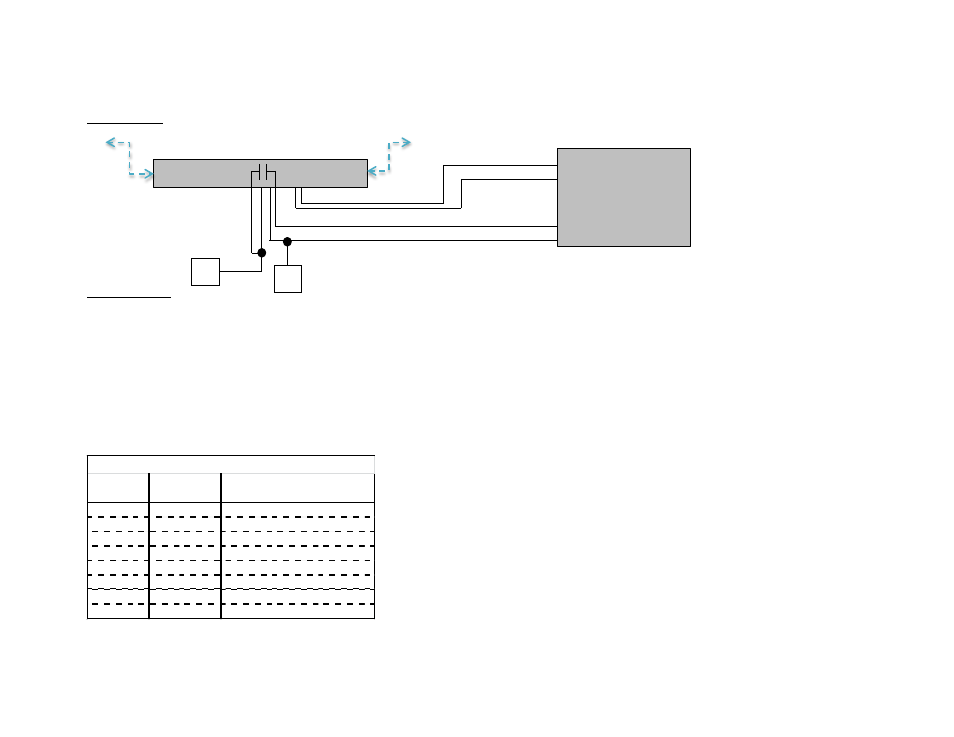

Wiring Diagram
Installation Steps
1. Mount through a ½” KO in luminaire or junction box. Secure with lock nut
2. Connect line voltage wires within enclosure or junction box as shown (120 or 277VAC only)
Relay rated to 800W max @120V, 1200W max @ 277V
3. Connect Class 2 dimming wires (0-10V) to the ballast/driver (maximum 20mA)
4. Connect Class 2 DMX signal via RJ-45 port using CAT-5 cables. DMX CAT-5 Pin Out:
Note: Programming button is located at the end of the HPEPP near the CAT-5 DMX Input.
Note: CAT-5, CAT-5e and CAT-6 cabling are acceptable
DMX Network Cat-5 / Cat-5e / Cat 6 Wiring
Pin (Wire) # Wire Color
DMX512 Function per ANSI E1.11
Used in HPEPP
1 white / orange Data 1 +
2 orange Data 1 -
3 white / green Data 2 + (optional)
4 blue Not Assigned
5 white / blue Not Assigned
6 green Data 2 - (optional)
7 white / brown Data 1 common (0 v)
8 brown Data 2 common (0 v)
HPEPP
CAT-5 DMX In CAT-5 DMX
0-10V Driver/Ballast
H
BLACK
BLUE
N
GRAY (-)
VIOLET (+)
WHIT
BLUE
