Step 4 — (Optional) Wire power connector

The HUB4 can be powered from the host computer.

However, if the USB peripheral devices that are connected to

the HUB4 require more power than the HUB4 can provide,

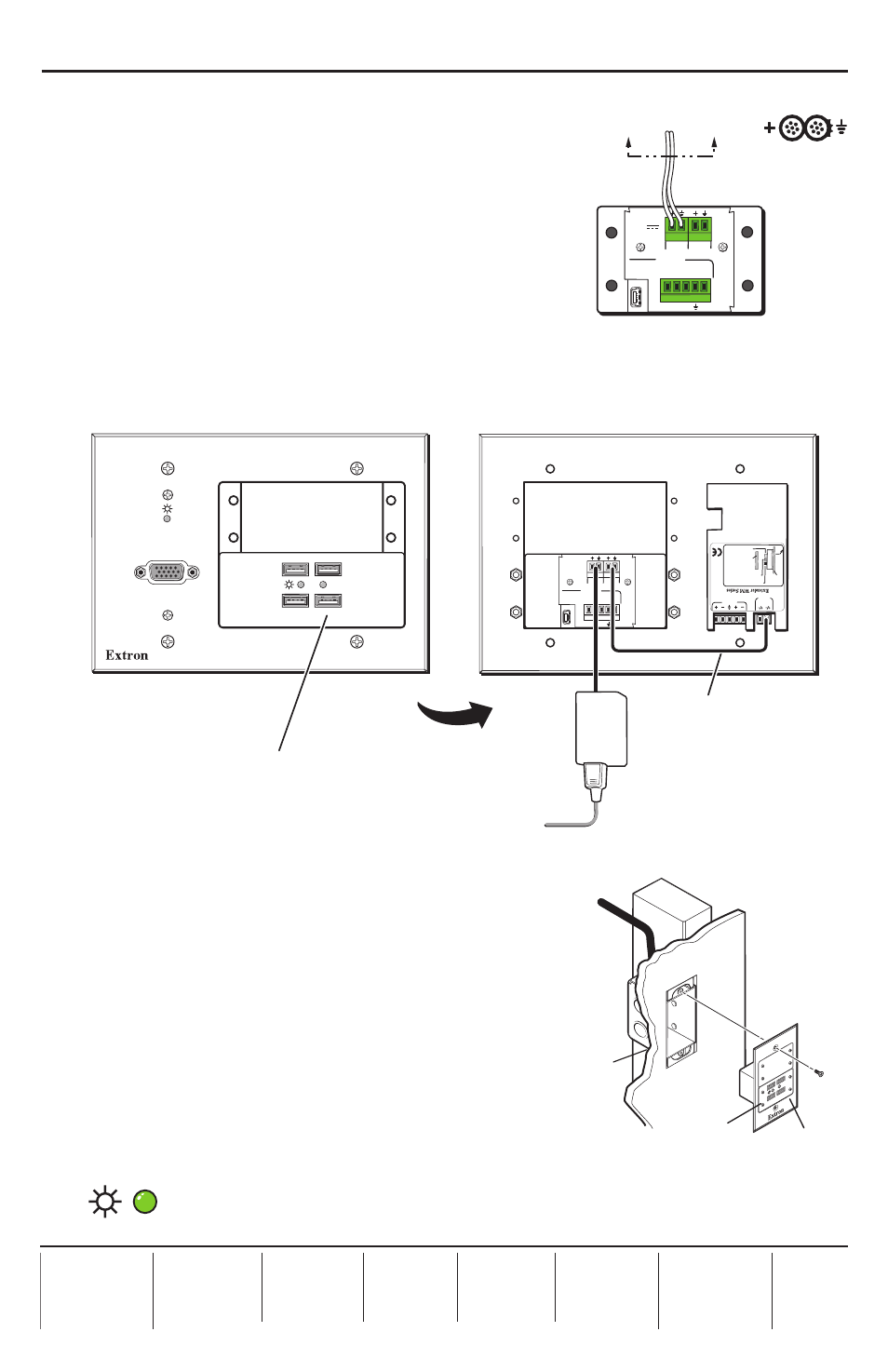

wire an optional Extron PS 1210 1 A, 12 VDC power supply

(part #70-775-01) to the 12VDC Power In ports (1 and 2) on

the rear panel, as shown at right.


Connecting additional Extron devices

If using an additional Extron device, such as a WM Series Extender, with the external power

supply, connect the device’s power cord to the 12VDC Power Out ports (3 and 4). (See the

example below.)

Step 5 — (Optional) Mount unit in wall box

If using an electrical box, mount the USB HUB4 and

the attached mounting frame onto the box. (See the

example at right.) If you are using a mounting bracket,

this step is not needed.

Step 6 — Connect peripheral devices

Attach your peripheral USB devices to the front panel

USB Type A connectors.

Step 7 — Power on

Power on the host computer and the desktop power

supply (if applicable).
Check the front panel power indicator LED to verify that

the HUB4 is receiving power.
