Extron Electronics SGS 408 Quick Start User Manual
Quick start — sgs 408, Installation, Step 1

QS-1
SGS 408 • Quick Start
Quick Start — SGS 408
Installation
Step 1

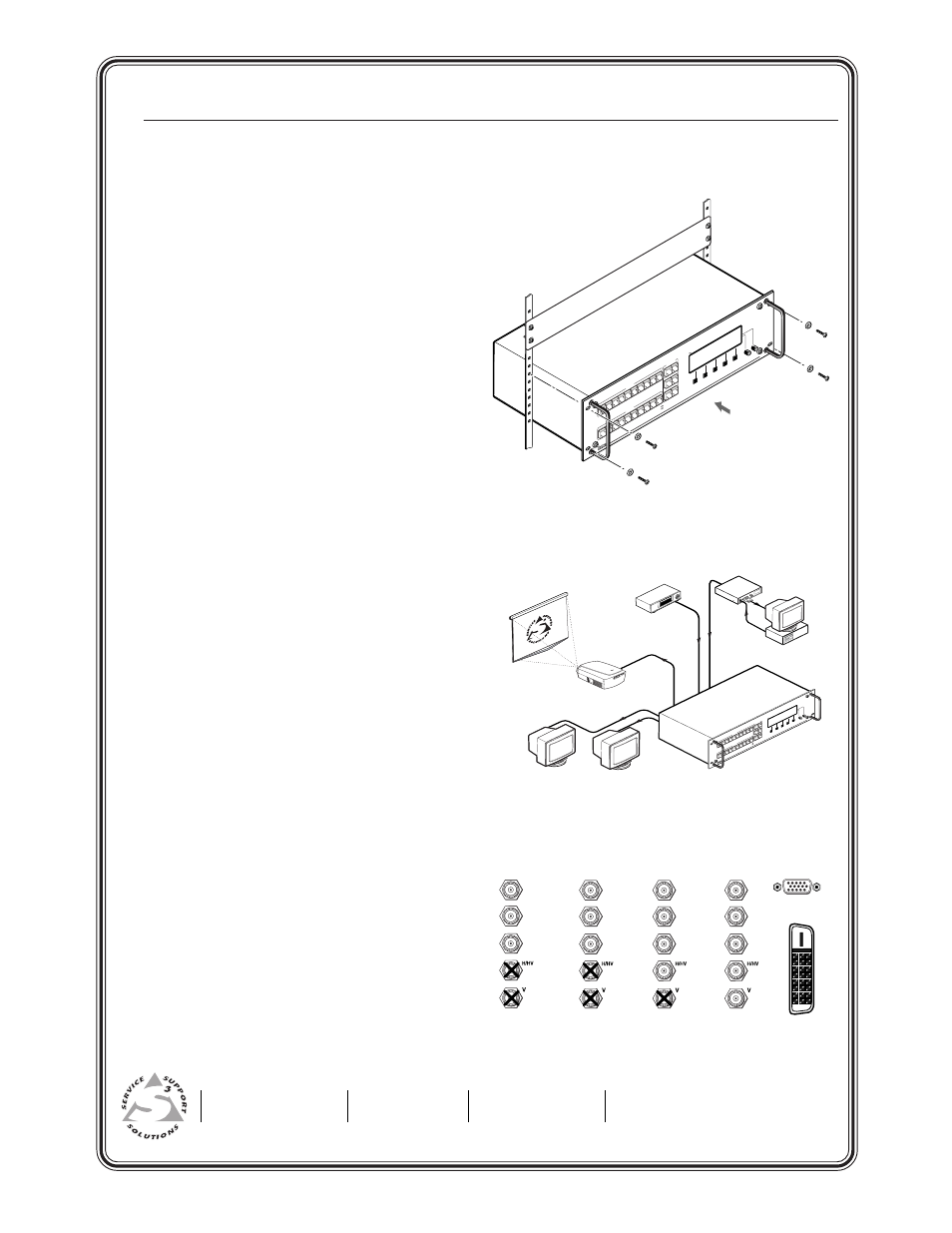

Install the four rubber feet on the bottom of the
SGS 408 switcher, or mount the switcher in a
rack (1).
Step 2
Turn off power to the input and output devices,
and remove the power cords from them.
Step 3
Attach the input and output devices to the
switcher (3A).
Input options (3B) are:
• Component Y, R-Y, B-Y (connect Y, R-Y, and
B-Y)
• RGsB (connected to R, G, and B)
• RGBS (connected to R, G, B, and H/HV)
• RGBHV (connected to R, G, B, H/HV, and
V).
Output options are RGBS, RGBHV, and DVI-D
(if the DVI option is installed).
The program output displays the image seen by
the audience. The preview output displays the
image that will be switched next.
Step 4
If desired, attach an RCP 1000 remote control
panel to the XLR connector on the rear of the
SGS 408.
Step 5
If desired, attach an ECP 1000 event control
panel to the RS-232 connector on the rear of the
SGS 408.
Step 6
Plug the switcher, input devices, and output
devices into a grounded AC source, and turn on
the input and output devices.
Step 7
Use the LCD screens to configure the scaler (see
the next page).
PROGRAM
FREEZE
BLACK
1
2
3
4
5
6
7
8
CUT
TAKE
PROGRAM
PREVIEW
OUTPUT RATE
EFFECT
TRANSITION
SGS 408
SEAMLESS GRAPHIC SW
ITCHER
INPUT
1
2
3
4
TRANSITIONS
EFFECTS
RCP COMMUNICATION
PREVIEW
FREEZE
BLACK
1
2
3
4
5
6
7
8
Tx
Rx
1
Projector
SGS 408
Program
Monitor
Up to 8 Inputs
Preview
Monitor
PC Computer
PROGRAM
FREEZE
BLACK
1
2
3
4
5
6
7
8
CUT
TAKE
PROGRAM
PREVIEW
OUTPUT RATE
EFFECT
TRANSITION
SGS 408
SEAMLESS GRAPHIC SWITCHER
INPUT
1
2
3
4
TRANSITIONS
EFFECTS
RCP COMM
UNICATION
PREVIEW
FREEZE
BLACK
1
2
3
4
5
6
7
8
Tx
Rx
RGB 109
xi
DVD Player
3A
3B
RGsB
(input only)
RGBS
RGBHV
15-pin HD
(output only)
DVI-D
(output only)
Component
R/R-Y
G/Y
B/B-Y
R/R-Y
R/R-Y
R/R-Y
G/Y
G/Y
G/Y
B/B-Y
B/B-Y
B/B-Y
