Close-coupled units, Suction piping, Coupling alignment – Xylem IM100 Model SFH/SFC User Manual

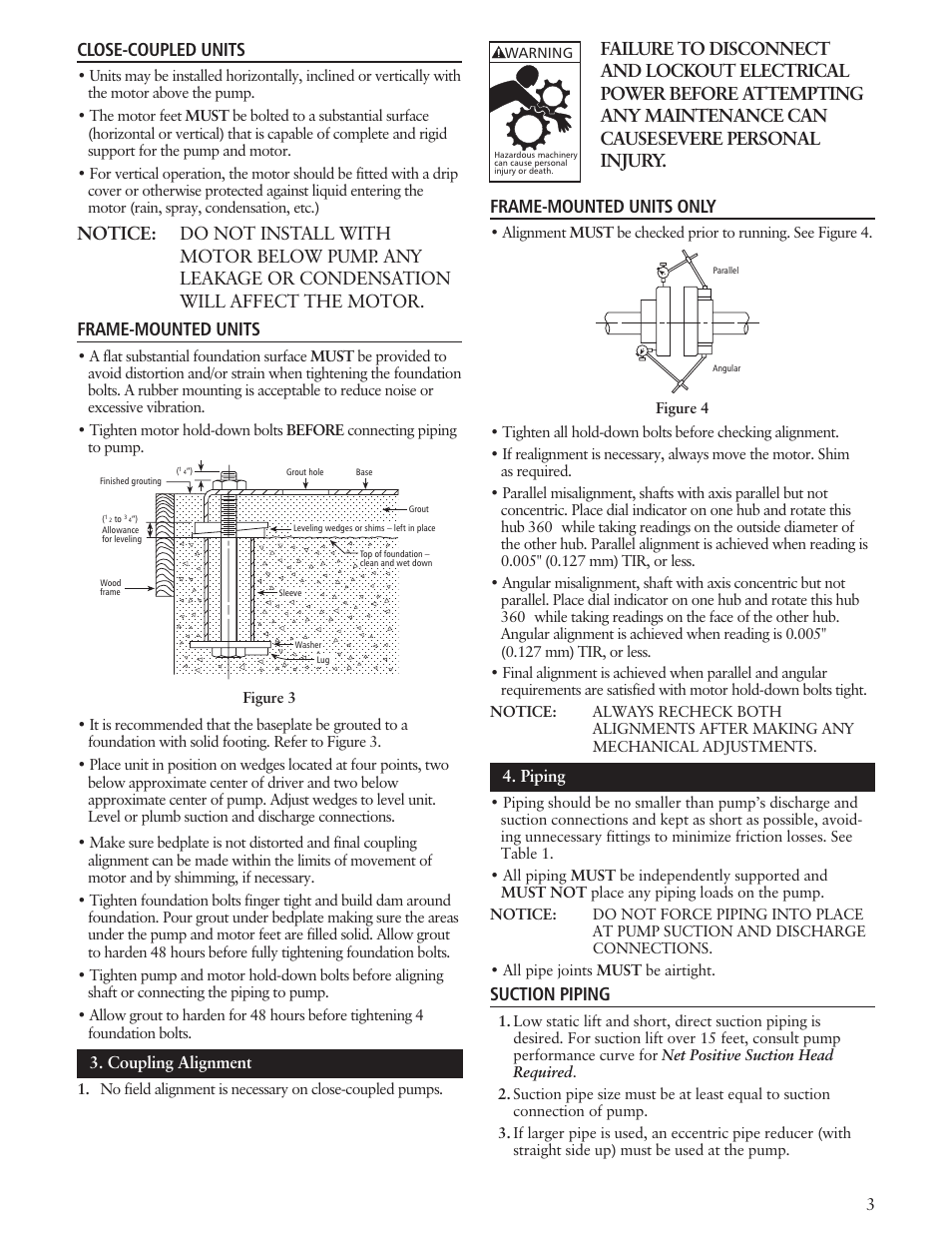

Page 3: Piping
