PAM8620
A Product Line of
Diodes Incorporated

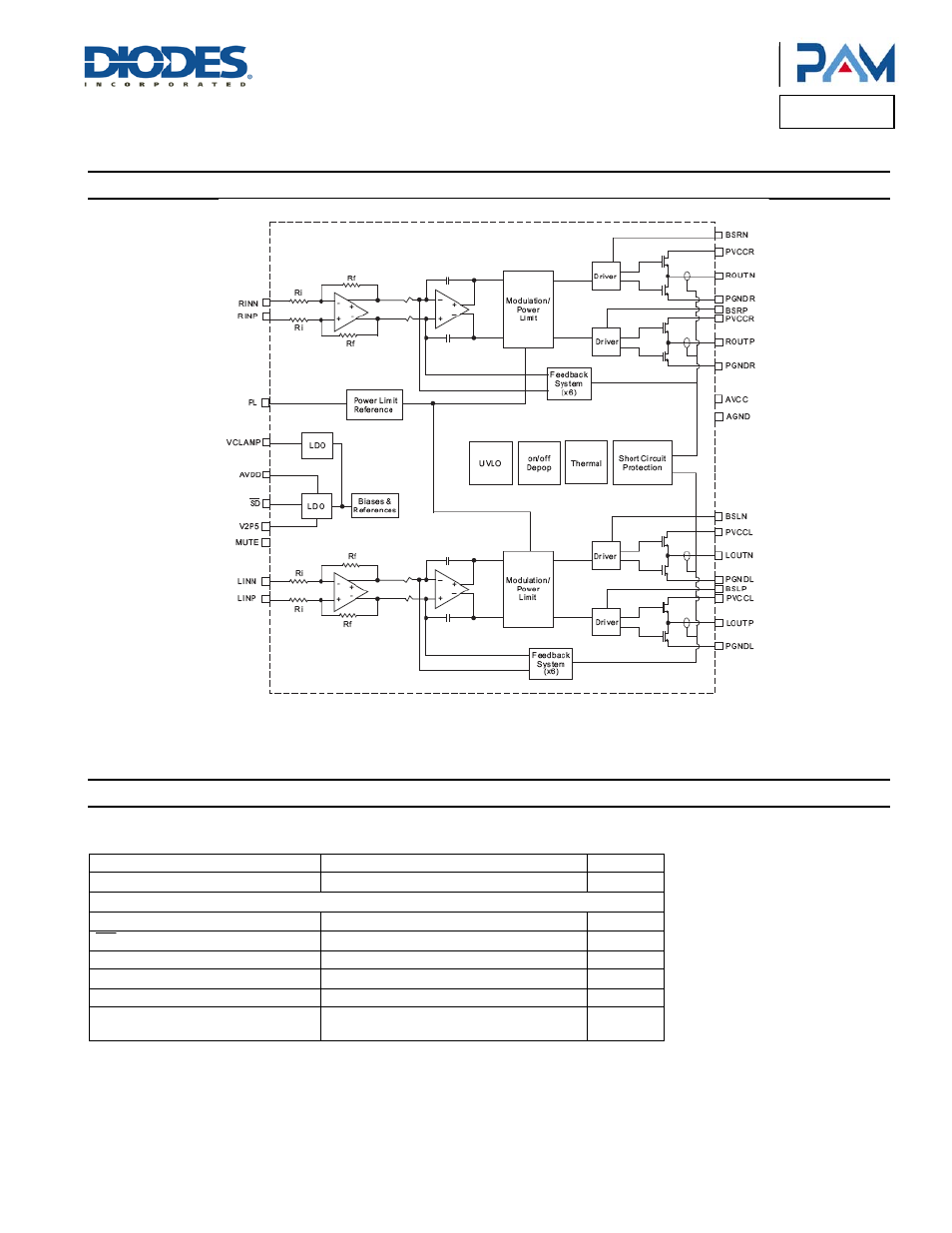

Functional Block Diagram
Note: Maximum Gain: R
I
= 12.5k, R
F
= 100k
Power Limit Function: R
I
and R
F
are adjustable.
Absolute Maximum Ratings
(@T
A
= +25°C, unless otherwise specified.)
These are stress ratings only and functional operation is not implied. Exposure to absolute maximum ratings for prolonged time periods may affect device reliability. All
voltages are with respect to ground.
Parameter Rating Unit
Supply Voltage V CC
-0.3 to +28.0 V
Input Voltage Range V I :
MUTE, PL 0 to 6.0 V
SD -0.3 to V
CC
V
RINN, RINP, LINN, LINP -0.3 to +6.0 V
Junction Temperature Range, T
J
-40 to +125 °C
Storage Temperature -65 to +150 °C
Lead Temperature 1,
6mm (1/16inch)
260 (5sec) °C
