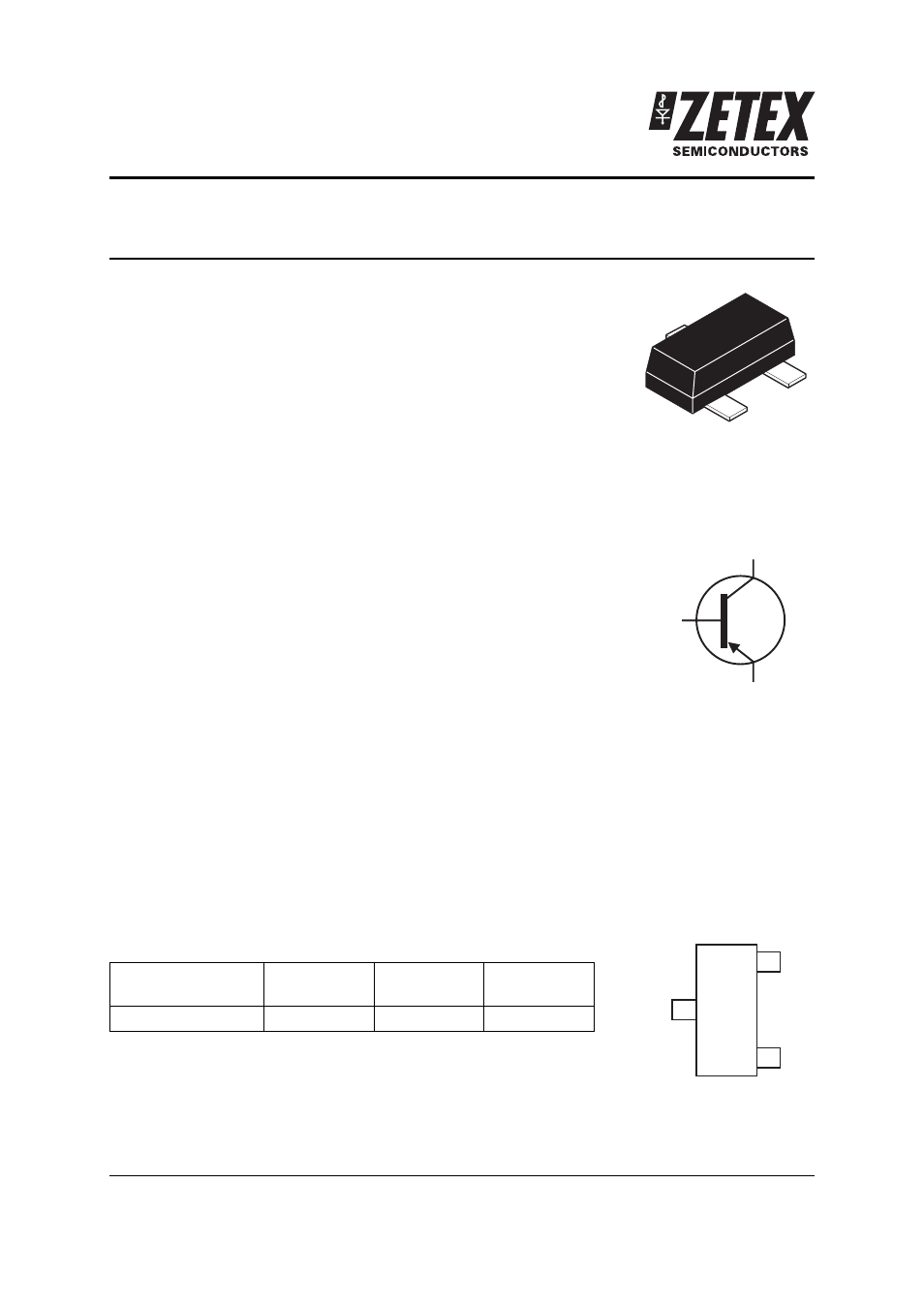

ZXTP19020DFF
20V, SOT23F, PNP medium power transistor
Summary
BV
CEO
> -20V
BV
ECO
> -4V
I
C(cont)
= 5.5A
V
CE(sat)
< 44mV @ 1A
R
CE(sat)
= 26m
Ω
P
D
= 1.5W
Complementary part number: ZXTN19020DFF
Description
Advanced process capability and package design have been used to
maximize the power handling and performance of this small outline
transistor. The compact size and ratings of this device make it ideally
suited to applications where space is at a premium
Features
•
High power dissipation SOT23 package
•
15A peak current
•
Guaranteed gain at a collector current of 10A
•
Very low saturation voltage
Applications
•
MOSFET and IGBT gate driving
•
Power switches
•
Motor control
Ordering information
Device marking
1D8
Device
Reel size
(inches)
Tape width
Quantity per
reel
ZXTP19020DFFTA
7
8 3000
C
E
B
C
E
B
Pinout - top view
