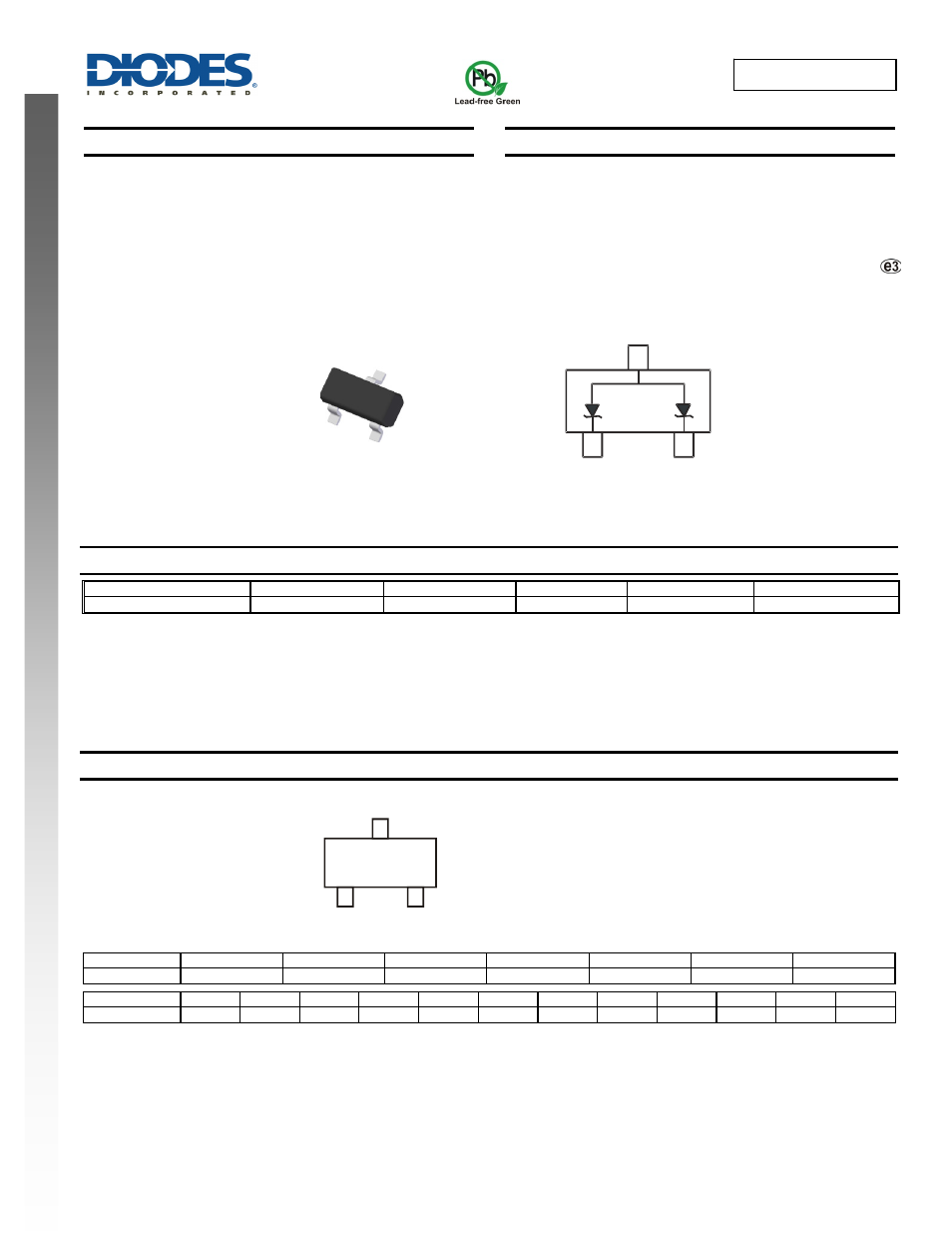

Diodes DESD32VS2SO - Manual

DESD32VS2SO
Document number: DS36364 Rev. 2 - 2
1 of 4
www.diodes.com
December 2013
© Diodes Incorporated
DESD32VS2SO
ADVAN
CE I
N
F
O
RM
ATI
O
N
NEW PROD
UC
T
32V CAN/LIN BUS PROTECTOR
Features
 Provides ESD Protection per IEC 61000-4-2 Standard:
Air – ±30kV, Contact – ±30kV
 200W Peak Power Dissipation
 Typically Used to Protect LIN and CAN Transceiver from ESD
and other Harmful Transient Voltage Events
 Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
 Halogen and Antimony Free. “Green” Device (Note 3)
Mechanical Data
 Case: SOT23
 Case Material: Molded Plastic, "Green" Molding Compound. UL
Flammability Classification Rating 94V-0
 Moisture Sensitivity: Level 1 per J-STD-020
 Terminals: Matte Tin Finish annealed over Alloy 42 leadframe
(Lead Free Plating). Solderable per MIL-STD-202, Method 208
 Weight: 0.009 grams (Approximate)
Ordering Information
(Note 4)
Product Compliance Marking Reel size(inches) Tape width(mm) Quantity per reel
DESD32VS2SO-7 AEC-Q101 A20 7 8 3,000/Tape & Reel
Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
Date Code Key
Year 2013 2014 2015 2016 2017 2018 2019
Code A B C D E F G
Month Jan Feb Mar Apr May Jun Jul Aug Sep Oct Nov Dec
Code 1 2 3 4 5 6 7 8 9 O N D
Device Schematic
Top View
A20 = Product Type Marking Code
YM = Date Code Marking
Y = Year (ex: A = 2013)
M = Month (ex: 9 = September)
A16
YM
A20
1 2
3
