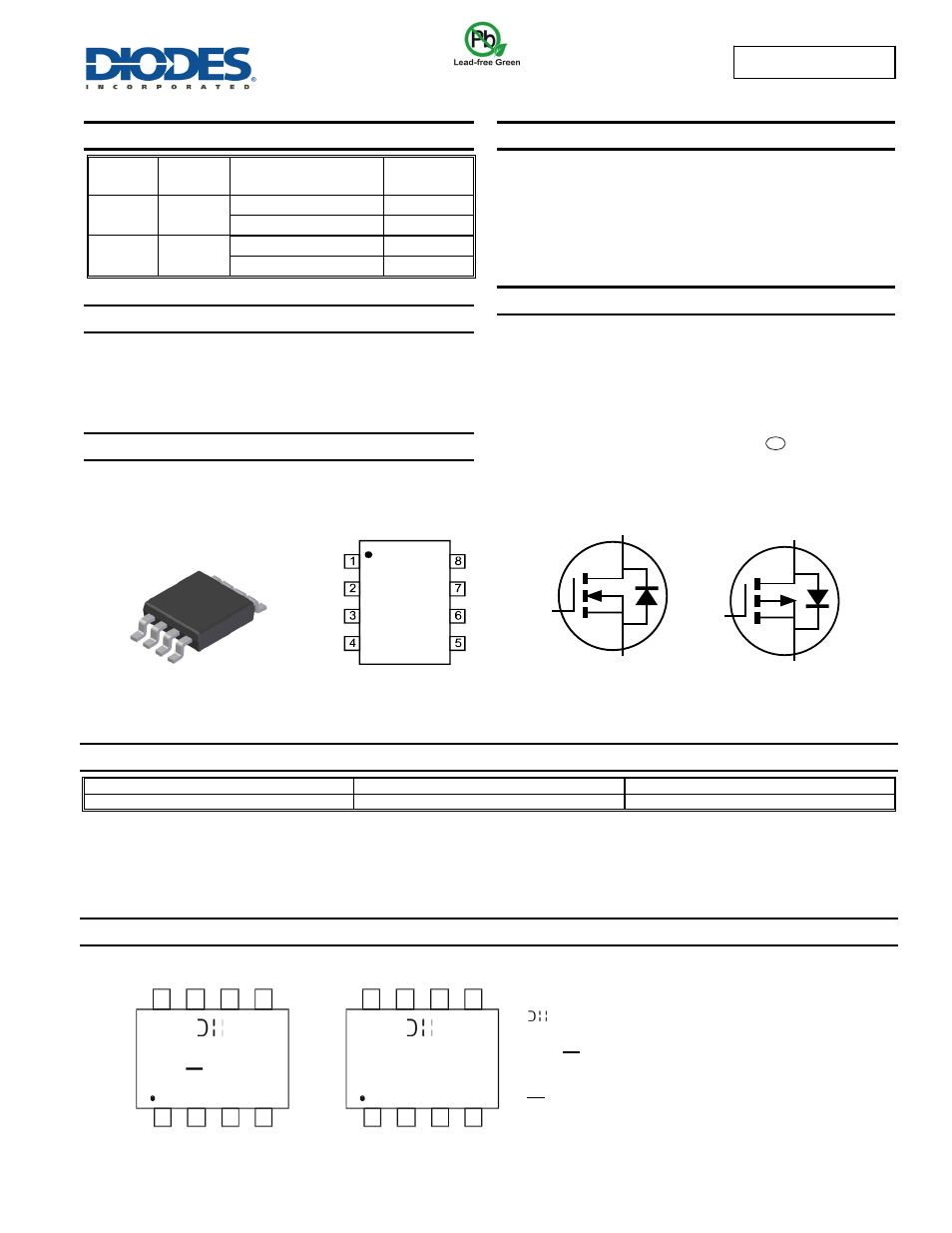

DMC4047LSD
COMPLEMENTARY PAIR ENHANCEMENT MODE MOSFET
Product Summary
Device
V
(BR)DSS
R
DS(on) max
I
D
T
A
= +25°C
Q2 40V
24mΩ @ V
GS
= 10V
6.9A
32mΩ @ V
GS
= 4.5V
6.0A
Q1 -40V
45mΩ @ V
GS
= -10V
-5.1A
55mΩ @ V
GS
= -4.5V
-4.5A
Description
This new generation MOSFET has been designed to minimize the on-
state resistance (R
DS(ON)
) and yet maintain superior switching
performance, making it ideal for high efficiency power management
applications.
Applications
DC-DC
Converters
Power Management Functions
Backlighting
Features and Benefits
Low Input Capacitance
Low
On-Resistance
Fast Switching Speed
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
Case:
SO-8
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminal Connections: See Diagram
Terminals: Finish – Matte Tin annealed over Copper leadframe
Solderable per MIL-STD-202, Method 208
Weight: 0.074 grams (approximate)
Ordering Information
(Note 4)
Part Number
Case
Packaging
DMC4047LSD-13
SO-8
2,500/Tape & Reel
Notes:
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. S
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. For packaging details, go to our website at
Marking Information
Top View
S2
D1
S1
D2
G1
G2
D2
D1
TOP VIEW
Internal Schematic
e3
N-Channel MOSFET
P-Channel MOSFET
D2
S2
G2
D1
S1
G
1
1
4
8
5
C4047SD
WW
YY
1
4
8
5
C4047SD
WW
YY
= Manufacturer’s Marking
C4047SD = Product Type Marking Code
YYWW = Date Code Marking
YY or YY = Year (ex: 13 = 2013)
WW = Week (01 - 53)
YY = Date Code Marking for SAT (Shanghai Assembly/ Test site)
YY = Date Code Marking for CAT (Chengdu Assembly/ Test site)
Chengdu A/T Site
Shanghai A/T Site
