S E M I C O N D U C T O R S
SUMMARY
BV
CEO
= -30V : R
SAT
= 31m ; I
C
= -5.5A
DESCRIPTION
Packaged in the SOT223 outline this new 5 th generation low saturation 30V
PNP transistor offers extremely low on state losses making it ideal for use in
DC-DC circuits and various driving and power management functions.
FEATURES
•
5.5 Amps continuous current
•
Up to 20 Amps peak current
•
Very low saturation voltages
•
Exceptional gain linearity down to 10mA
APPLICATIONS
•
DC - DC Converters
•
MOSFET gate drivers
•
Charging circuits
•
Power switches
•
Motor control
DEVICE MARKING
•
X5T949
ZX5T949G
ISSUE 1 - NOVEMBER 2003
30V PNP LOW SATURATION TRANSISTOR IN SOT223
1

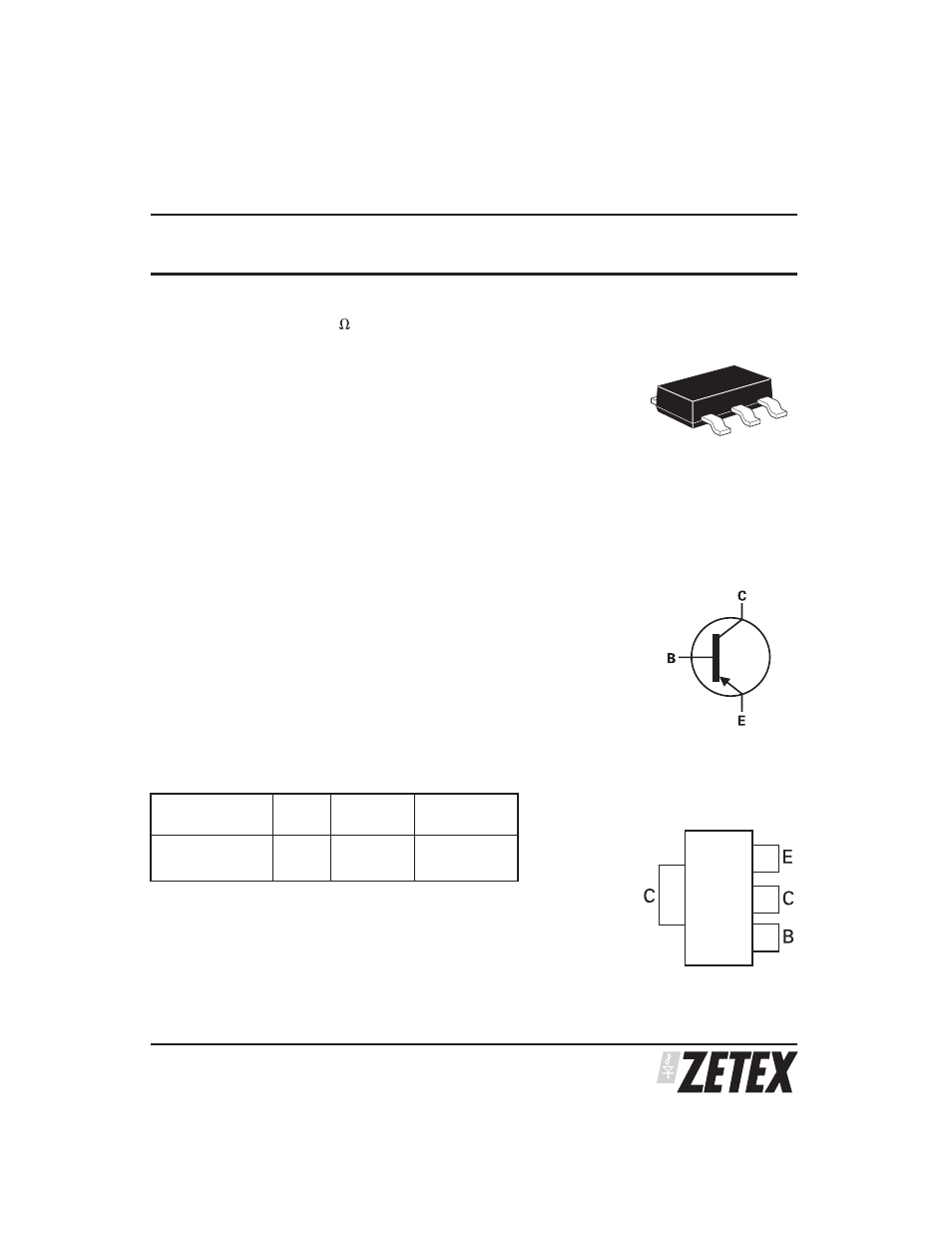

PINOUT
TOP VIEW
SOT223
DEVICE REEL
SIZE
TAPE
WIDTH
QUANTITY PER
REEL
ZX5T949GTA
ZX5T949GTC
7”
13”
12mm
embossed
1,000 units
4,000 units
ORDERING INFORMATION
