1-15 ASUS P5VDC-X
1.7 System memory
1.7.1 Overview
The motherboard comes with two 240-pin Double Data Rate 2 (DDR2) and
two 184-pin DDR Dual Inline Memory Modules (DIMM) sockets.
DDR2 DIMMS are notched differently to prevent misplacement in DDR DIMM
sockets.

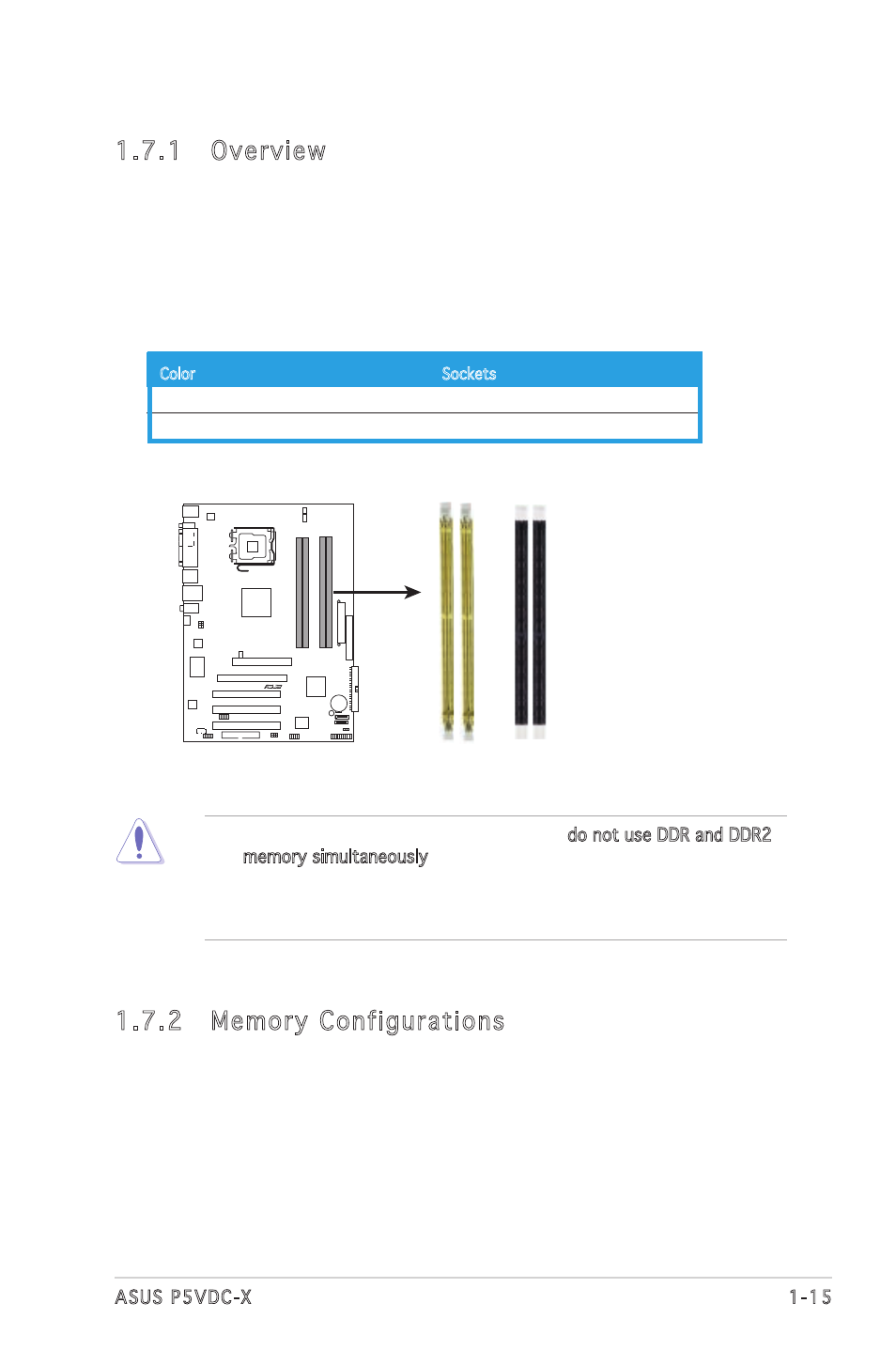

The following figure illustrates the location of the sockets:
1.7.2 Memory Configurations
You may install 256 MB, 512 MB and 1 GB unbuffered non-ECC DDR/DDR2
DIMMs into the DIMM sockets using the memory configurations in this
section.
• To prevent damage to the motherboard, do not use DDR and DDR2
memory simultaneously.
• Due to chipset resource allocation, the system may detect less than
2 GB system memory when you installed two 1 GB DDR2 or DDR
memory modules.
Color Sockets
Blue DDR_1 and DDR_2
Yellow DDR2_1 and DDR2_2
Below:Mic In Center:Line Out Top:Line In
P5VDC-X
R
DDR_B1 DDR_A1 DDR2_B1 DDR2_A1
P5VDC-X DDR & DDR2 DIMM Sockets
