WL-600g All-in- Wireless ADSL2/2+ Home Gateway Quick Start Guide
2
English

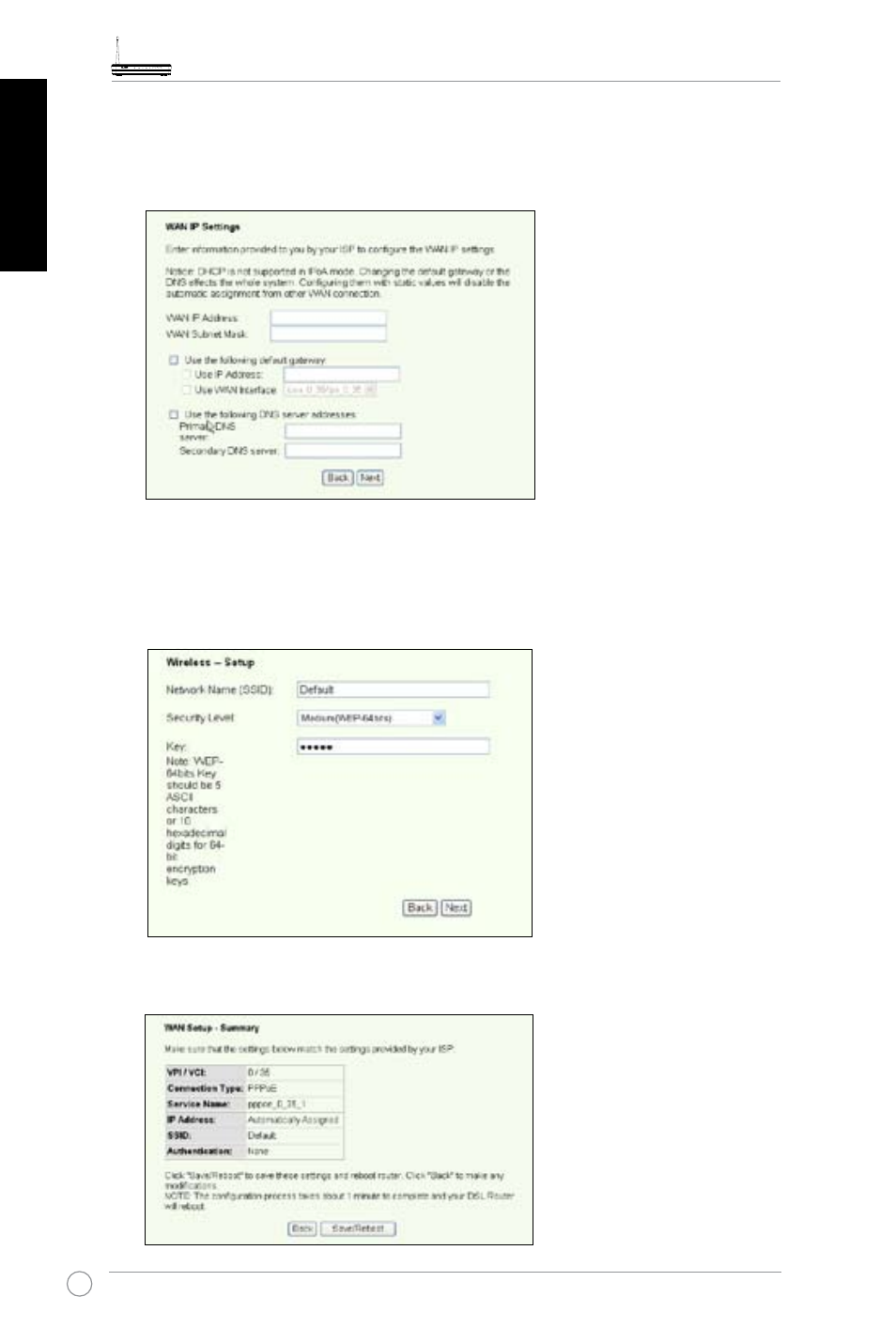

-- If your connection type is IPoA
Static IP user only. Input the WAN IP address assigned by your ISP, then click
Next.
Wireless Setup
1. Designate an SSID (network name) for WL-600g. Choose the security level then
input a key. The number of digit of your key depends on the security level you
choose. Refer to the note on the web page. When finished, click Next.
2. This page provides a summary of WL-600g WAN and wirelss configuration. Click
Save/Reboot to save and activate your configuration.
