32 ASUS A7V133-VM User’s Manual
Connectors
3. H/W SETUP
3. HARDWARE SETUP
12) Standard and Consumer Infrared Module Connector (5 pin IR)
This connector supports an optional wireless transmitting and receiving infrared
module. This module mounts to a small opening on system cases that support
this feature. You must also configure the setting through UART2 Use Infrared
(see 4.4.2 I/O Device Configuration) to select whether UART2 is directed for
use with COM2 or IrDA. Use the five pins as shown in Back View and connect
a ribbon cable from the module to the motherboard’s SIR connector according
to the pin definitions.
A7V133-VM
®

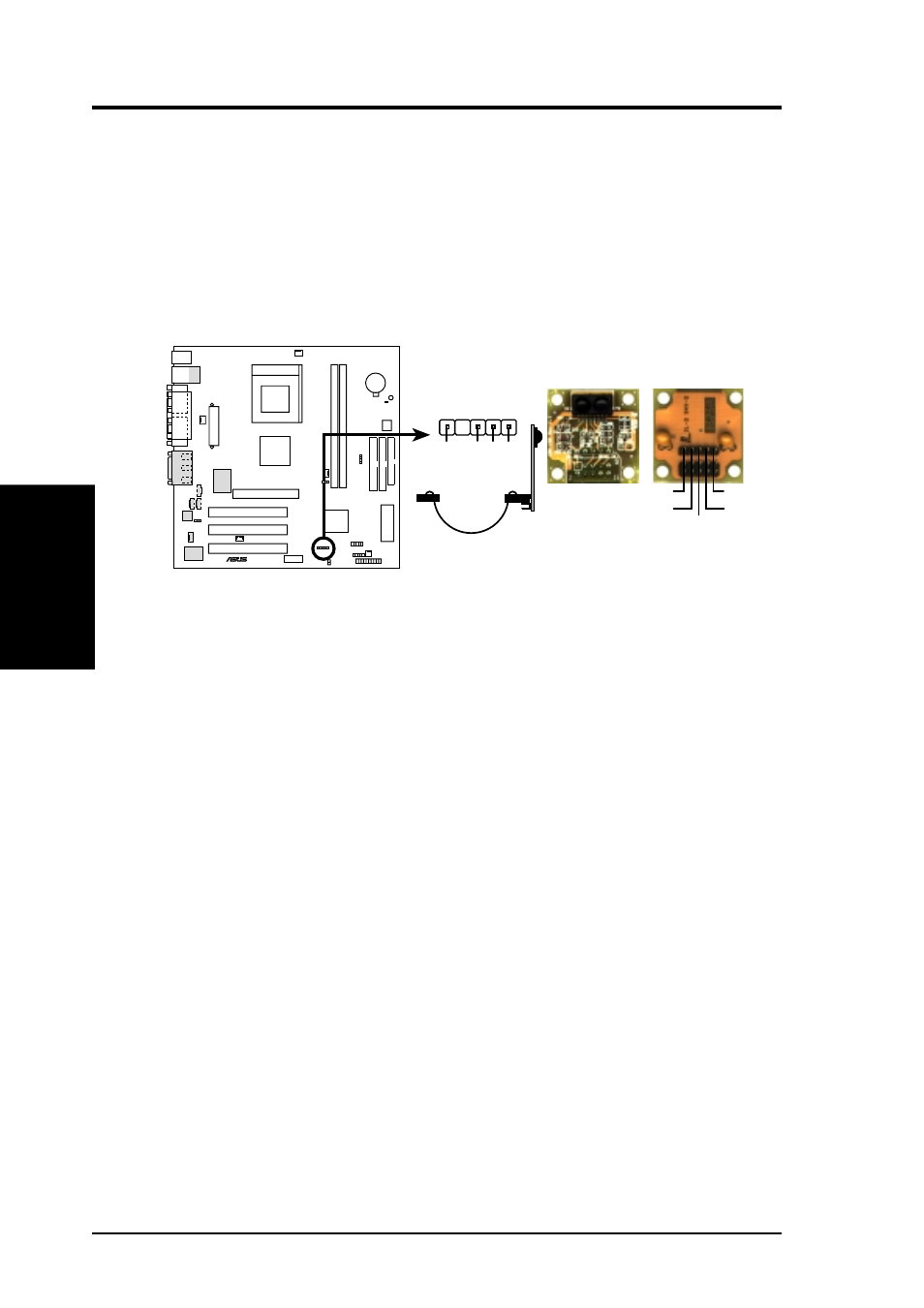

A7V133-VM Infrared Module Connector
Front View Back View
+5V IRTX
IRRX
(NC) GND
IR
+5V
IRRX IR
TX
GND
1
