1.7 System memory
1.7.1 1.7.1 1.7.1 1.7.1 1.7.1 Overview Overview Overview Overview Overview
The motherboard comes with three 184-pin Double Data Rate (DDR) Dual
Inline Memory Modules (DIMM) sockets.

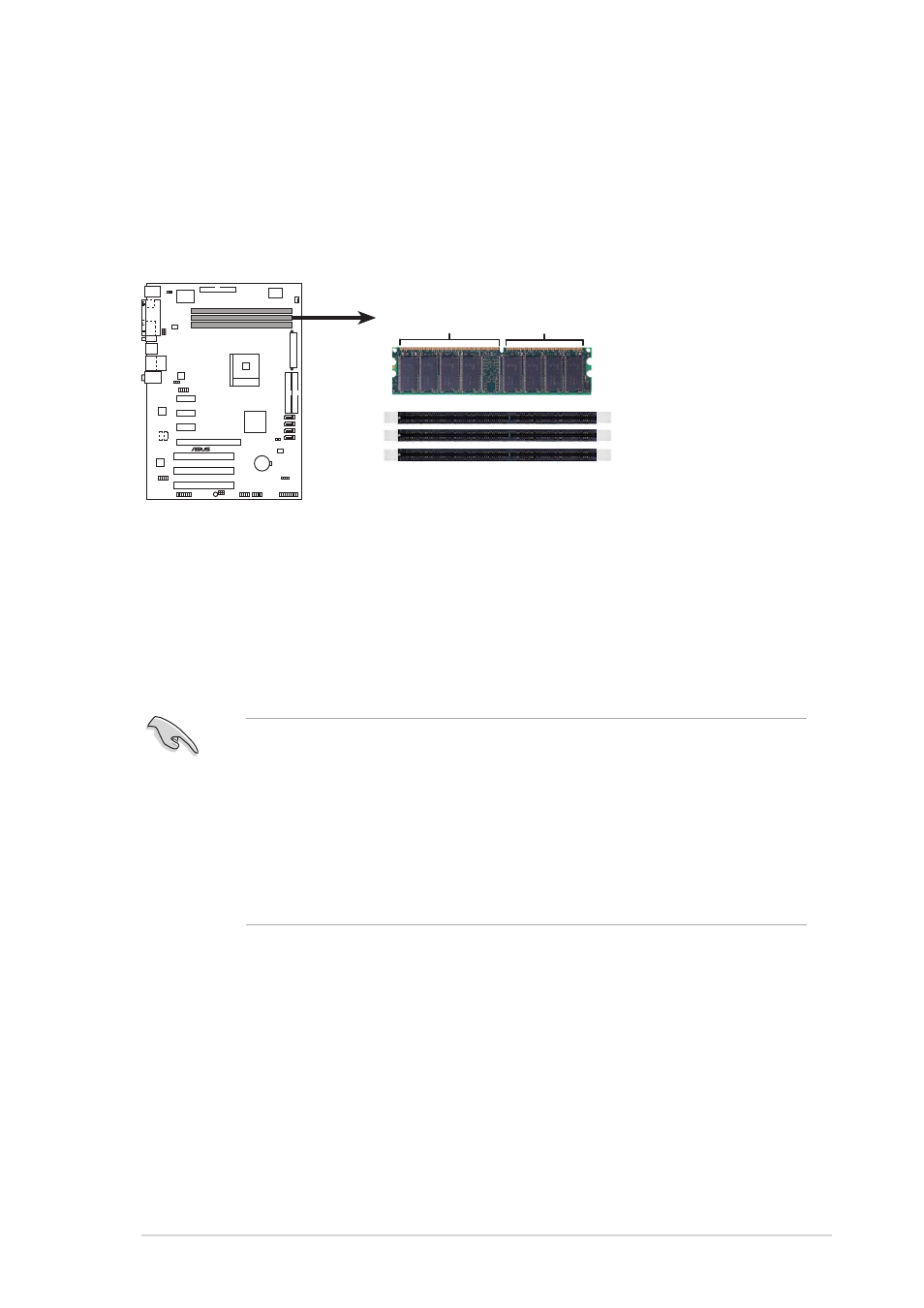

The following figure illustrates the location of the sockets:
1.7.2 1.7.2 1.7.2 1.7.2 1.7.2 Memory Configurations Memory Configurations Memory Configurations Memory Configurations Memory Configurations
You may install 256 MB, 512 MB, and 1 GB unbuffered non-ECC DDR DIMMs
into the DIMM sockets using the memory configurations in this section.
• Always install DIMMs with the same CAS latency. For optimum
compatibility, we recommend that you obtain memory modules from
the same vendor.
• Due to chipset resource allocation, the system may detect less than
3 GB system memory when you installed three 1 GB DDR memory
modules.
• This motherboard does not support memory modules made up of
128 Mb chips or double sided x16 memory modules.
K8N4-E SE
®
K8N4-E SE 184-pin DDR DIMM sockets
80 Pins 104 Pins
DIMM2
DIMM3
DIMM1
