34 ASUS A7S-VM User’s Manual
3. HARDWARE SETUP
Connectors
3. H/W SETUP

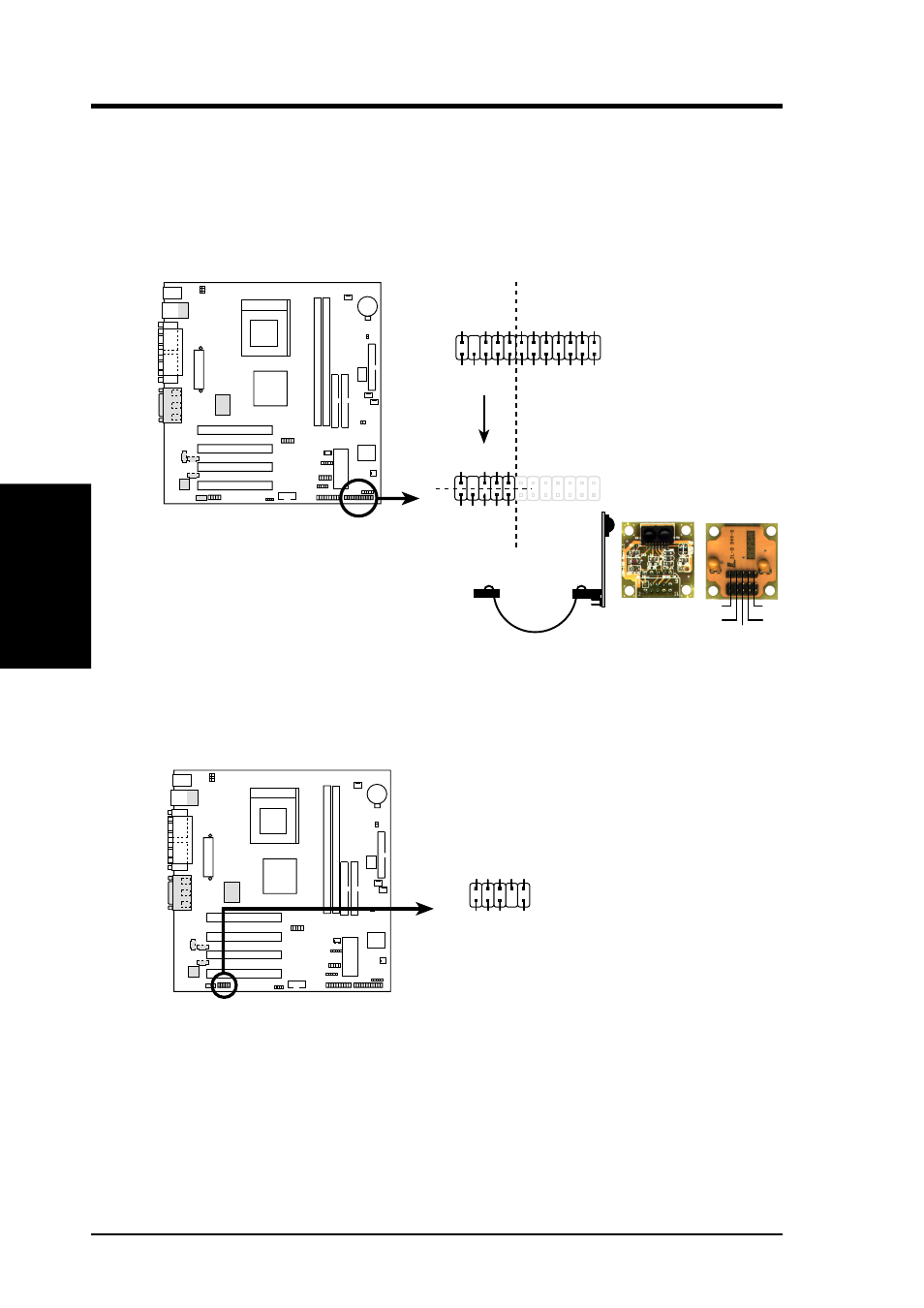

11) ASUS iPanel Connector (24-1 pin AFPANEL)
This connector allows you to connect an optional ASUS iPanel, an easy-to-access
drive bay with front I/O ports and status LEDs. If you are not using an ASUS
iPanel, you can connect an optional wireless transmitting and receiving infrared
module to the SIR connector.
A7S-VM Front Panel Connector
+5VSB
NC
CHASSIS#
+5 V
PCIRST#
GND
CIRRX
EXTSMI#
MLED-
NC
BA
TT NC
SMBDA
T
A
GND +3VSB IRRX IR
TX
LOCKKEY NC NC
+5V
SMBCLK
+5VSB
NC
+5 V
GND
CIRRX
NC
GND IRRX IR
TX
CIR
SIR
IR_CON
AFPANEL
Standard Infrared (SIR)
Front View Back View
+5V IRTX
IRRX
(NC) GND
A7S-VM
A7S-VM
A7S-VM Audio Panel Connector
MICPWR
Line in_R Line in_L
MIC2
Line out_L
AGND
AGND2
AGND3 Line out_R
AAPANEL
12) ASUS iPanel Audio Connector (10-1 pin AAPANEL)
This connector accommodates the optional ASUS iPanel to allow front panel
audio control.
