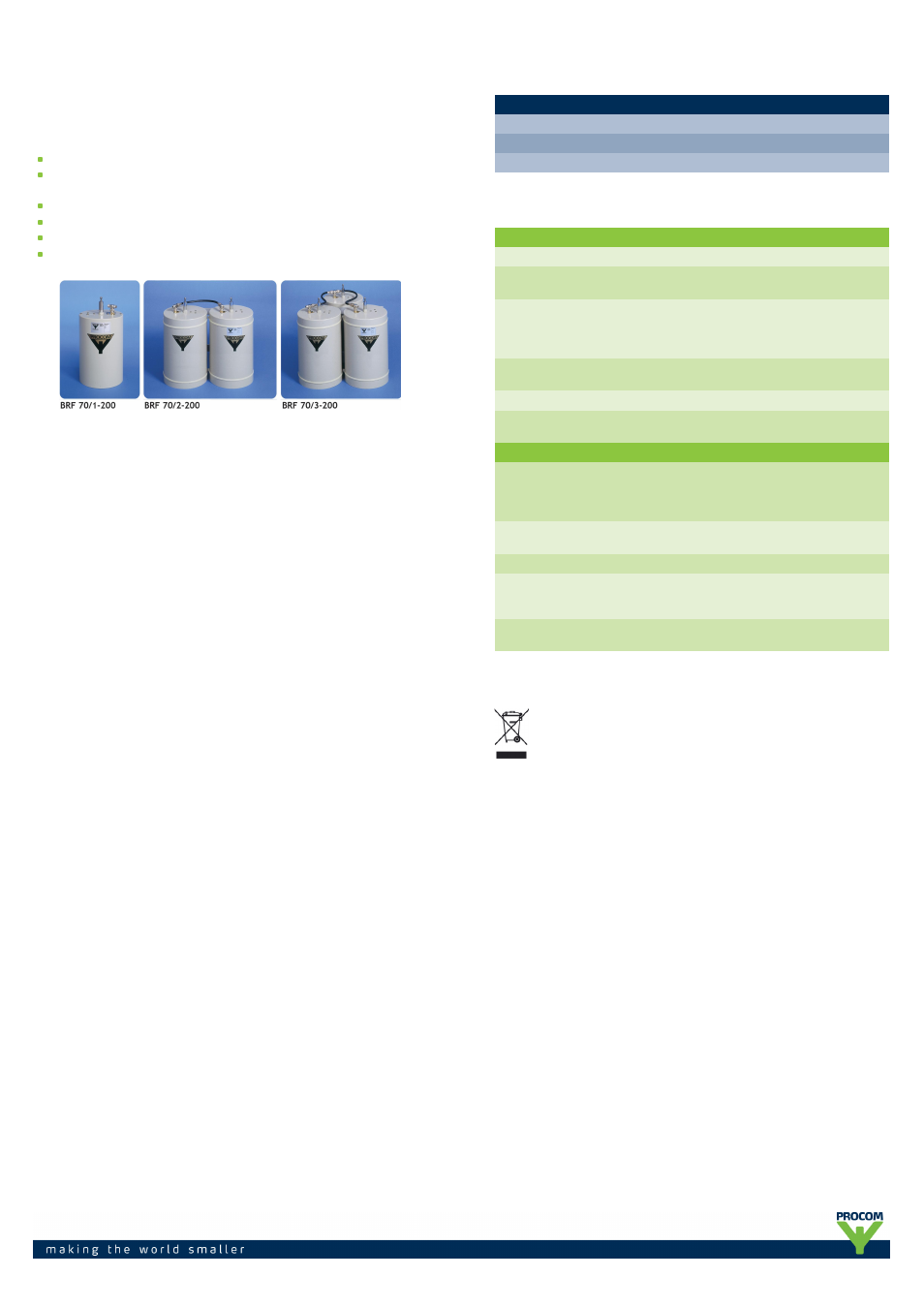

Procom BRF 70-...-200 User Manual
Brf 70

BRF 70/...-200
Band-Reject Filters for the 450 MHz Band
DESCRIPTION
High power base station band-reject filters for the 380 – 470 MHz range.
The use of large ø200 mm cavities means a high Q,
resulting in a very narrow notch bandwidth.
The large dimensions also mean a high power rating.
Unloaded Q of a single cavity is approx. 7000.
High frequency stability on temperature and power.
19” mounting brackets are available as an option.
ORDERING DESIGNATIONS
TYPE
PRODUCT NO.
BRF 70/1-200
200001943
BRF 70/2-200
200001239
BRF 70/3-200
200001944
SPECIFICATIONS
ELECTRICAL
MODEL
BRF 70/1-200 BRF 70/2-200
BRF 70/3-200
FREQ. RANGE
380 - 470
MHz
380 - 470 MHz
380 - 470 MHz
MAX. INPUT
POWER
350 W @
0.5 dB IL
200 W @
1.0 dB IL
350 W @
1.0 dB IL
200 W @
2.0 dB IL
350 W @
1.5 dB IL
200 W @
3.0 dB IL
1 dB NOTCH
BANDWIDTH
1 ‰ of f
c
1 ‰ of f
c
1 ‰ of f
c
IMPEDANCE
Nom. 50 Ω
Nom. 50 Ω
Nom. 50 Ω
SWR
(at resonance)
< 1.5
< 1.5
< 1.5
MECHANICAL
TEMP.
RANGE
RH 0-90%
non-condensing
–30° C →
+60° C
–30° C →
+60° C
–30° C →
+60° C
FREQ.
STABILITY
Approx. 1.5
ppm/° C
Approx. 1.5
ppm/° C
Approx. 1.5
ppm/° C
CONNECTORS
N-female
N-female
N-female
DIMENSIONS
ø200 x
303 mm
L:200 x W:400
x
H:303 mm
L::200 x W:600 x
H:303 mm
WEIGHT
Approx.
2.3 kg
Approx.
4.9 kg
Approx.
7.5 kg
PROCOM A/S reserve the right to amend specifications
without prior notice.
06/04/11
