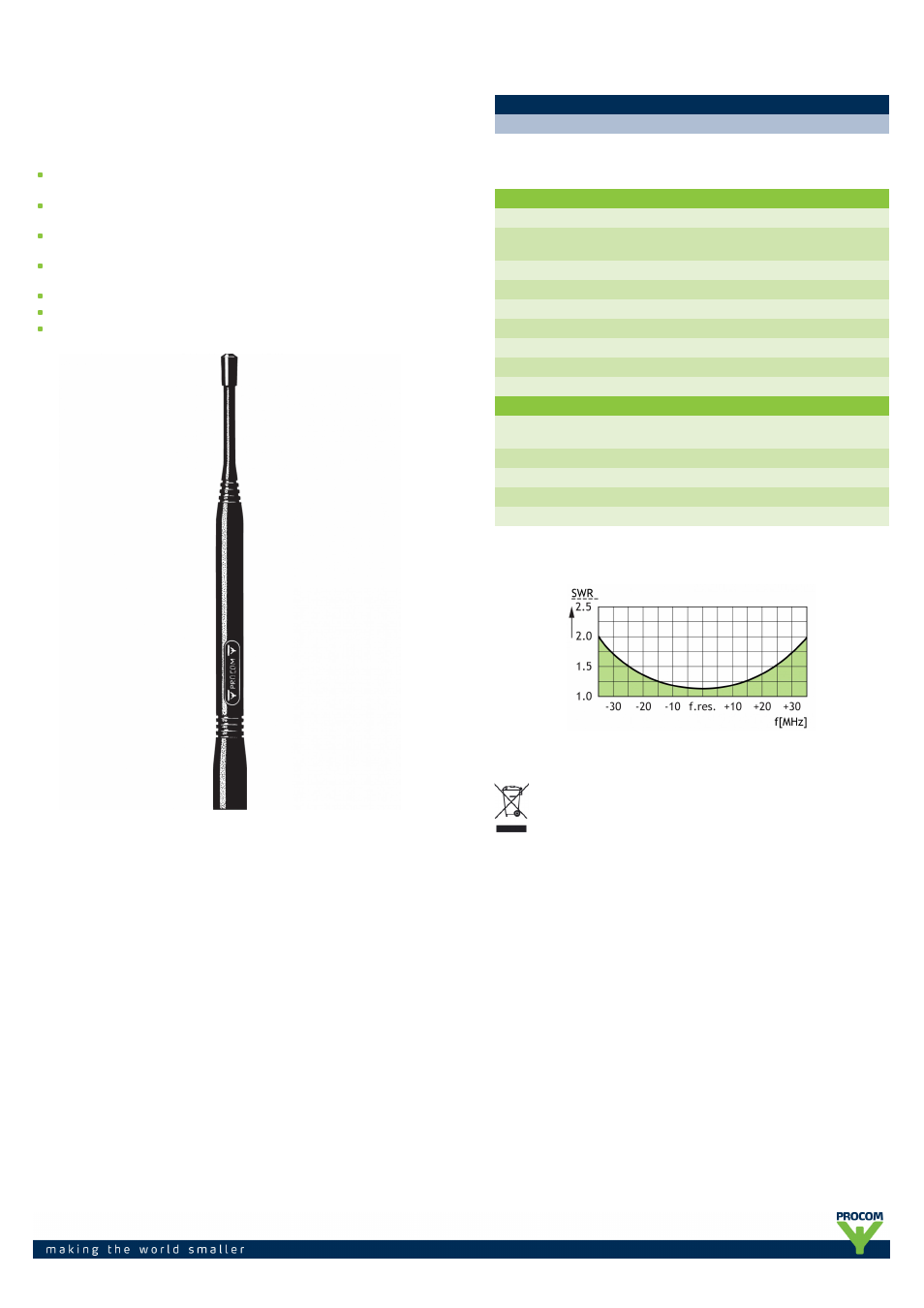

ELF 1300/...-TNC
"Elevated-Feed" ½ λ Dipole Antenna for Portable Equipment
in the 1300 MHz Band
DESCRIPTION
Flexible skirt dipole antenna element built into an elastic shroud of hard-
wearing and environment-proof plastics.
“Elevated feed” ½ λ-dipole antenna element – groundplane
independent.
High gain and efficient decoupling from the portable equipment due to
half-wave design.
5 dB gain (typ.) compared to a ¼ λ antenna whip on the same
equipment.
Highest quality materials in a modern “High-Tech” design.
Delivered factory tuned to customer’s specified frequency.
Provided with TNC (male) connector.
ORDERING DESIGNATIONS
TYPE
PRODUCT NO.
ELF 1300/...-TNC
140000210
SPECIFICATIONS
ELECTRICAL
MODEL
ELF 1300/...-TNC
ANTENNA TYPE
Elevated feed ½ λ skirt dipole antenna for
portable equipment
FREQUENCY
1200 – 1300 MHz
IMPEDANCE
Nom. 50 Ω
POLARIZATION
Vertical
GAIN
5 dB (compared to a ¼ λ portable antenna)
BANDWIDTH
≥ 70 MHz @ SWR ≤ 2.0
SWR
< 1.3 @ f. res.
MAX. POWER
25 W
MECHANICAL
MATERIALS
Thermoplastic rubber
Brass
COLOUR
Black
TOTAL HEIGHT
Approx. 210 mm
WEIGHT
Approx. 40 g
CONNECTOR
TNC
TYPICAL SWR CURVES
PROCOM A/S reserve the right to amend specifications
without prior notice.
