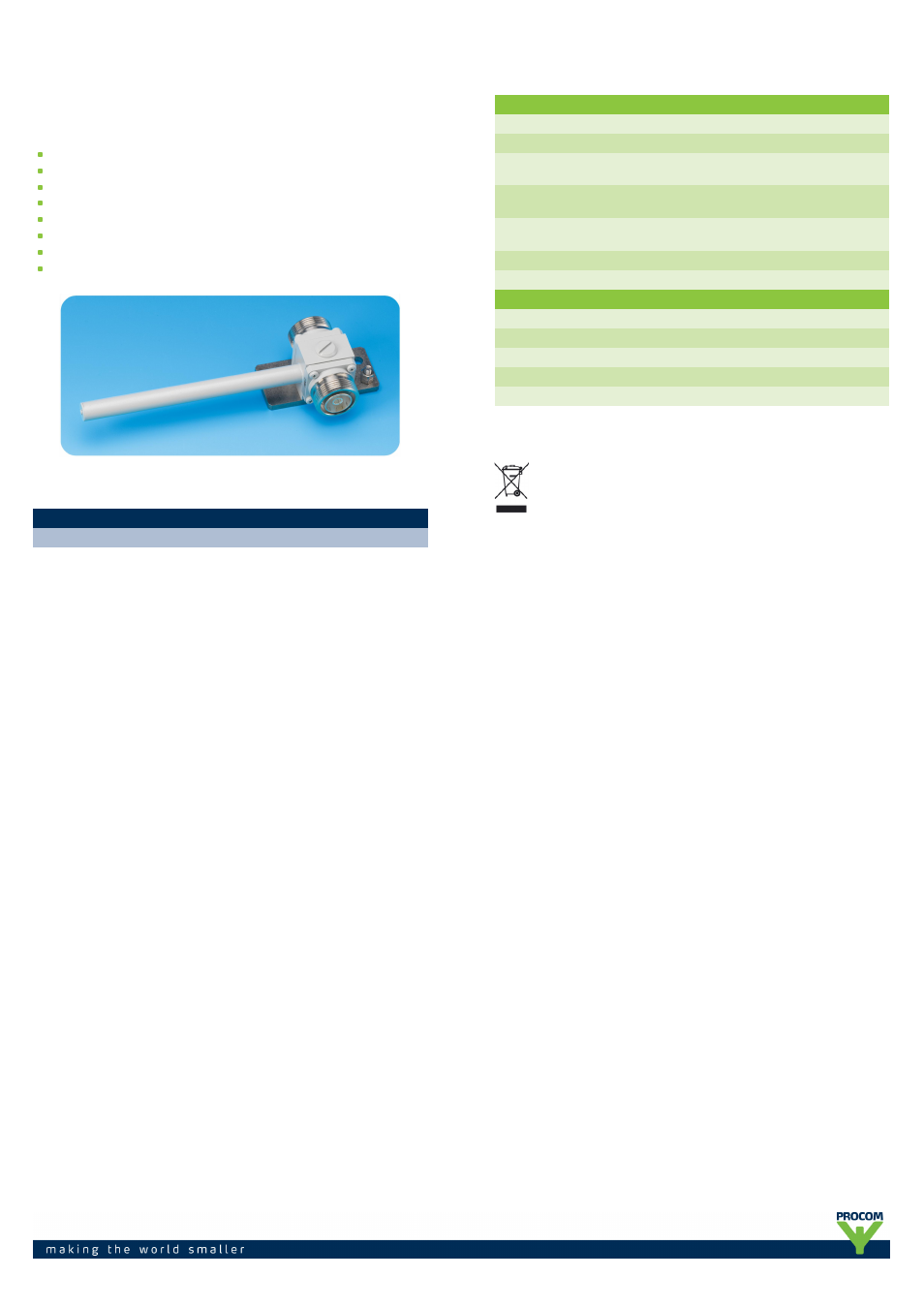

LGP 7/16-...
380 - 512 MHz
DESCRIPTION
Quarter-wave Lightning Protector.
Integrated High-Pass - characteristic.
Very low insertion loss - typical < 0.2.
No DC-short from station to ground.
7/16 DIN-female - 7/16 DIN-female connector.
Sturdy 6 mm bolt/thread for grounding when not grounded via mast.
Mounted on 5 mm stainless steel plate.
Mountable directly on tower leg up to ø54 mm.
ORDERING DESIGNATIONS
TYPE PRODUCT NO.
LGP 7/16-… 210001154
SPECIFICATIONS
ELECTRICAL
MODEL LGP 7/16-...
FREQUENCY RANGE 380 - 512 MHz (other ranges as option)
INSERTION LOSS
[S12]
< 0.2 dB
URGE CURRENT
HANDLING CAPABILITY
100 kA (test pulse 8/20 µs)
RESIDUAL PULSE ENERGY 0.03 μJ typ.
(test pulse 4 kV 1.2/50 μs, 2 kA 8/20 μs)
IMPEDANCE Nom. 50 Ω
SWR INPUT/OUTPUT Max. 1.2 typ. < 1.1 (>19 dB)
MECHANICAL
TEMP. RANGE -40° C → +80° C
WEATHER RESISTANCE According to IP65 - IEC 60529
CONNECTORS 7/16 DIN-female
DIMENSIONS (L x W x H) 60 x 40 x 195 mm
WEIGHT Approx. 535 g
PROCOM A/S reserve the right to amend specifications
without prior notice.
21/12/12
