CXL 900-6LW/...
Lightweight, 6 dBd, Omnidirectional Base Station and
Marine Antenna for the 900 MHz Band
DESCRIPTION
CXL 900-6LW/… is a 6 dBd, vertically polarized, omnidirectional base
station and marine antenna, covering the 900 MHz band in three
models.
Provided with the sturdy “LW” mast mount – a lightweight,
multipurpose, epoxy-coated mounting bracket made of non-corrosive
aluminium.
The accompanying U-bolts and fittings are made of stainless steel.
To be mounted on vertical or horizontal mast tubes, 16 to 54 mm in
outer diameter.
The cable can be led either on the outside or along the inside of the
mast tube.
Large bandwidth with respect to both SWR and gain.
Highly suitable for duplex operation with large spacing between the TX
and RX frequencies.
The carefully designed radiating element is sealed in a high-quality,
conical glass fibre tube with low wind-load, ensuring undisturbed
performance in all climates.
To substantially reduce noise caused by atmospherical discharges, all
metal parts in the antenna are DC-grounded. Consequently, the antenna
shows a DC-short across the coaxial cable.
The CXL 900-6LW/… is a vibration-proof, lightweight, slim-line, corrosion
resistant, modern style base station and marine antenna.
ORDERING DESIGNATIONS
TYPE FREQUENCY PRODUCT NO.
CXL 900-6LW/l 824 – 894 MHz 100000139
CXL 900-6LW/m 870 – 950 MHz 100000138
CXL 900-6LW/h 890 – 960 MHz 100000137
SPECIFICATIONS
ELECTRICAL
MODEL CXL 900-6LW/...
ANTENNA TYPE Collinear, broad-band
FREQUENCY Models within 824 – 960 MHz
IMPEDANCE Nom. 50 Ω
RADIATION Omnidirectional
POLARIZATION Vertical
GAIN 8 dBi 6 dBd
HALF POWER BEAMWIDTH 14°
BANDWIDTH
70 – 80 MHz
SWR ≤ 1.5
MAX. POWER 150 W
ANTISTATIC PROTECTION All metal parts DC-grounded
(Connector shows a DC-short)
MECHANICAL
TEMP. RANGE -30°C → +70°C
CONNECTOR N-female
WIND SURFACE Approx. 0.028 m²
WIND LOAD Approx. 35 N @ 160 km/h
COLOUR Marine white
MATERIALS Shroud: Polyurethane-coated glass fibre
Mounting bracket: Seawater resistant aluminium,
epoxy-coated
Clamps: Stainless steel
TOTAL HEIGHT 1.5 - 2.1 m (dep. on freq.)
DIA. IN TOP END 20 mm
DIA. IN BOTTOM END 23 mm
WEIGHT Approx. 1.4 kg
MOUNTING On 16 to 54 mm dia. mast tube

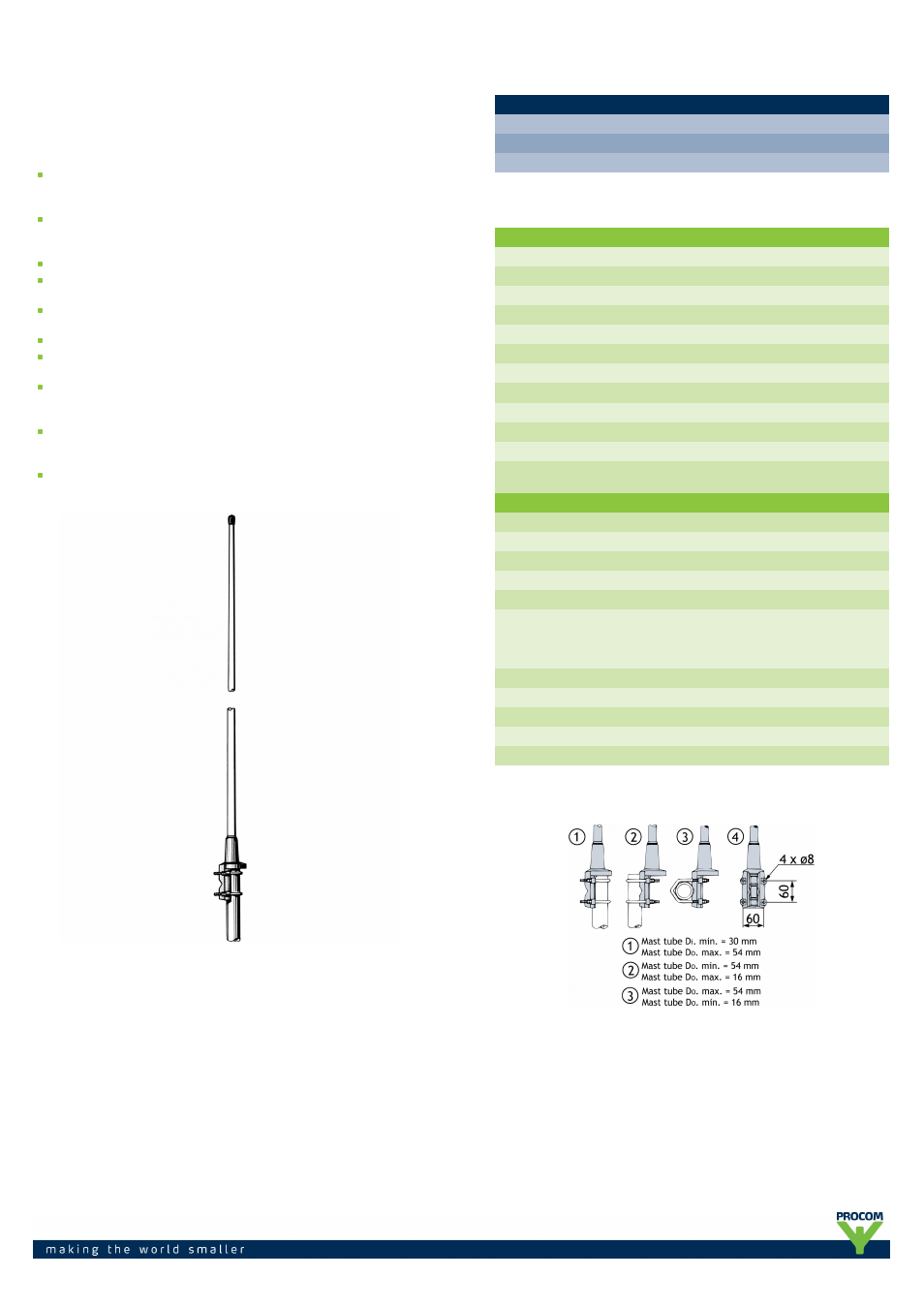

MULTI-PURPOSE MOUNTING BRACKET
PLEASE NOTE
The antenna is delivered with a DC-connection between the antenna
element and the mounting bracket.
