Optotronic – OSRAM CV Power supplies with 1…10 V User Manual
Page 2
OPTOTRONIC
®
OT 80/220-240/24 DIM P
Dimmable Constant Voltage LED Power supply for 24V LED - Modules
2011-08-18
AA328400055
OSRAM AG
www.osram.com
Steinerne Furt 62, 86167 Augsburg, Germany
No. 1, North Industrial Road
528000 Foshan Guangdong, P.R. China

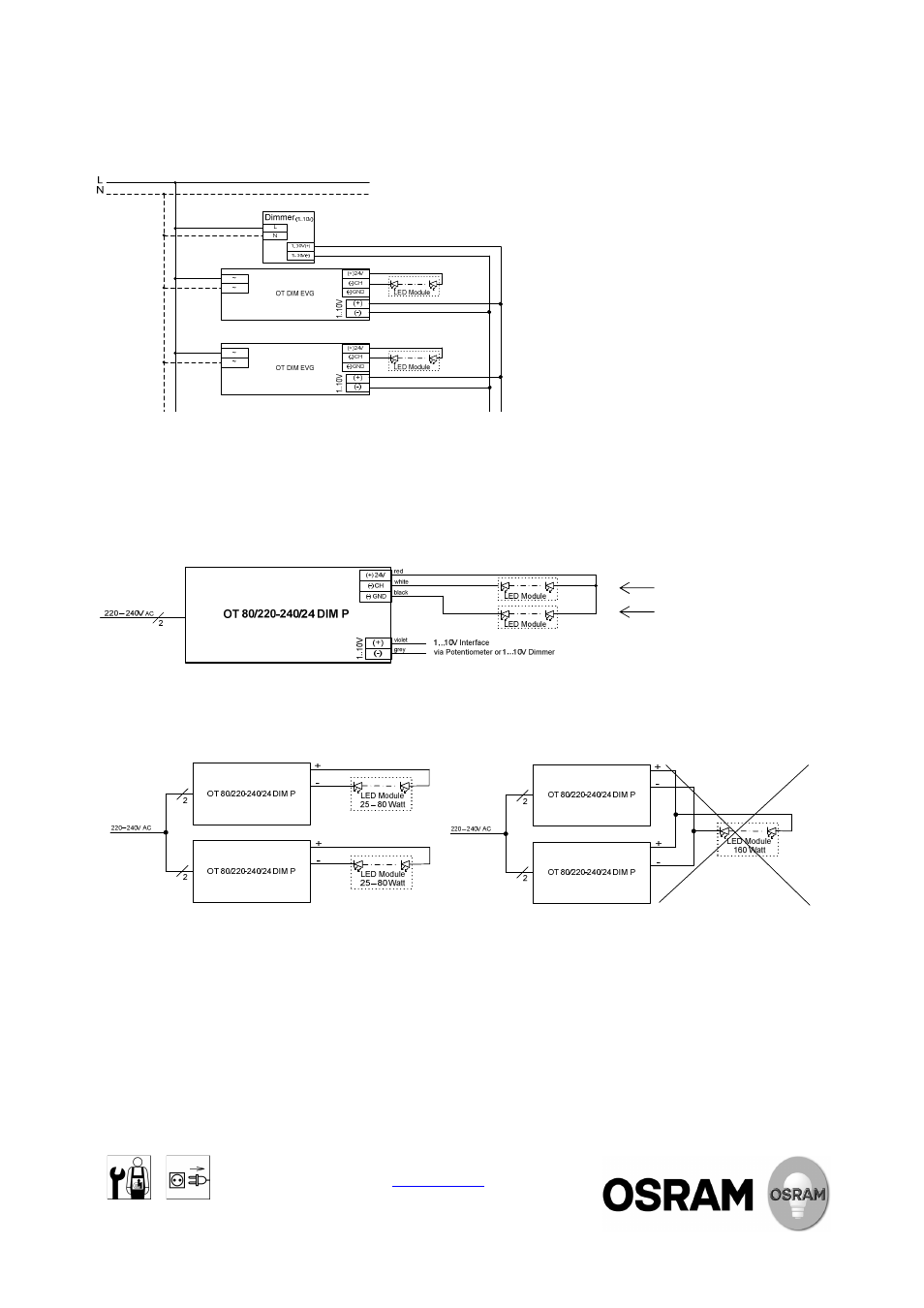

iii. Single control of more power supplies
Control of more OT 80/220-240/24 DIM P to an external Dimmer/Potentiometer. Thanks to the fully isolated 1…10V interface, two different kind of
dimming devices are possible
1)
Potentiometer - the value will be 47K Ohm /
n where n is the number of Power supplies to be controlled
2)
Active Dimmer - Dimmer is connected to mains (see Figure 1c)
iv. Combination of “dimmable” and “non dimmable” LED Modules
The maximum input capacitance of all connected LED modules (dimmable) should be less the 130nF.
3. Safety
Power supplies can be connected in parallel on the primary side, but not on the secondary side
Dimmable LED load
Non Dimmable LED load
