Ac/dc power modules, Tms series, 6 - 25 watt, Models

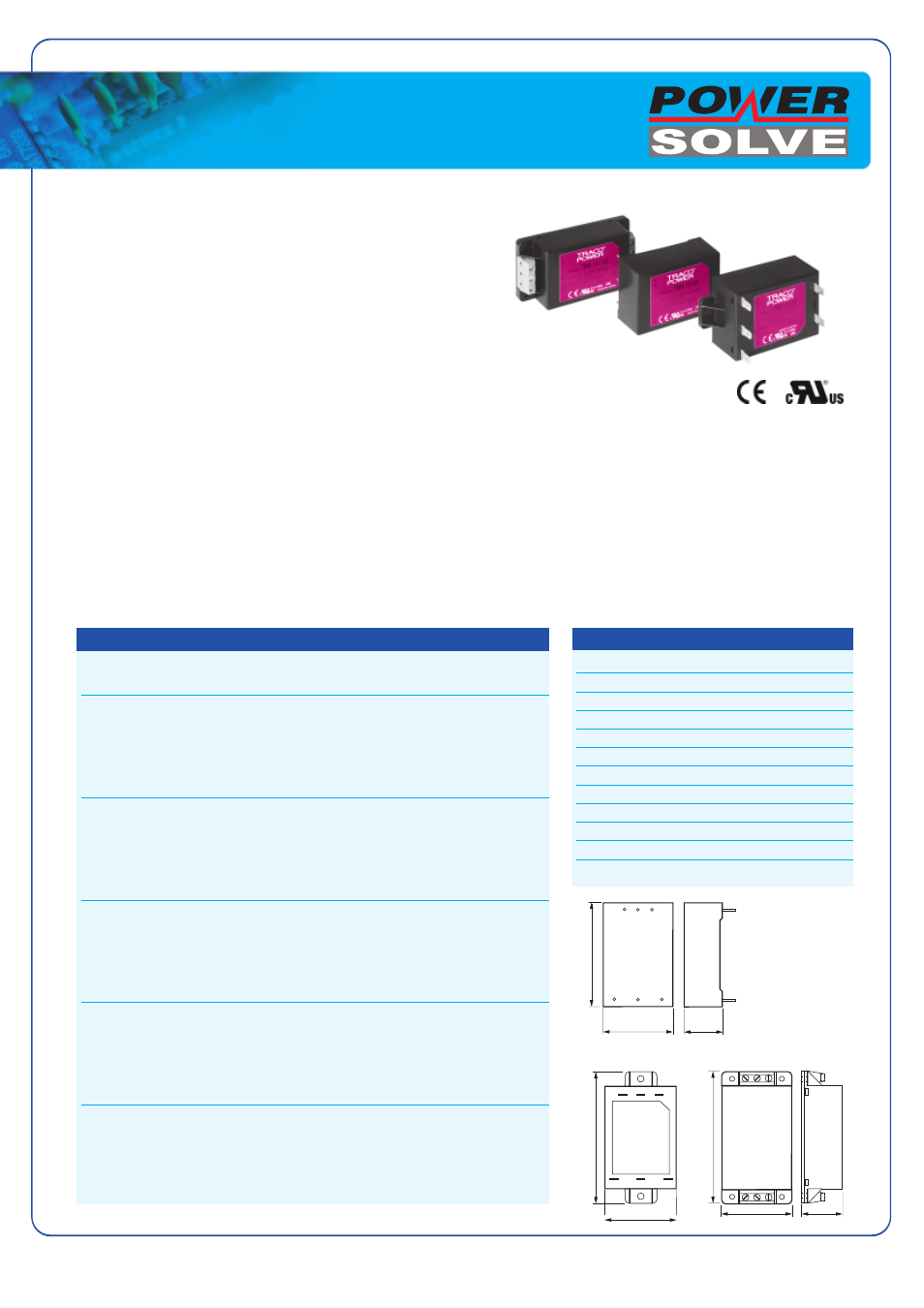

background image

Input voltage range:

85–264 VAC, 50/60 Hz 110–375 VDC

Line regulation:

±0.4% max.

Load regulation:

±1.0% max. for single output models ±2.0% max. for dual output models

Ripple & Noise:

<100 mVpk-pk (20 MHz BW)

EMI suppression:

EN 55011 class B, EN 55022 class B and FCC, level B

EMC immunity:

EN 61000-6-1

Output current limitation:

>130% Iout max., foldback, automatic recovery

Efficiency:

78% typ.

Operating temperature:

–25°C … +60°C, above 50°C derating 5%/°C, 5 Vout models: above 40°C derating 2.5%/°C

Safety standards / approvals:

cUL/UL 60950, IEC/EN 60950, CB-report

Degree of protection:

safety class l

Case:

plastic (UL 94V-0 rating)

Option:

kit for DIN-Rail mounting

www.powersolve.co.uk

Powersolve Electronics Ltd. 8A, Arnhem Road, Newbury, RG14 5RU. England

Tel:01635 521858 Fax: 01635 523771 Email: [email protected]

Order Code

Input voltage

Output voltage

Output current

max.

TMS 06105

5 VDC 1200 mA

TMS 06112

12 VDC

500 mA

TMS 06115

6 W

15 VDC

400 mA

TMS 06124

24 VDC

250 mA

TMS 06212

+ 12 VDC

250 mA

– 12 VDC 250 mA

TMS 06215

+ 15 VDC

200 mA

– 15 VDC 200 mA

*TMS 10105

5 VDC 2000 mA

*TMS 10112

12 VDC

900 mA

*TMS 10115

10 W

15 VDC

700 mA

*TMS 10124

24 VDC

450 mA

*TMS 10212

+ 12 VDC 450 mA

– 12 VDC 450 mA

*TMS 10215

+ 15 VDC

350 mA

– 15 VDC 350 mA

*°TMS 15105

5 VDC 3000 mA

*°TMS 15112

12 VDC 1300 mA

*°TMS 15115

15 W

15 VDC 1000 mA

*°TMS 15124

24 VDC

650 mA

*°TMS 15212

+ 12 VDC

650 mA

– 12 VDC 650 mA

*°TMS 15215

+ 15 VDC

500 mA

– 15 VDC 500 mA

*°TMS 25105

5 VDC 4600 mA

*°TMS 25112

12 VDC 2000 mA

*°TMS 25115

25 W

15 VDC 1600 mA

*°TMS 25124

24 VDC 1000 mA

*°TMS 25212

+ 12 VDC 1000 mA

– 12 VDC 1000mA

*°TMS 25215

+ 15 VDC

800 mA

– 15 VDC 800 mA

without suffix: PCB mounting Version

*suffix F: Chassis mounting with Faston-Tabs (Example TMS 25105 F)
°suffix C: Chassis mounting with Screw Terminal Block (Example TMS 25105 C)

=

Miniature encapsulated Power Supplies

=

3 Package Styles available:

– for PCB Mounting with Solder Pins

– for Chassis Mounting with FASTON-Tabs

– for Chassis Mounting with Screw Terminal Block

=

Universal Input 85–264 VAC

=

EMI meets 55022, Class B and FCC, Level B

=

Short Circuit Protection

AC/DC Power Modules

TMS Series, 6 - 25 Watt

Models

Type

Length

Width

Height

l

b

h

TMS 06

50 (1.97)

40 (1.57)

20 (0.79)

TMS 10

55 (2.17)

45 (1.77)

24 (0.94)

TMS 15

64 (2.52)

45 (1.77)

24 (0.94)

TMS 25

76 (2.99)

51 (2.01)

28 (1.10)

TMS 10F

75 (2.95)

45 (1.77)

24 (0.94)

TMS 15F

84 (3.31)

45 (1.77)

24 (0.94)

TMS 25F

96 (3.78)

51 (2.01)

29 (1.14)

TMS 15C

84 (3.31)

45 (1.77)

26.5 (1.04)

TMS 25C

96 (3.78)

51 (2.01)

29.5 (1.16)

Dimensions

w

Bottom view

PCB mounting Version

Chassis mounting with Faston-Tabs

l

w

l

h

Chassis mounting with Screw Terminal Block

w

h

6

5

4

1

2 3

l

Top view

Top view

() = Inches
