AC Input 90..132Vac / 184..265Vac , 47…63Hz , 250…375Vdc
AC Input Rating 115Vac<16.8A 230Vac<9.0A 250Vdc<5.0A 375Vdc<3.3A
Rated DC Voltage 0...15V 0...30V 0...50V 0...90V 0...130V 0...180V 0...240V
Overvoltage Protection 18Vdc 35Vdc 59Vdc 105Vdc 150Vdc 210Vdc 280Vdc
Rated DC Current 50A 33A 20A 11.2A 7.8A 5.6A 4.2A
Power Boost -25...+60°C <1min. 55A 36.3A 22A 12.3A 8.6A 6.1A 4.6A
Max. DC Current +70°C 37.5A 24.8A 15A 8.4A 5.9A 4.2A 3.2A
Ripple Peak 230Vac 20MHz 50mVpp 50mVpp 100mVpp 200mVpp 250mVpp 300mVpp 400mVpp
Sense function Compensation 2V per lead load, protective electrical separation ≤ 60Vdc
Remote Shutdown protective electrical separation ≤ 60Vdc
Analogue Interface see table, 4-20mA available option, protective electrical separation ≤ 60Vdc, work.res.=500 Ω
Pmax 1000W continuous

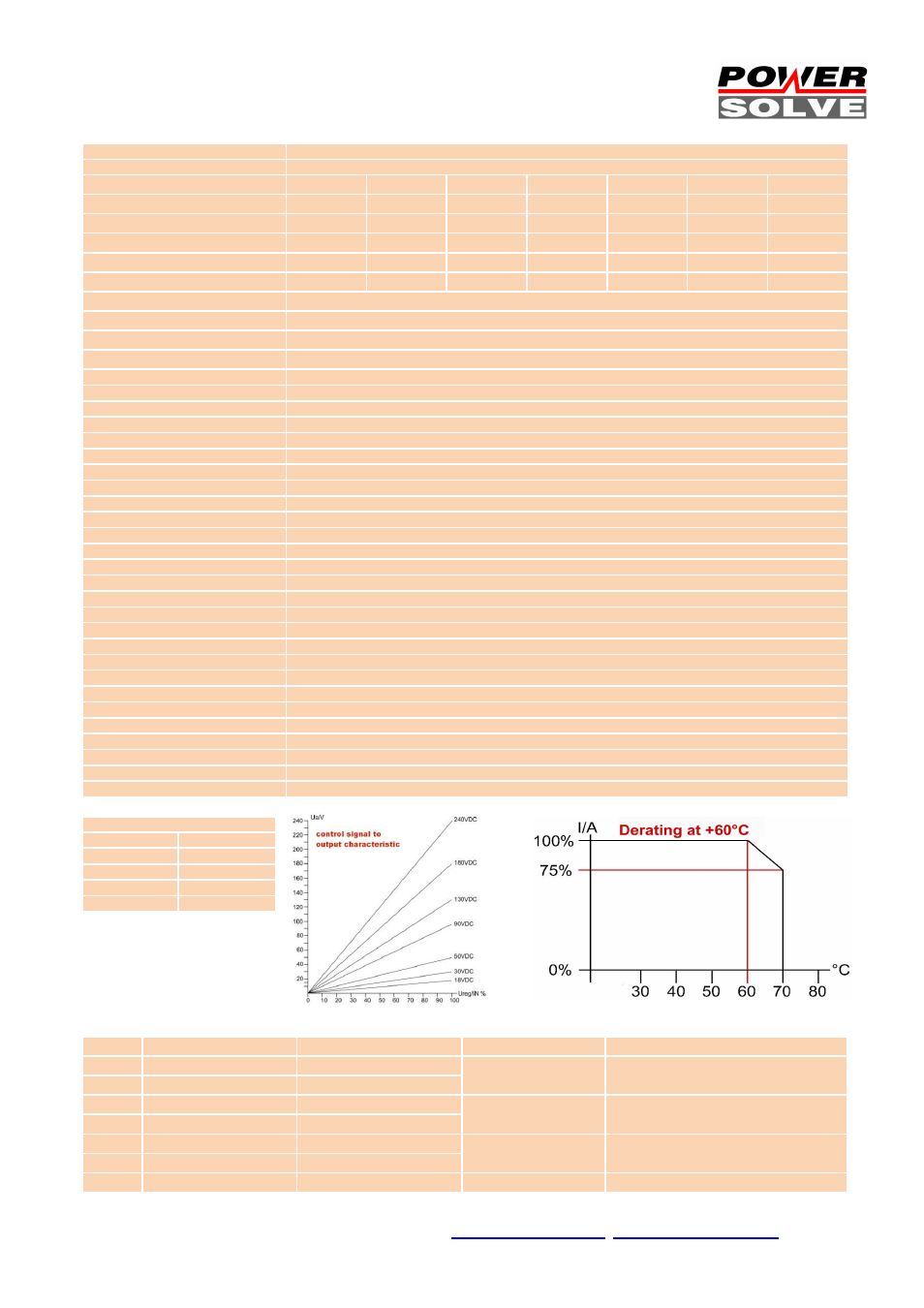

Derating +60°C...+70°C 2.5%/°C
Accurancy < ± 1.5%
Latency Interface t.b.d.
Load regulation < ± 0.2% 0-100%
Response Load Change <1ms 10-100%, 100-10%
Base Load None
Efficiency 230Vac 90% typical
Short Circuit Protection Continuous
Idling-proof Yes
Temperature Control Yes, thermal shutdown with auto recovery (+70°C, metering distance 10mm)
Hold Up Time > 30ms 230Vac
Inrush Current < 162A (230Vac)
Softstart 100ms typical
Cooling Controlled fan (manufacturer EBM-Papst)
Ambient Operating Temp. - 25°C…+70°C
Ambient Storage Temp. - 40°C…+85°C
Environment Humidity 95% non-condensing @ 25°C, climate class. 3k3, pollution rate II
EMI EN55022 class B
EMS EN61000-6-2,3
Safety cUL60950, EN60950-1
Safety class 1(A) VDE0805, VDE0100
Isolation Path > 8mm
Input / Output Galvanic insulated
Meantime By Failure (MTBF) 400000h (IEC61709)
Dimensions (HxWxD) 130x200x114,5mm
Weight 3000g
Screw Terminals (In/Out) AWG20...AWG6 , 0.5...16mm² (76A @ 40°C)
Interface
Progamme [V] 0...10Vdc
Progamme [A] 0...20mA
Progamme [A] 4...20mA ¹)
Shutdown
external
Sensing 2V lead load
¹) option
Ordering Information:
Output Type (DIN-Rail standard) Part Number Option Part Number
0...18V HSEUreg10001.18T 304.1053.001CA Backplate kit
(wallmount) 220.1002.001CA
0...30V HSEUreg10001.30T 304.1053.002CA
0...50V HSEUreg10001.50T 304.1053.003CA ADTW201
DC-repeater
304.1090.001CA
0...90V HSEUreg10001.90T 304.1053.004CA
0...130V HSEUreg10001.130T 304.1053.005CA 4..20mA option
Ad 420 to the type number example:
HSEUreg04801.15T420
0...180V HSEUreg10001.180T 304.1053.006CA
0...240V HSEUreg10001.240T 304.1053.007CA Screw terminal plug 3520037 2pol. LS5,08 (package=10pcs)
