Ds2411, Features, Ordering information

1-Wire is a registered trademark of Dallas Semiconductor.
1 of 11
052003
FEATURES
§ Unique, Factory-Lasered and Tested 64-Bit
Registration Number (8-Bit Family Code
Plus 48-Bit Serial Number Plus 8-Bit CRC
Tester); Guaranteed No Two Parts Alike
§ Standby Current <1µA
§ Built-In Multidrop Controller Enables
Multiple DS2411s to Reside on a Common
1-Wire
â
Network
§ Multidrop Compatible with Other 1-Wire
Products
§ 8-Bit Family Code Identifies Device as
DS2411 to the 1-Wire Master
§ Low-Cost TSOC, SOT23-3, and Flip-Chip
Surface-Mount Packages
§ Directly Connects to a Single-Port Pin of a
Microprocessor and Communicates at up to
15.4kbps
§ Overdrive Mode Boosts Communication
Speed to 125kbps
§ Operating Range: 1.5V to 5.25V, -40°C to
+85°C
ORDERING INFORMATION
PART
TEMP RANGE
PACKAGE
DS2411R/
T&R
-40
°C to +85°C
SOT23-3,
Tape-and-Reel
DS2411P
-40
°C to +85°C TSOC
DS2411P/
T&R
-40
°C to +85°C
TSOC,
Tape-and-Reel
DS2411X
-40
°C to +85°C
Flip Chip,
Tape-and-Reel

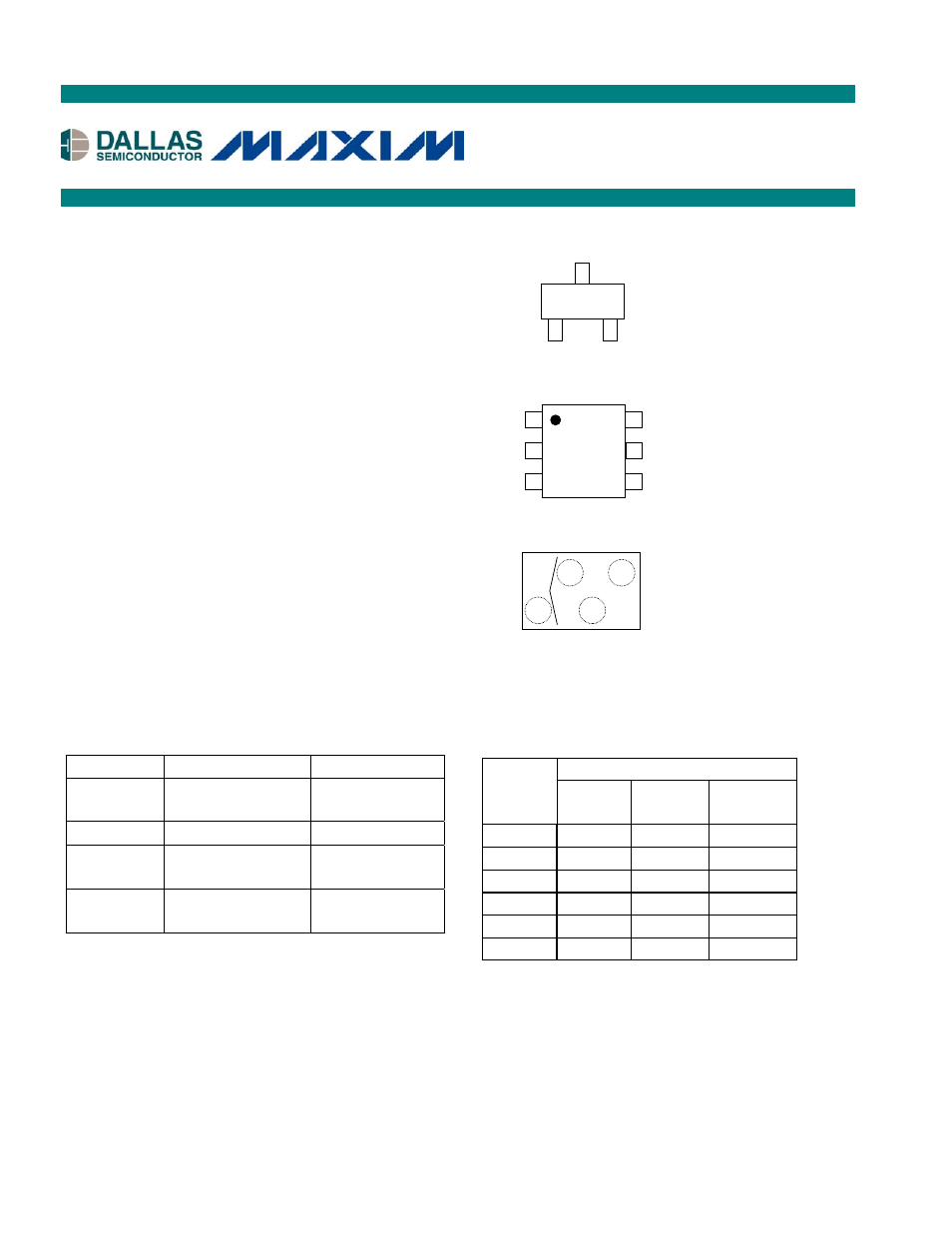

PIN CONFIGURATION
1
2
3
SOT23-3, Top View
TSOC, Top View
1
2
3
6
5
4
A
B
1
2
Flip Chip, Top view, bumps
not visible
PIN DESCRIPTION
PIN
NAME
SOT23
TSOC
FLIP
CHIP
I/O
1
2
A1
V
CC
2
6
B2
GND
3
1
B1
N.C.
—
3
A2
N.C.
—
4
—
N.C.
—
5
—
DESCRIPTION
The DS2411 silicon serial number is a low-cost, electronic registration number with external power
supply. It provides an absolutely unique identity that can be determined with a minimal electronic
interface (typically, a single port pin of a microcontroller). The DS2411’s registration number is a
factory-lasered, 64-bit ROM that includes a unique 48-bit serial number, an 8-bit CRC, and an 8-bit
family code (01h). Data is transferred serially through the Dallas Semiconductor’s 1-Wire protocol. The
external power supply is required, extending the operating voltage range of the device below typical
1-Wire devices.
DS2411
Silicon Serial Number with V
CC
Input
www.maxim-ic.com
