DS2132A/Q

041295 4/17

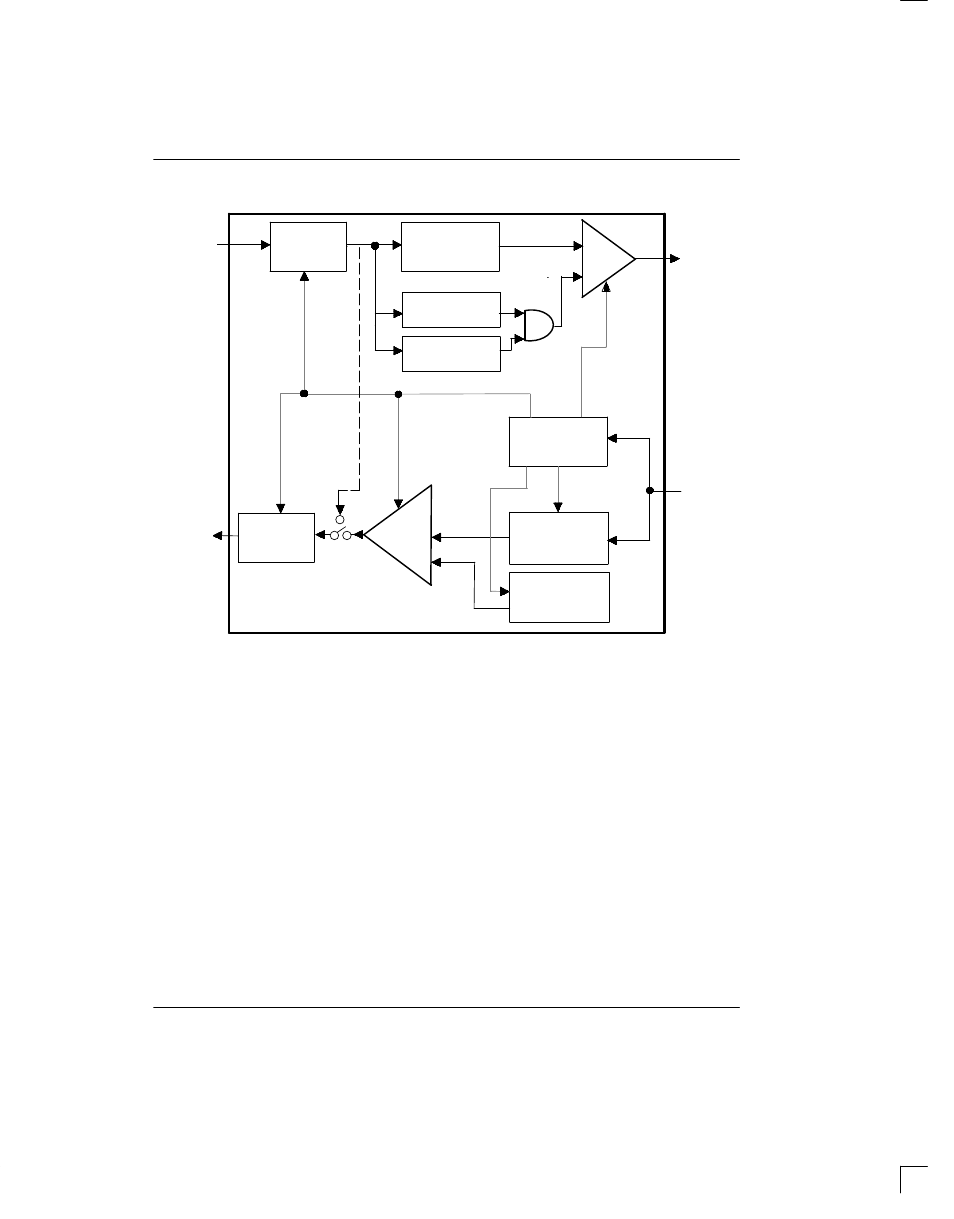

DS2132A BLOCK DIAGRAM Figure 2

Playback

Gain Control

Record

Gain Control

DTMF/Level/

FAX Tone

Detection

Speech

Compression

Command

Processor

Speech

Expansion

DTMF/Musical

Tone

Generation

PCMOUT

PCMIN

CDOUT

CDIN

Loopback

T

o

CODEC

“PCM” Side

T

o

Microcontroller

“Compressed Data” Side

Threshold

OPERATION OF THE CD AND PCM PORTS

As mentioned earlier, the DS2132A essentially contains
two separate serial ports, one for the DS2132A to micro-
controller interface (the CD Port ) and one for the CO-
DEC to DS2132A interface (the PCM Port). The Com-
pressed Data (CD) Port is used to send compressed
speech information from the DS2132A to the microcon-
troller and vice versa. The CD Port is also used to moni-
tor the current status of the DS2132A and it is used to
issue instructions to the DS2132A. The CD Port con-
sists of the CDIN, CDOUT, CLK, and FS pins (the CLK

and FS pins are shared with the CODEC). The PCM
Port is used to transfer uncompressed speech data be-
tween the DS2132A and the CODEC. It consists of the
PCMIN, PCMOUT, CLK, and FS pins. Figure 3 details
the DS2132A CD and PCM port signals. All commu-
nication begins with the frame sync (FS) signal. It indi-
cates to the DS2132A and the CODEC that a byte of in-
formation will follow. Note that the PCM Port operates
on a MSB first basis and the CD Port operates on a LSB
first basis.
