Electronics AC User Manual

Page 23

Power:

115 VAC, 50/60 Hertz, 50VA No internal fuse (1amp recommended)

Inputs:

Current Shunt Input (0-5A). Electronics Inc. P/N 999200 (included)

Voltage Signal Input (0-5Vdc)

Remote Command Setpoint Input (0 -10Vdc)

Enable (90 -115VAC)

Alarm Reset (90 -115VAC)

Outputs: Valve

Power:

60 Vdc PWM at 8 Hertz

Alarm Relay Contacts: 115VAC @ 1A

Excitation Voltage: +/- 12Vdc @ 100mA

Reference Voltage: +10Vdc @ 10mA

Weight:

4 Lbs. (1.8 kg)

Display Range: 0 - 1999 counts

Decimal Places: 1000 / 100.0 / 10.00

Alarm Band:

0 - 50% of full scale

Alarm Delay:

0 - 10 Seconds

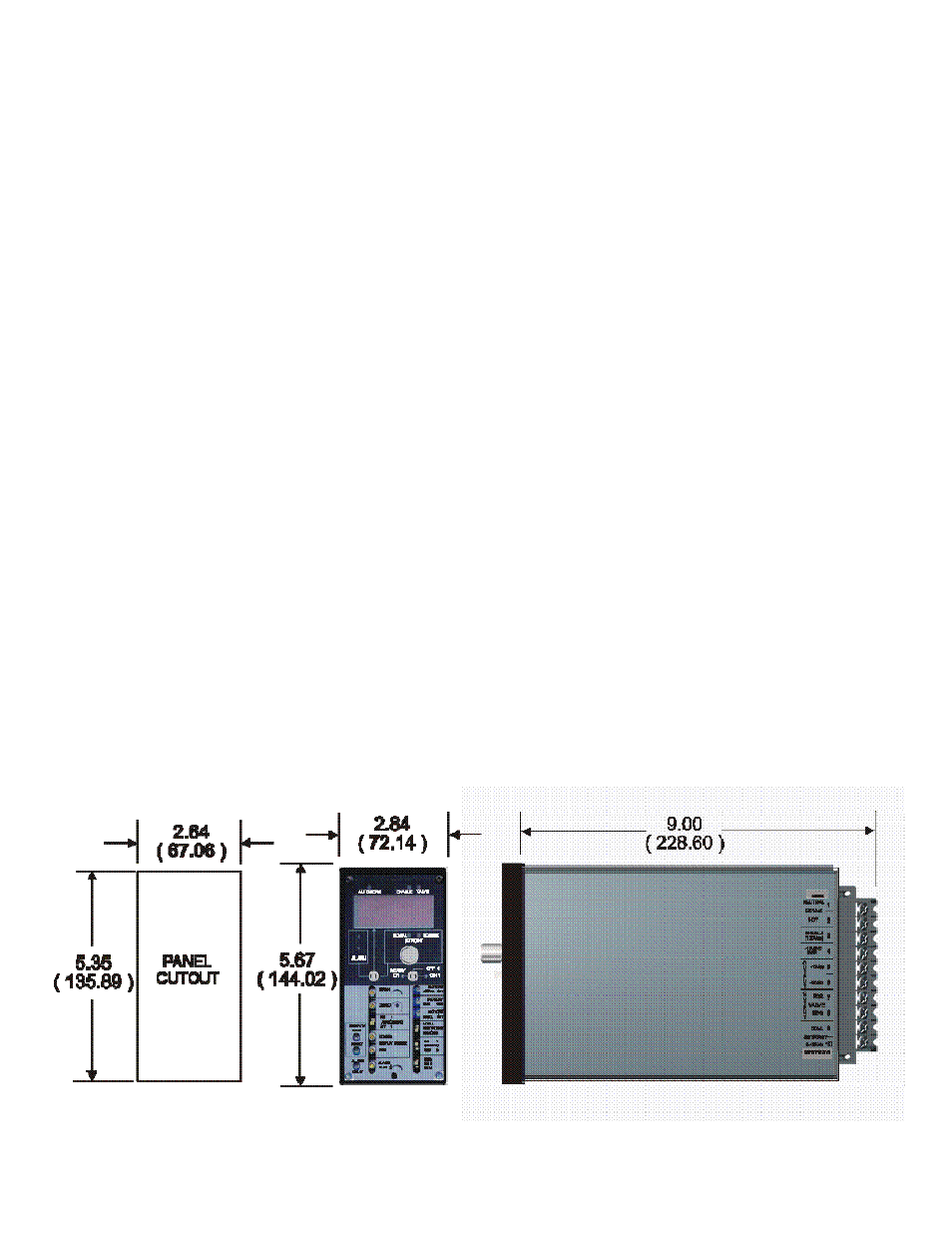

19. SPECIFICATIONS (P/N 999201.C)
