Page 3
21/09/2011 14:37
2011- 09

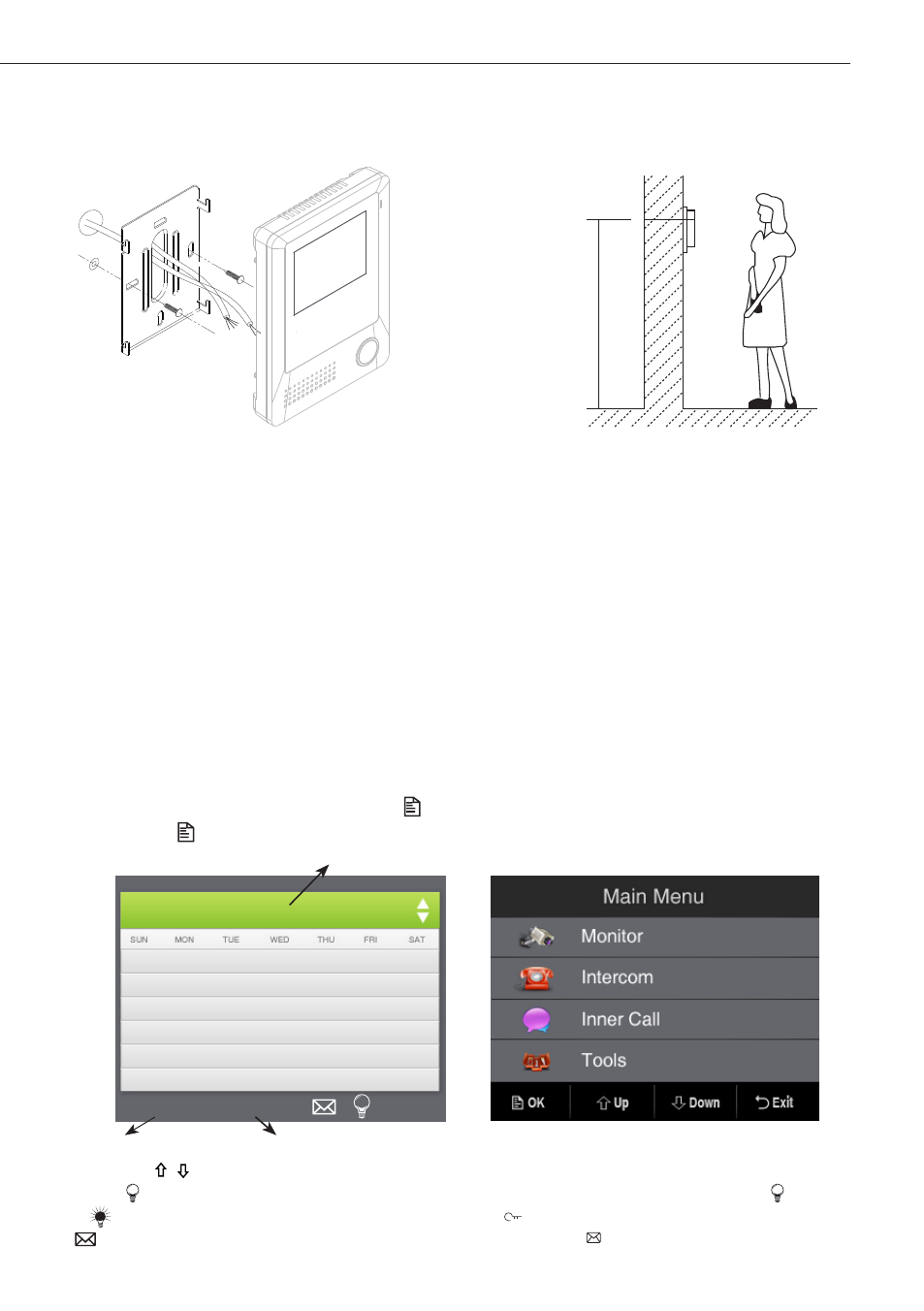

2. Monitor Mounting
3. About Main Menu
145~160 cm
Accessory fittings:
1) Mounting Bracket and special 4 core wire
2) Two screws of 4X25 are used to fasten the Mounting Bracket on the wall.
Installation steps:
■ Installation Height for indoor monitor usually is 145- 160CM (refer to sketch map)
■ Attach the screws to the wall to fix the mounting bracket.
■ Refer to the system connection section of this manual, connect wires correctly.
■ Hang the monitor firmly on the bracket.
The Main Menu is your starting point for using all the applications on your monitor.
To open the Main Menu page, tap" Menu" key,a full calendar will be shown on
screen,tap" Menu" key again,main menu will be displayed.
-2-
1
2
3
4
5
6
7
8
9
10
11
12 13
14
15 16
17
18
19
20
21
22 23
24
25
26 27
28
29 30
Current date
Current date
Current time
Note:1. Press / button to view last/next calendar
2." " this icon will be shown when the staircase light item is set to 1 or 2(refer to part 9->staircase light). If the icon " " transform
to
(should connect RLC).It means that the staircase light lights on,press Unlock button to turn off the light.
:This icon will be displayed when the recorded pictures have not been viewed,pressing on monitor can see the recorded pictures.
