HEW SEriES inStallation GUiDE

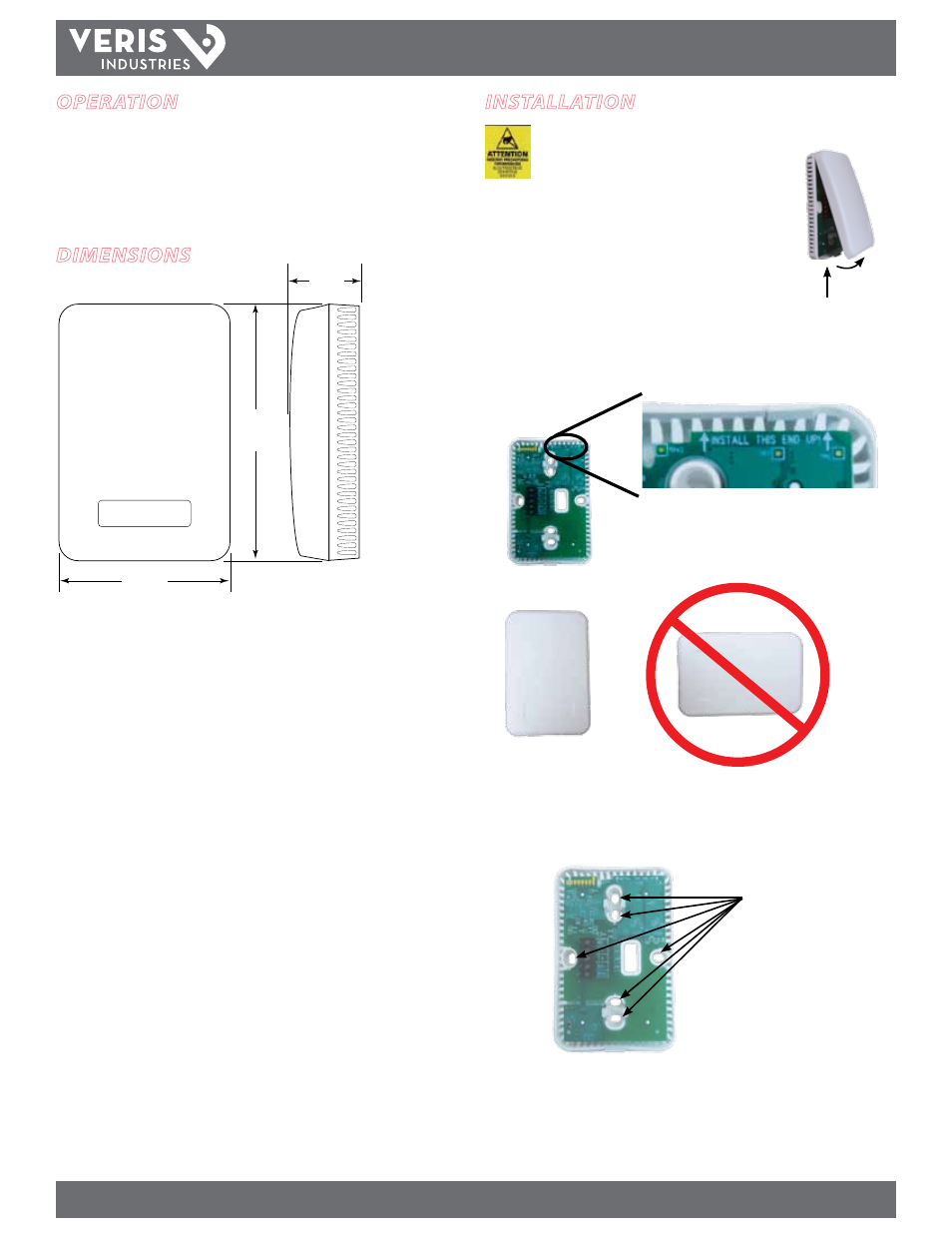

dImensIons
InstallatIon
Observe precautions for handling static sensitive
devices to avoid damage to the circuitry that
is not covered under the factory warranty.
1. Remove the cover by pressing the tab on the bottom of the
sensor while pulling outward on the bottom edge of the
cover.
3.2"
(82 mm)
1.3"
(34 mm)
4.9"
(123 mm)
2. Position the sensor vertically on the wall, 4 ½ feet (1.5 m) above the floor. Place so
that the “Install This End Up” statement on the board is in the upper right corner.
3. Mount the backplate onto the wall using the screws provided.
oPeratIon
The HEW series economy wall mount humidity sensors measure the levels of RH
and temperature (if equipped) in the air inside a room. HEWs are warranted to meet
accuracy specifications for 1 year. To maintain accurate functionality, keep all pickup
vents clear and free of dust, debris, etc.
Six screwholes available; use
a minimum of two for secure
mounting.
