Installation Guide
Accessories
AE012
TM

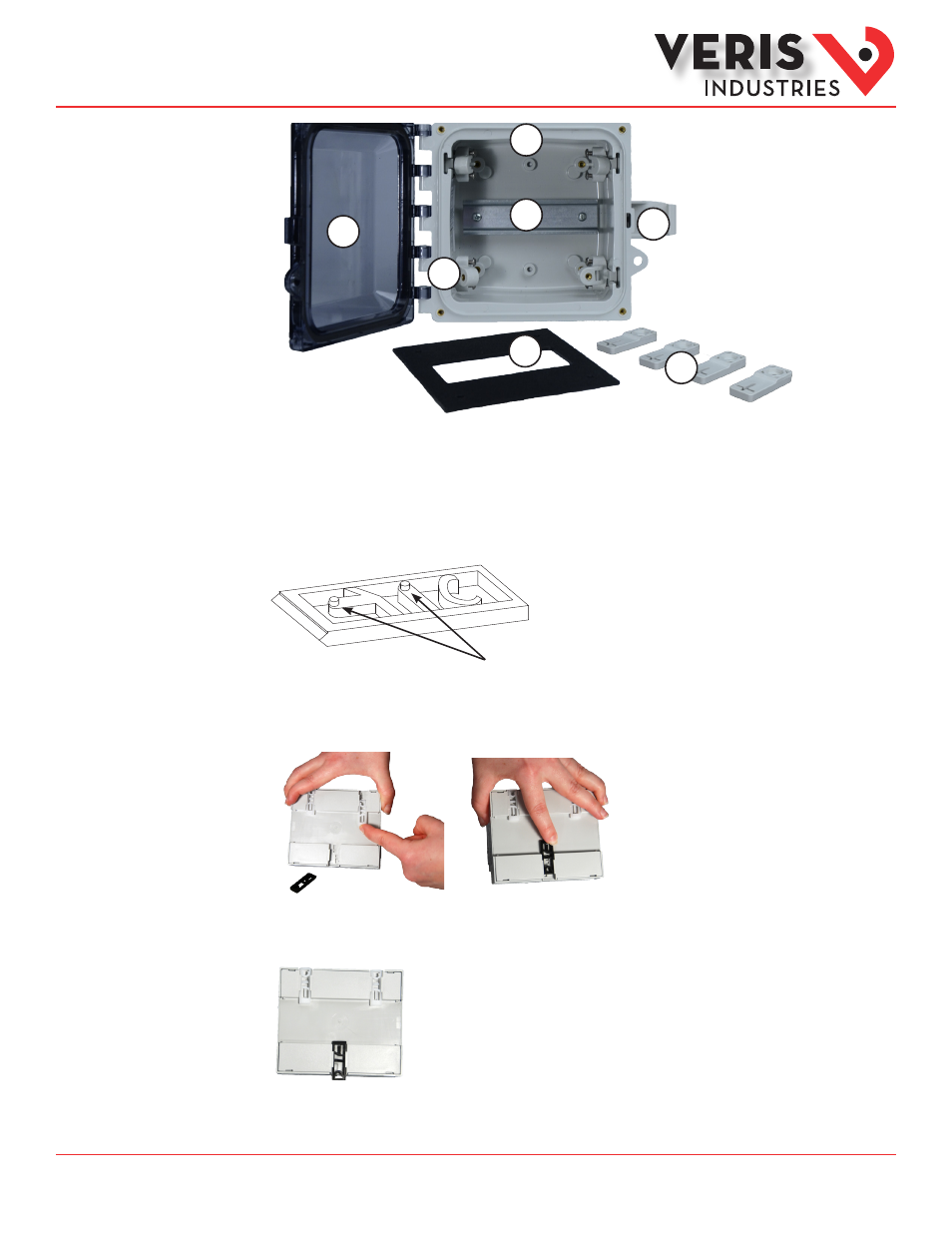

Product
Components 1. Enclosure
2. DIN rail
3. Hinged lid
4. Clasp
5. Brackets for swing panel cover
6. Swing panel cover
7. Mounting feet
(hardware not pictured)
1
2
3
5
4
Installation 1. Install DIN rail clips to the back of the E5x
The E5x is shipped with a set of three DIN rail clips included. Insert these clips into the slots on the back of the housing from the
middle, moving outward. Stopping pegs must face the underside of the housing. Push clips into place until there is an audible
click.
DIN Rail clip
(included with E5x meter)
When attaching the clips to the underside
of the E5x meter, these stopping pegs must
face inward towards the meter housing. Set
pegs into the available slots on the meter,
with the beveled side of the clip facing
toward the center of the meter.
When all clips are in place, the white clips must be flush with the top edge of the housing, and the black clip must protrude slightly
past the bottom edge.
6
7
