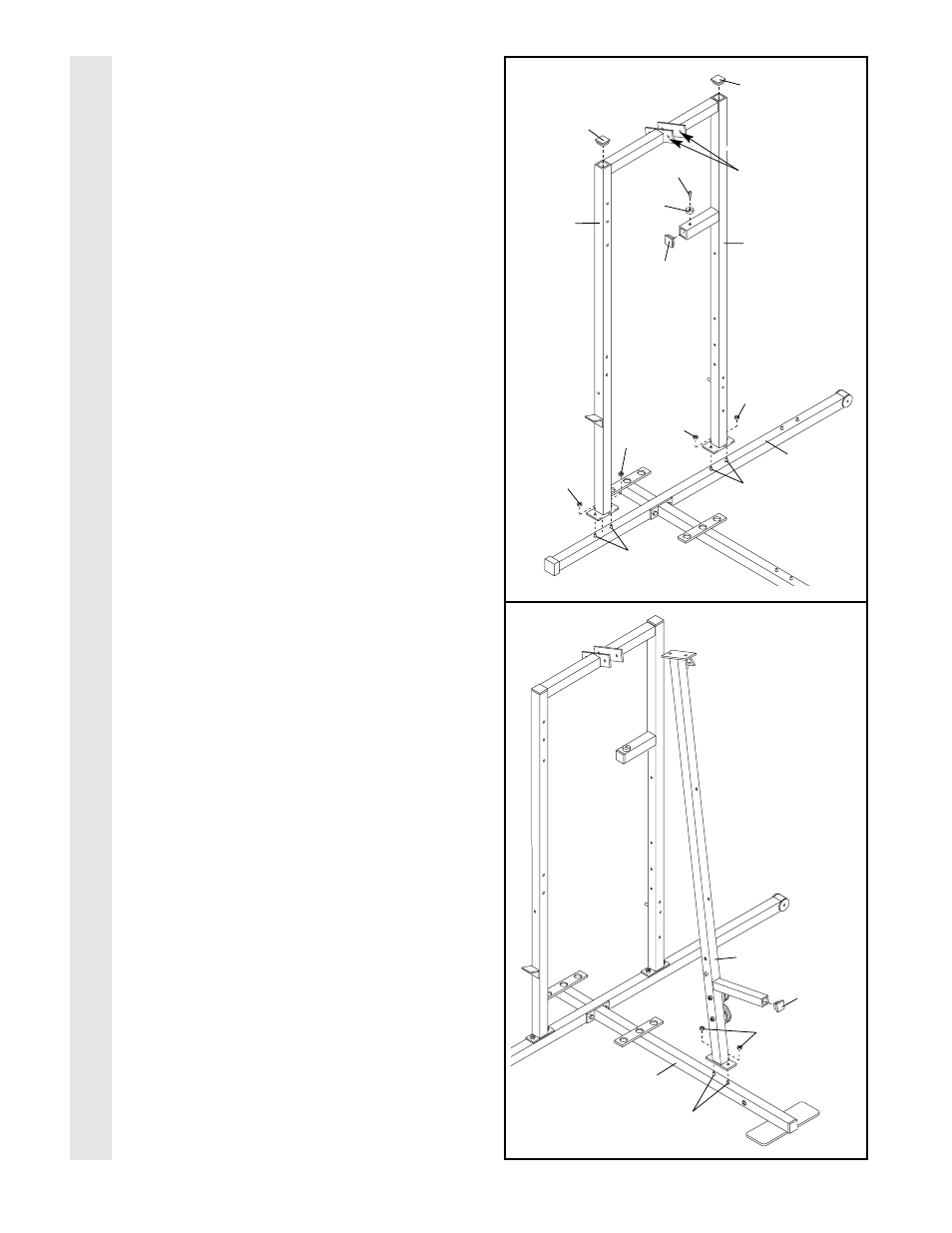

2. Slide the Assist Upright (74) and the Leg
Press Upright (56) onto the indicated M8 x
65mm Carriage Bolts (1) in the Stabilizer (5).
The high side of the brackets on the Assist
Upright and Leg Press Upright should be
on the side shown. Hand tighten four M8
Nylon Locknuts (3) onto the Carriage Bolts.
Do not tighten the Nylon Locknuts yet.
Press two 50mm Square Inner Caps (27) into
the Leg Press Upright (56). Press a 50mm
Square Inner Cap into the Assist Upright (74).
Attach the Rubber Bumper (91) to the Leg
Press Upright (56) with the M4 x 16mm Self-
tapping Screw (87).
3. Slide the Front Upright (42) onto the M8 x
65mm Carriage Bolts (1) in the Base (4).
Hand tighten an M8 Nylon Locknut (3) onto
each Carriage Bolt. Do not tighten the
Nylon Locknuts yet.
Press a 25mm Square Inner Cap (6) into the
Front Upright (42).
2
27
27
1
1
56
74
3
3
3
3
5
High Sides
of Brackets
3
FRAME ASSEMBL
Y
