CUSTOM PANEL–KITCHEN CLEANUP

Undercounter 24ÓW. Dishwasher—DFUD042/142

P L A N N I N G A N D D E S I G N G U I D E

V I K I N G R A N G E . C O M • 1 - 8 8 8 - V I K I N G 1

R E L E A S E D 1 2 / 1 / 0 7

© 2 0 0 7 V R C — INFORMATION SUBJECT TO CHANGE

Dimensions & Specifications

DFUD042/142

Overall panel width

23-1/2” (59.7 cm)

Overall panel height

29-3/4” (75.6 cm)

Overall panel depth

3/4” (1.9 cm)

Maximum panel weight

22 lbs. (9.9 kg)

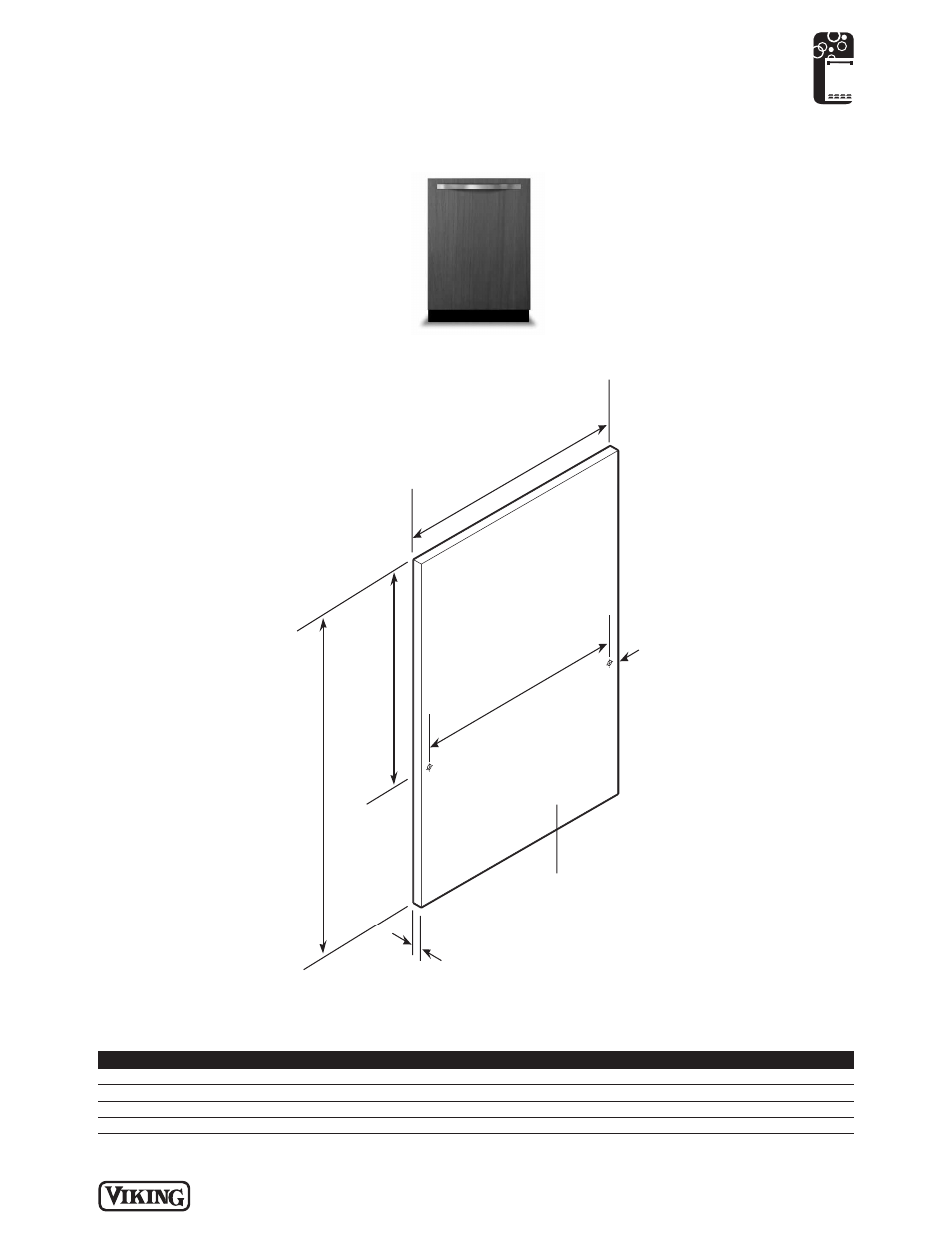

CUSTOM PANEL DIMENSIONS

DFUD042/142

Note: Check that the door can be opened at any angle. If it tends to fall down, you may need to adjust the door spring tension.
