Dayton diesel electric generator, 4w315c, Wiring diagrams – VDO Dayton 4W315C User Manual

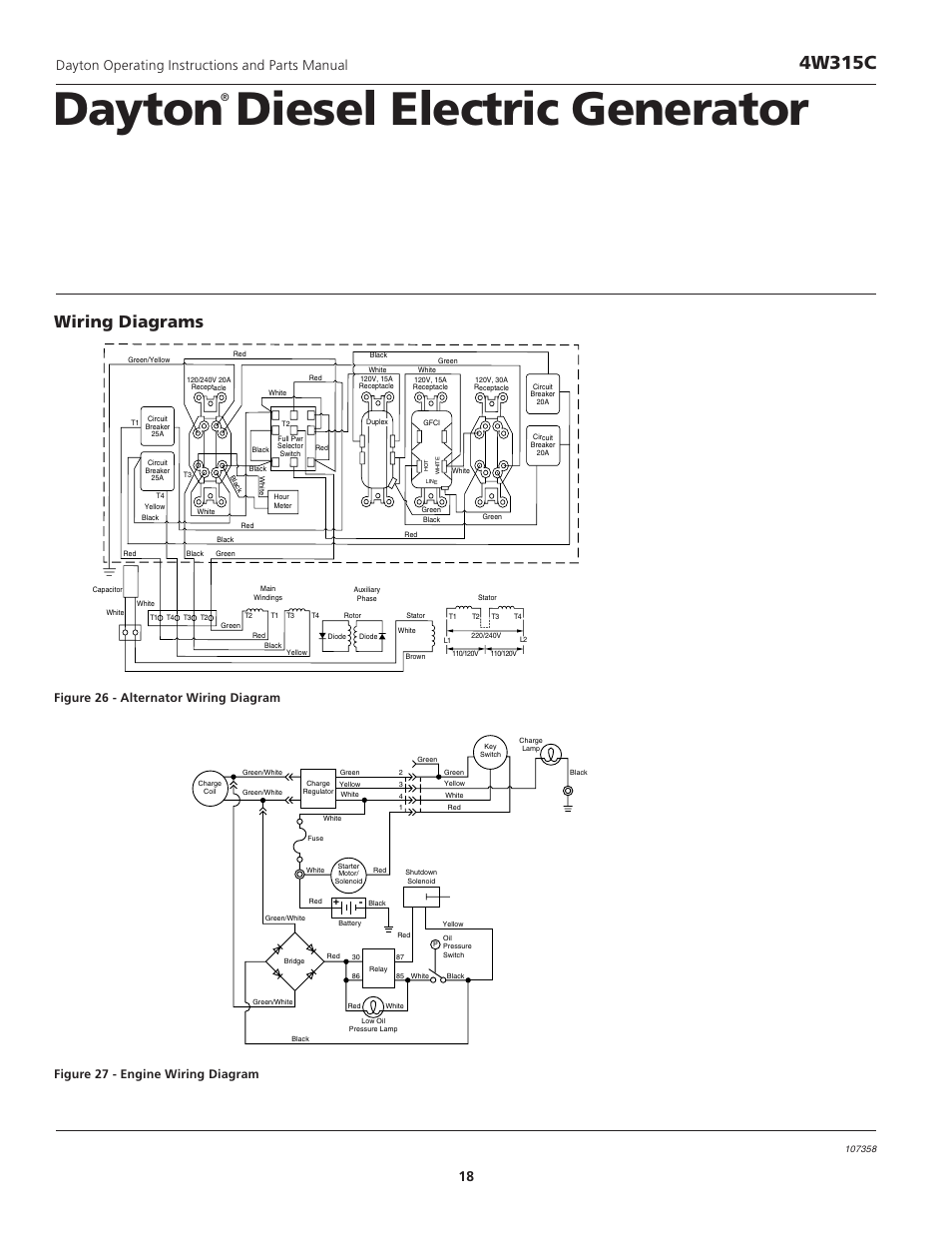

Page 18: Dayton operating instructions and parts manual 18, Figure 26 - alternator wiring diagram, Figure 27 - engine wiring diagram

Dayton diesel electric generator, 4w315c, Wiring diagrams | Dayton operating instructions and parts manual 18, Figure 26 - alternator wiring diagram, Figure 27 - engine wiring diagram | VDO Dayton 4W315C User Manual | Page 18 / 28 Dayton diesel electric generator, 4w315c, Wiring diagrams | Dayton operating instructions and parts manual 18, Figure 26 - alternator wiring diagram, Figure 27 - engine wiring diagram | VDO Dayton 4W315C User Manual | Page 18 / 28
