Computer interfaces, Rs-232 9-pin d-sub plug, External dc power / battery recharge input – Quantum Data 700 User Manual

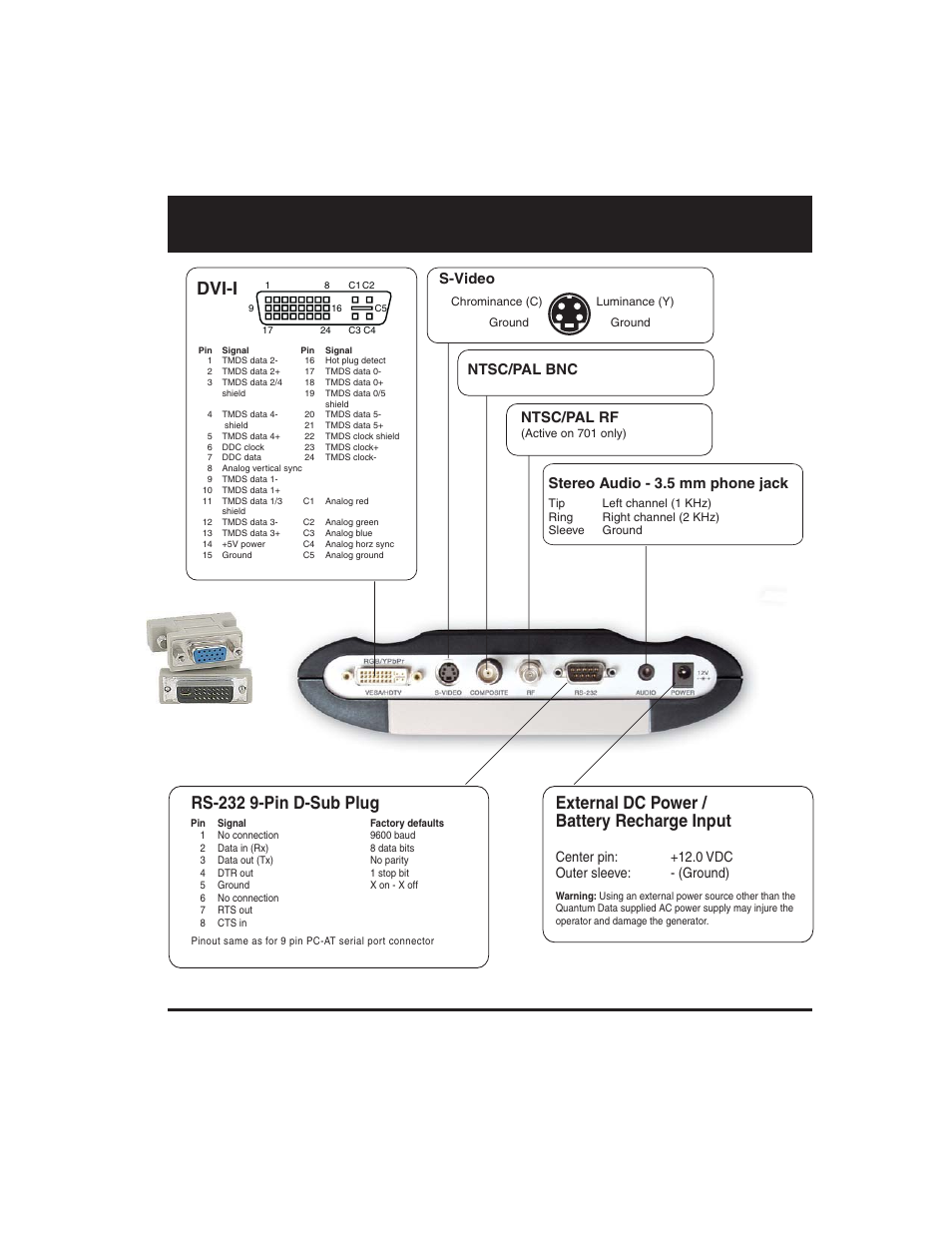

Page 3: Dvi-i, Center pin: +12.0 vdc outer sleeve: - (ground), S-video, Ntsc/pal bnc ntsc/pal rf, Stereo audio - 3.5 mm phone jack

Computer interfaces, Rs-232 9-pin d-sub plug, External dc power / battery recharge input | Dvi-i, Center pin: +12.0 vdc outer sleeve: - (ground), S-video, Ntsc/pal bnc ntsc/pal rf, Stereo audio - 3.5 mm phone jack | Quantum Data 700 User Manual | Page 3 / 26 Computer interfaces, Rs-232 9-pin d-sub plug, External dc power / battery recharge input | Dvi-i, Center pin: +12.0 vdc outer sleeve: - (ground), S-video, Ntsc/pal bnc ntsc/pal rf, Stereo audio - 3.5 mm phone jack | Quantum Data 700 User Manual | Page 3 / 26
