NATURAL GAS
VENTING WITH ONE 90° ELBOW
V (FT.)
H (FT.)
90
0
Elbow on top 2.5’ MAX. (64mm)
1' MIN. (305mm)
3' MAX. (914mm)
2' MIN. (610mm)
6' MAX. (1.83m)
3' MIN. (914mm)
9' MAX. (2.7m)
4' MIN. (1.22m)
12' MAX. (3.6m)
5’ MIN. (1.5m)
15’ MAX. (4.5m)
6’ MIN. (1.83m)
18’ MAX. (5.5m)
V + H = 50’ MAX. (15.2m)

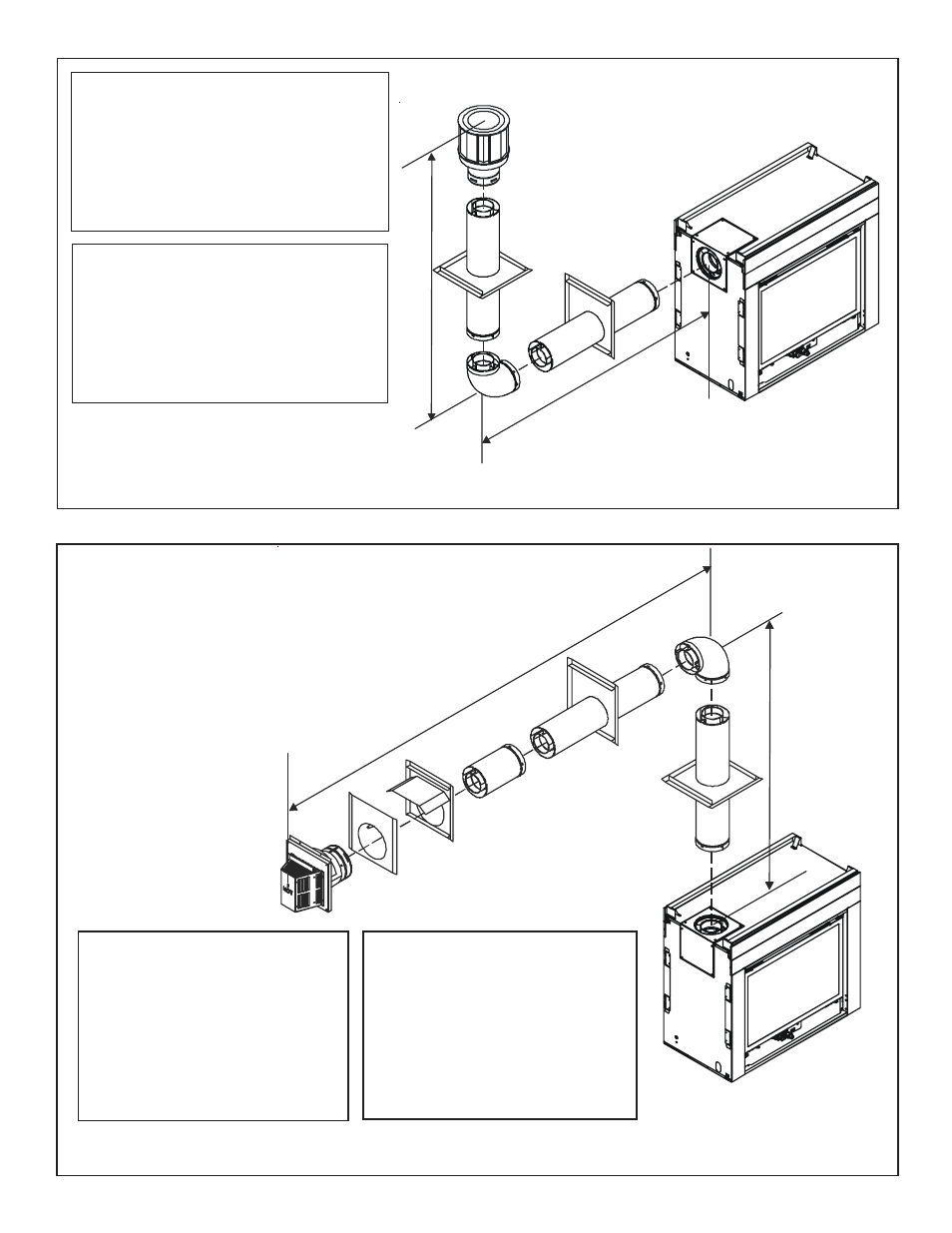

Figure 14. Venting with One 90° Elbow
Figure 13. Venting with One 90° Elbow
V
H
H
V
PROPANE
VENTING WITH ONE 90° ELBOW
V (FT.)
H (FT.)
90
0
Elbow on top 2’ MAX. (610mm)
1' MIN. (305mm)
2' MAX. (610mm)
2' MIN. (610mm)
4' MAX. (1.22m)
3' MIN. (914mm)
6’ MAX. (1.83m)
4' MIN. (1.22m)
8' MAX. (2.4m)
5’ MIN. (1.5m)
10' MAX. (3.0m)
6’ MIN. (1.83m)
12' MAX. (3.6m)
V + H = 50’ MAX. (15.2m)
NATURAL GAS - VENTING WITH ONE 90° ELBOW
V (FT.)
H (FT.)
1' MIN. (305mm)
3' MAX. (914mm)
2' MIN. (610mm)
6' MAX. (1.83m)
3' MIN. (914mm)
9' MAX. (2.7m)
4' MIN. (1.22m)
12' MAX. (3.6m)
5’ MIN. (1.5m)
15’ MAX. (4.5m)
6’ MIN. (1.83m)
18’ MAX. (5.5m)
V + H = 50’ MAX. (15.2m)
(11.3m)
PROPANE - VENTING WITH ONE 90° ELBOW
V (FT.)
H (FT.)
1' MIN. (305mm)
2' MAX. (610mm)
2' MIN. (610mm)
4' MAX. (1.22m)
3' MIN. (914mm)
6’ MAX. (1.83m)
4' MIN. (1.22m)
8' MAX. (2.4m)
5’ MIN. (1.5m)
10' MAX. (3.0m)
6’ MIN. (1.83m)
12' MAX. (3.6m)
V + H = 50’ MAX. (15.2m)
