CB 1200 Pellet Stove
3 to 3 inch Top Vent Adapter
3 to 6 inch Top Vent Offset Adapter
1. Put a layer of high temperature silicone on the 3 inch
(76mm) exhaust outlet.
2. Slide the top vent adapter onto the rear exhaust outlet
and adjust the assembly to a vertical position.
3. Drill 4 holes with #26 drill bit (provided) into the back of
the appliance using the outer shield as a pattern (make
sure the assembly is vertical). Figure 19.1
4. Install the 4 mounting screws.
5. Install the vent pipe into the top vent adapter (be sure
to silicone all joints).
6 To clean the top vent adapter, open the clean-out cover.
See Figure 19.1
B. Top Vent Adapter Installation
Installing the Top Vent Adapter
3" - 6"
Offset
Adapter
3" - 3"
Top Vent
Adapter
Drill holes in back of
stove and secure with 4
screws, 2 on each side.
Clean Out
Cover

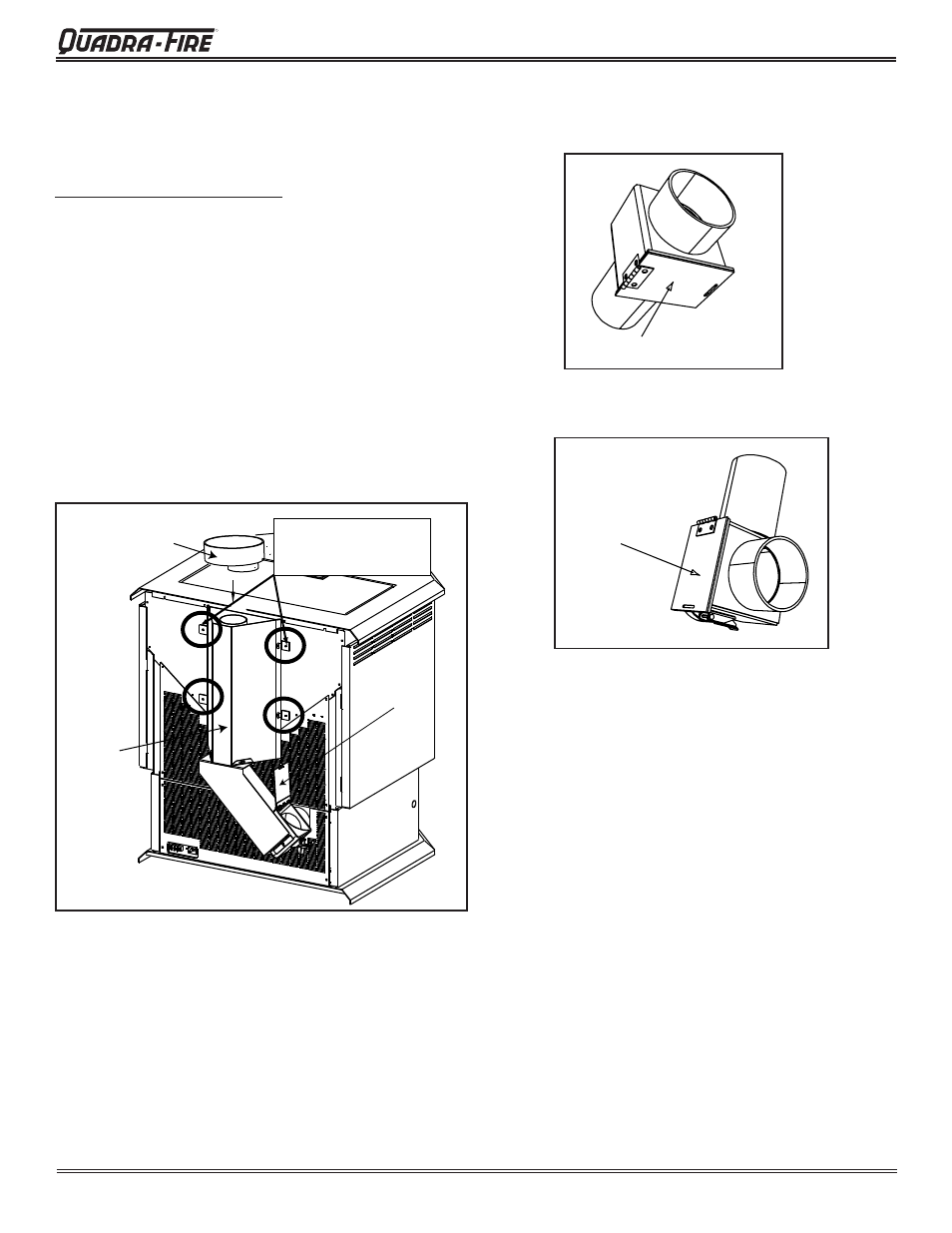

Figure 19.1
C. Rear Vent and Rear Vent to Top Vent
Adapter Installation
Clean-Out Cover
Clean-Out Cover
Figure 19.2 - Rear Vent Adapter
Figure 19.3 - Rear to Top Vent Adapter - 90o
1. Put a layer of high temperature silicone on the 3 inch
(76mm) exhaust outlet.
2. Slide the adapter onto the rear exhaust outlet and adjust
the assembly to the appropriate position.
3. Install the vent pipe into the adapter (be sure to silicone
all joints)
