7.3
PlasmaWall
Dimensions
Figure 7-1, Figure 7-2 and Figure 7-3 show the PlasmaWall dimensions (all dimensions
are in inches).

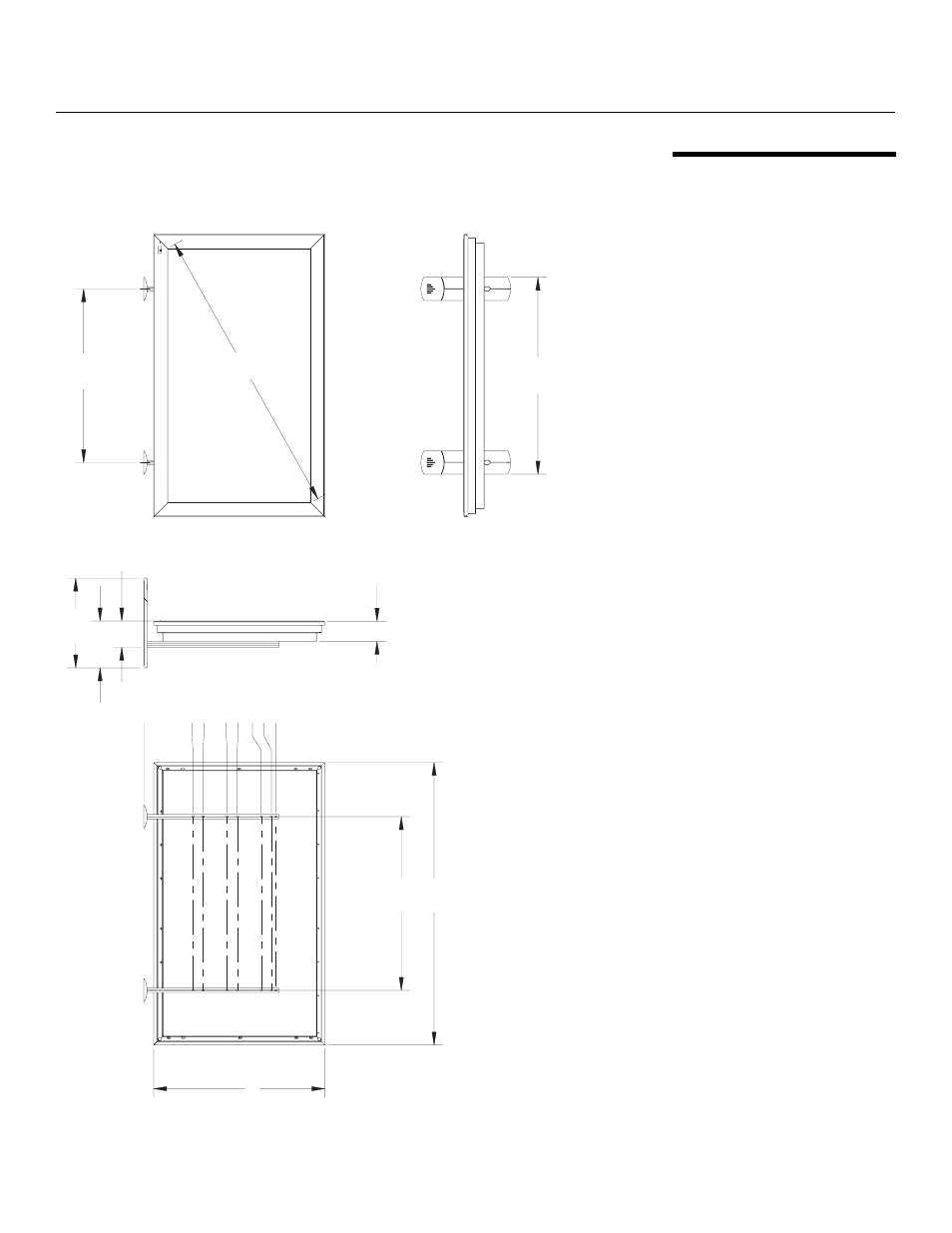

Figure 7-1. PlasmaWall Model XP-50DHD Dimensions (with Optional Table Stand)
30.000
50.420
34.000
8.122
4.566
3.490
15.500
0
8.481 10.230
14.387
16.136
20.293
22.042
22.828
30.000
48.807
29.574
