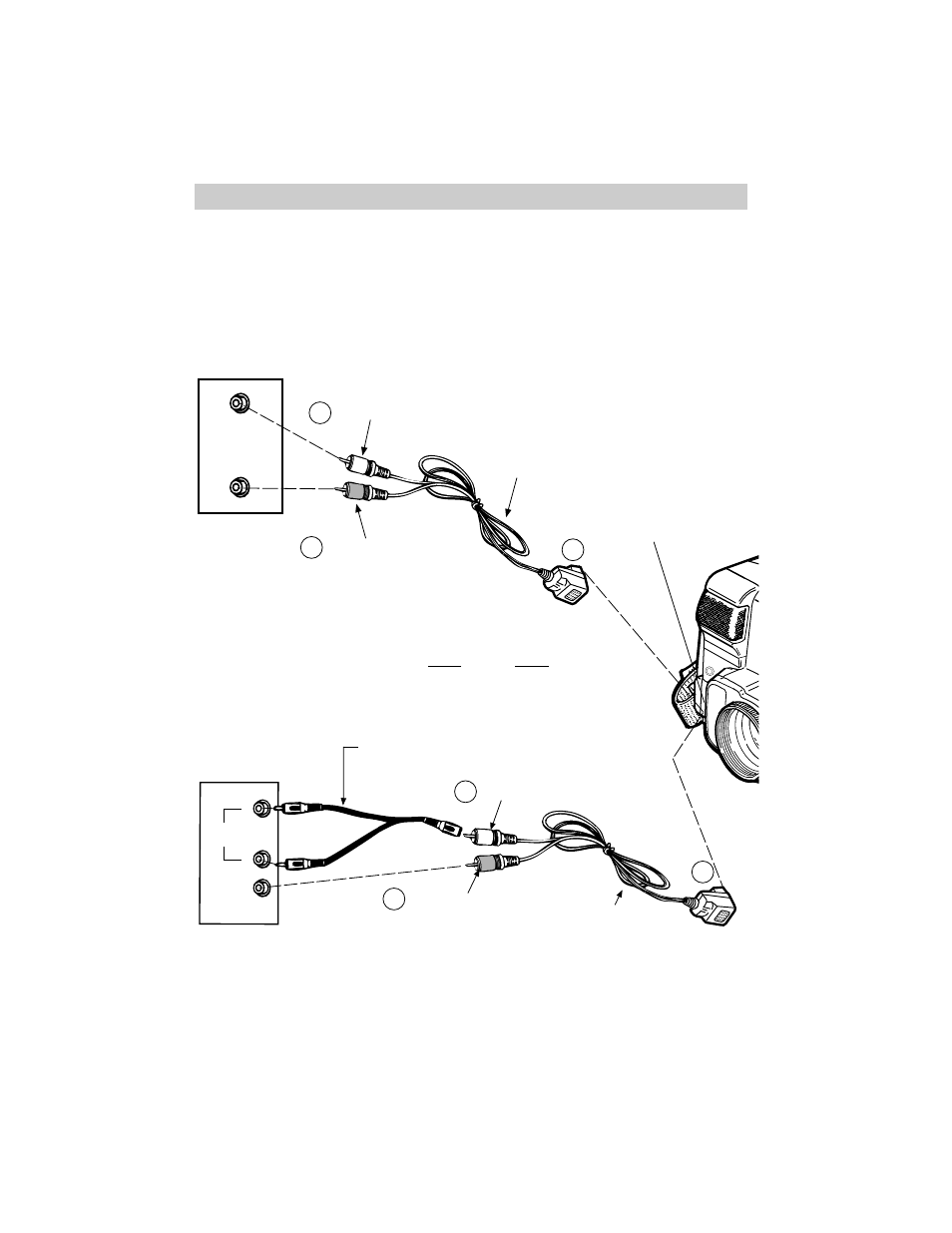

Recording on Camcorder from VCR or TV Monitor
54
AUDIO
OUT
VIDEO
OUT
Back of
Mono
VCR or
TV Monitor
White Audio Plug
Yellow Video Plug
Optional VAA009
Audio/Video
Input Cable
AUDIO
OUT
VIDEO
OUT
L
R
Yellow Video Plug
White Audio Plug
Y-Adapter
(available from electronics
supply store)
Optional VAA009
Audio/Video
Input Cable
or
Back of
Stereo
VCR or
TV Monitor
1
1
2
2
3
3
AV (Audio/Video) IN/OUT
Connector (located
behind small cover)
To connect your camcorder to a TV (or
VCR) with AUDIO and VIDEO OUT
jacks, you will need an optional VAA009
audio/video input cable shown on page 3.
If your TV is already connected to a
VCR, you can attach the camcorder to the
VCR and watch what the camcorder is
recording on the TV.
(continued on next page)
